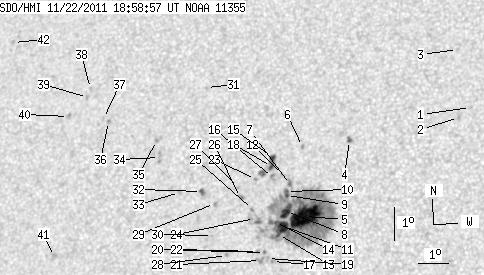

SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.03 | 360.38 | 37.67 | 197.16 | 14.14 | 252.11 | -22.30 | 59.86 | 0.4270 | -577.6 | -394.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.87 | 17.26 | 257.99 | -16.42 | 45.53 | 0.3799 | -907.0 | -596.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 16.95 | 257.63 | -16.78 | 46.75 | 0.3808 | -866.0 | -589.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 19.05 | 257.39 | -17.02 | 43.17 | 0.4061 | -735.0 | -589.1 | |
| 1.28 | 2.57 | 0.70 | 1.40 | 16.21 | 254.15 | -20.26 | 53.29 | 0.4165 | 829.1 | 800.1 | |
| 38.03 | 277.96 | 20.68 | 151.24 | 13.89 | 252.91 | -21.50 | 59.60 | 0.4142 | -1358.9 | -492.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 16.01 | 252.62 | -21.79 | 55.54 | 0.4345 | 956.0 | 684.6 | |
| 0.00 | 4.20 | 0.00 | 2.30 | 14.85 | 252.35 | -22.06 | 58.18 | 0.4290 | -978.0 | -604.5 | |
| 9.85 | -5.00 | 5.38 | -5.00 | 14.03 | 252.31 | -22.10 | 59.94 | 0.4236 | -892.0 | 999999 | |
| 1.46 | -5.00 | 0.80 | -5.00 | 14.52 | 252.26 | -22.15 | 58.98 | 0.4278 | -562.2 | 999999 | |
| 0.26 | -5.00 | 0.14 | -5.00 | 14.64 | 252.24 | -22.16 | 58.74 | 0.4288 | -748.7 | 999999 | |
| 8.82 | -5.00 | 4.81 | -5.00 | 13.58 | 252.25 | -22.15 | 60.96 | 0.4211 | -1032.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 15.15 | 252.06 | -22.35 | 57.89 | 0.4352 | -691.0 | -564.3 | |
| 1.03 | -5.00 | 0.56 | -5.00 | 13.33 | 252.11 | -22.29 | 61.63 | 0.4214 | -735.8 | 999999 | |
| 1.20 | -5.00 | 0.66 | -5.00 | 13.69 | 251.98 | -22.43 | 60.99 | 0.4257 | -675.4 | 999999 | |
| 2.48 | 12.51 | 1.37 | 6.90 | 15.66 | 251.66 | -22.74 | 57.28 | 0.4444 | 548.5 | -513.7 | |
| 0.00 | 3.26 | 0.00 | 1.79 | 15.06 | 251.73 | -22.67 | 58.42 | 0.4388 | -632.0 | -675.9 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 12.52 | 251.99 | -22.41 | 63.52 | 0.4177 | -748.0 | -541.0 | |
| 2.31 | -15.00 | 1.28 | -15.00 | 15.39 | 251.66 | -22.75 | 57.83 | 0.4423 | -682.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 12.61 | 251.82 | -22.59 | 63.49 | 0.4207 | -868.0 | -713.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 12.79 | 251.71 | -22.70 | 63.20 | 0.4235 | -984.0 | -827.6 | |
| 0.00 | 4.71 | 0.00 | 2.57 | 12.54 | 251.60 | -22.81 | 63.83 | 0.4235 | -708.0 | -530.3 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 12.81 | 251.47 | -22.94 | 63.36 | 0.4269 | -535.0 | -455.6 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 14.99 | 251.18 | -23.23 | 59.13 | 0.4458 | -902.0 | -639.8 | |
| 0.00 | 9.77 | 0.00 | 5.37 | 13.81 | 251.27 | -23.14 | 61.44 | 0.4363 | -367.0 | -471.4 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 14.08 | 251.18 | -23.23 | 60.97 | 0.4394 | -716.0 | -594.8 | |
| 0.00 | 2.23 | 0.00 | 1.23 | 14.44 | 250.74 | -23.67 | 60.66 | 0.4479 | -784.0 | -663.5 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 14.74 | 250.64 | -23.77 | 60.15 | 0.4513 | -660.0 | -567.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 12.68 | 250.46 | -23.95 | 64.54 | 0.4405 | 850.0 | 746.9 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 14.24 | 249.89 | -24.52 | 61.83 | 0.4582 | 840.0 | 737.6 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 13.27 | 249.93 | -24.48 | 63.75 | 0.4515 | 764.0 | 540.1 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 17.78 | 249.15 | -25.26 | 55.88 | 0.4929 | -812.0 | -694.5 | |
| 2.31 | 3.00 | 1.29 | 1.68 | 14.60 | 249.41 | -25.00 | 61.55 | 0.4671 | 875.1 | 838.9 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 14.56 | 248.67 | -25.74 | 62.25 | 0.4769 | 749.0 | 526.4 | |
| 0.00 | 3.51 | 0.00 | 2.00 | 15.61 | 247.85 | -26.56 | 60.95 | 0.4947 | 861.0 | 730.0 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 16.13 | 247.67 | -26.74 | 60.16 | 0.5004 | 929.0 | 749.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 16.68 | 245.91 | -28.50 | 60.57 | 0.5269 | 977.0 | 802.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 16.77 | 245.72 | -28.69 | 60.57 | 0.5299 | 544.0 | 505.9 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 17.68 | 245.10 | -29.31 | 59.49 | 0.5435 | 770.0 | 652.4 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 17.41 | 245.04 | -29.37 | 59.99 | 0.5425 | 703.0 | 592.1 | |
| 0.00 | 2.40 | 0.00 | 1.42 | 16.81 | 244.47 | -29.94 | 61.41 | 0.5463 | 690.0 | 572.7 | |
| 0.00 | 2.91 | 0.00 | 1.69 | 12.56 | 244.62 | -29.79 | 68.80 | 0.5223 | 766.0 | 593.7 | |
| 0.00 | 1.46 | 0.00 | 0.89 | 19.05 | 242.02 | -32.39 | 59.46 | 0.5901 | 689.0 | 563.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
