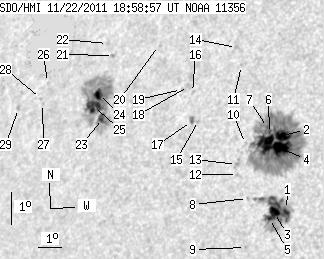

SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.01 | 443.71 | 55.29 | 306.44 | 14.72 | 231.65 | -42.76 | 70.69 | 0.6965 | -426.3 | -179.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 66.56 | 0.17 | 43.61 | 12.71 | 234.94 | -39.47 | 72.64 | 0.6520 | -190.7 | -288.4 | |
| 10.62 | 239.33 | 7.04 | 158.86 | 14.94 | 234.32 | -40.09 | 69.54 | 0.6664 | -1102.2 | -422.2 | |
| 6.94 | -1.00 | 4.55 | -1.00 | 12.61 | 234.48 | -39.93 | 72.93 | 0.6575 | -936.4 | 999999 | |
| 34.95 | -2.00 | 23.23 | -2.00 | 14.63 | 234.03 | -40.38 | 70.10 | 0.6690 | -1048.9 | 999999 | |
| 1.71 | -1.00 | 1.13 | -1.00 | 12.42 | 234.32 | -40.09 | 73.26 | 0.6591 | -695.8 | 999999 | |
| 1.37 | -2.00 | 0.92 | -2.00 | 14.99 | 233.79 | -40.62 | 69.66 | 0.6731 | -754.4 | 999999 | |
| 1.37 | -2.00 | 0.92 | -2.00 | 15.17 | 233.66 | -40.75 | 69.44 | 0.6752 | -348.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.92 | 13.01 | 233.32 | -41.08 | 72.69 | 0.6730 | -580.0 | -448.2 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 11.53 | 233.52 | -40.89 | 74.80 | 0.6669 | 790.0 | 700.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 14.66 | 232.88 | -41.53 | 70.43 | 0.6830 | -395.0 | -295.6 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 17.03 | 232.11 | -42.30 | 67.36 | 0.6996 | -449.0 | -481.1 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 13.72 | 232.77 | -41.64 | 71.82 | 0.6818 | -660.0 | -503.9 | |
| 0.00 | 3.77 | 0.00 | 2.55 | 14.02 | 232.66 | -41.75 | 71.42 | 0.6839 | -513.0 | -413.8 | |
| 0.00 | 1.37 | 0.00 | 0.96 | 17.58 | 231.74 | -42.67 | 66.75 | 0.7056 | -604.0 | -506.6 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 15.32 | 230.76 | -43.65 | 70.18 | 0.7100 | -556.0 | -467.6 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 16.16 | 230.27 | -44.14 | 69.18 | 0.7180 | -570.0 | -511.0 | |
| 0.43 | 2.91 | 0.30 | 2.05 | 15.28 | 230.47 | -43.94 | 70.32 | 0.7133 | -759.6 | -673.1 | |
| 0.00 | 2.31 | 0.00 | 1.65 | 16.34 | 230.05 | -44.36 | 69.00 | 0.7210 | -550.0 | -474.8 | |
| 0.00 | 1.20 | 0.00 | 0.86 | 16.24 | 229.77 | -44.64 | 69.22 | 0.7239 | -391.0 | -360.3 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 17.56 | 228.34 | -46.06 | 67.90 | 0.7433 | -428.0 | -436.0 | |
| 0.00 | 1.71 | 0.00 | 1.31 | 17.21 | 226.41 | -48.00 | 68.92 | 0.7631 | -612.0 | -513.0 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 17.57 | 226.00 | -48.41 | 68.57 | 0.7683 | -555.0 | -460.9 | |
| 5.14 | 111.44 | 3.88 | 84.98 | 15.28 | 226.53 | -47.88 | 71.39 | 0.7574 | 745.2 | 377.1 | |
| 5.48 | -23.00 | 4.19 | -23.00 | 16.00 | 226.11 | -48.30 | 70.55 | 0.7634 | 990.8 | 999999 | |
| 11.74 | -23.00 | 8.96 | -23.00 | 15.63 | 226.00 | -48.41 | 71.06 | 0.7638 | 744.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 16.31 | 223.57 | -50.84 | 70.76 | 0.7904 | -334.0 | -276.2 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 15.66 | 223.56 | -50.85 | 71.57 | 0.7894 | -285.0 | -232.1 | |
| 0.00 | 1.03 | 0.00 | 0.83 | 15.81 | 223.41 | -51.00 | 71.42 | 0.7912 | -273.0 | -206.9 | |
| 0.00 | 1.54 | 0.00 | 1.27 | 15.48 | 222.43 | -51.98 | 72.03 | 0.8004 | 558.0 | 494.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
