SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.18 | 115.51 | 21.18 | 75.77 | 17.97 | 312.78 | 38.37 | 295.63 | 0.6568 | -251.5 | 16.8 | |
|
previous
or next observation for the same group /

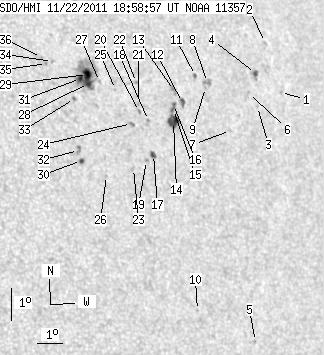

back to the solar disc SDO HMI 2011-11-22 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.74 | 18.06 | 318.89 | 44.48 | 293.27 | 0.7275 | -445.0 | -414.0 | |
| 0.00 | 1.28 | 0.00 | 0.93 | 19.62 | 318.76 | 44.35 | 295.38 | 0.7311 | -527.0 | -430.3 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 17.66 | 317.77 | 43.36 | 293.11 | 0.7137 | -582.0 | -503.4 | |
| 1.28 | 4.11 | 0.91 | 2.92 | 18.67 | 318.00 | 43.59 | 294.40 | 0.7196 | -750.2 | -559.2 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 10.55 | 316.04 | 41.63 | 283.57 | 0.6742 | -642.0 | -547.0 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 18.06 | 317.51 | 43.10 | 293.76 | 0.7121 | -559.0 | -494.0 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 16.95 | 316.42 | 42.01 | 292.62 | 0.6959 | -643.0 | -498.9 | |
| 0.00 | 4.03 | 0.00 | 2.76 | 18.44 | 315.89 | 41.48 | 294.89 | 0.6950 | -809.0 | -596.9 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 18.29 | 315.76 | 41.35 | 294.74 | 0.6930 | -699.0 | -502.7 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 11.53 | 313.89 | 39.48 | 285.58 | 0.6491 | -618.0 | -488.2 | |
| 1.28 | 1.80 | 0.88 | 1.23 | 18.67 | 315.45 | 41.05 | 295.38 | 0.6910 | -636.9 | -512.0 | |
| 1.54 | 3.43 | 1.04 | 2.30 | 17.85 | 314.69 | 40.28 | 294.56 | 0.6789 | -711.4 | -555.2 | |
| 0.00 | 3.60 | 0.00 | 2.42 | 18.22 | 314.46 | 40.05 | 295.19 | 0.6778 | -875.0 | -715.2 | |
| 10.02 | 15.59 | 6.67 | 10.39 | 17.27 | 314.17 | 39.76 | 293.96 | 0.6706 | -840.5 | -716.1 | |
| 2.06 | -14.00 | 1.37 | -14.00 | 17.64 | 314.26 | 39.85 | 294.44 | 0.6732 | -852.2 | 999999 | |
| 0.51 | -14.00 | 0.34 | -14.00 | 17.79 | 314.30 | 39.89 | 294.65 | 0.6742 | -855.8 | 999999 | |
| 2.91 | 3.43 | 1.90 | 2.24 | 16.28 | 313.12 | 38.71 | 292.96 | 0.6543 | -685.4 | -593.0 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 17.32 | 313.17 | 38.77 | 294.46 | 0.6590 | 573.0 | 397.4 | |
| 0.00 | 1.46 | 0.00 | 0.95 | 16.10 | 312.80 | 38.39 | 292.83 | 0.6497 | -849.0 | -722.6 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 17.61 | 312.89 | 38.48 | 295.00 | 0.6567 | 591.0 | 433.0 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 17.85 | 312.91 | 38.50 | 295.35 | 0.6580 | 499.0 | 386.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 18.50 | 313.00 | 38.59 | 296.24 | 0.6618 | -653.0 | -521.7 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 15.87 | 312.24 | 37.83 | 292.72 | 0.6419 | -676.0 | -511.0 | |
| 0.00 | 2.48 | 0.00 | 1.62 | 17.25 | 312.48 | 38.07 | 294.66 | 0.6503 | -839.0 | -642.1 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 18.30 | 312.11 | 37.70 | 296.37 | 0.6504 | 491.0 | 317.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 15.68 | 311.15 | 36.74 | 292.91 | 0.6276 | -742.0 | -627.9 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 18.56 | 311.55 | 37.14 | 297.03 | 0.6449 | 469.0 | 383.4 | |
| 2.91 | 49.43 | 1.87 | 31.80 | 18.51 | 311.11 | 36.70 | 297.18 | 0.6393 | 761.1 | 453.5 | |
| 5.31 | -28.00 | 3.42 | -28.00 | 18.79 | 311.14 | 36.73 | 297.57 | 0.6410 | 993.1 | 999999 | |
| 1.88 | 2.23 | 1.19 | 1.40 | 16.15 | 310.29 | 35.88 | 294.04 | 0.6188 | 796.3 | 570.5 | |
| 2.48 | -28.00 | 1.59 | -28.00 | 18.67 | 310.83 | 36.43 | 297.56 | 0.6368 | 1089.3 | 999999 | |
| 0.00 | 3.26 | 0.00 | 2.05 | 16.46 | 310.24 | 35.84 | 294.54 | 0.6195 | 735.0 | 658.6 | |
| 0.00 | 1.63 | 0.00 | 1.03 | 18.06 | 310.45 | 36.04 | 296.85 | 0.6293 | 745.0 | 559.1 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 19.22 | 309.89 | 35.48 | 298.89 | 0.6282 | -578.0 | -475.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 19.16 | 309.64 | 35.23 | 298.94 | 0.6250 | -742.0 | -569.9 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 19.35 | 309.50 | 35.09 | 299.31 | 0.6242 | -787.0 | -694.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
