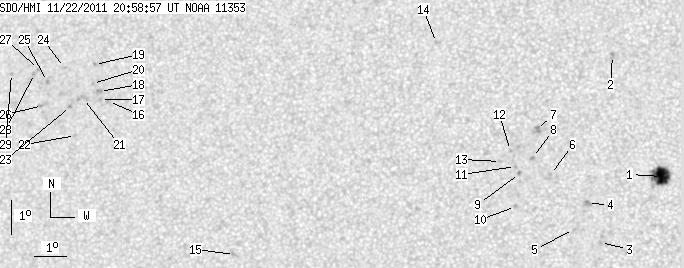

SDO HMI 2011-11-22 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 80.51 | 10.73 | 41.81 | 8.66 | 259.33 | -13.97 | 58.87 | 0.2691 | -379.1 | -102.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.42 | 28.87 | 10.73 | 14.46 | 7.77 | 266.91 | -6.39 | 47.48 | 0.1504 | -1210.7 | -633.6 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 11.37 | 265.35 | -7.95 | 39.65 | 0.2136 | -858.0 | -779.3 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 5.80 | 265.11 | -8.20 | 64.68 | 0.1577 | -984.0 | -730.6 | |
| 0.00 | 4.37 | 0.00 | 2.20 | 6.95 | 264.70 | -8.61 | 59.58 | 0.1731 | -1048.0 | -802.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 6.18 | 264.29 | -9.02 | 64.65 | 0.1732 | -735.0 | -573.7 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.81 | 263.56 | -9.74 | 58.63 | 0.1973 | -870.0 | -660.4 | |
| 0.00 | 4.28 | 0.00 | 2.17 | 9.15 | 263.10 | -10.20 | 54.35 | 0.2163 | -835.0 | -828.8 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 8.31 | 263.00 | -10.30 | 57.90 | 0.2099 | -1112.0 | -948.8 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 7.83 | 262.62 | -10.69 | 60.78 | 0.2114 | -1116.0 | -919.7 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 6.85 | 262.52 | -10.78 | 65.23 | 0.2055 | -913.0 | -691.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 8.04 | 262.49 | -10.81 | 60.21 | 0.2150 | -969.0 | -698.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.52 | 262.32 | -10.98 | 58.68 | 0.2215 | -915.0 | -684.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 8.19 | 262.03 | -11.27 | 60.62 | 0.2231 | -774.0 | -681.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 11.73 | 259.92 | -13.38 | 53.05 | 0.2848 | -877.0 | -709.4 | |
| 0.00 | 2.23 | 0.00 | 1.17 | 5.35 | 253.89 | -19.41 | 79.57 | 0.3380 | -777.0 | -554.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 9.85 | 249.60 | -23.70 | 70.54 | 0.4219 | 812.0 | 662.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 9.91 | 249.33 | -23.97 | 70.59 | 0.4261 | 794.0 | 638.6 | |
| 0.00 | 2.83 | 0.00 | 1.55 | 10.15 | 249.28 | -24.02 | 70.09 | 0.4280 | 1014.0 | 859.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.95 | 249.05 | -24.25 | 68.47 | 0.4354 | 958.0 | 769.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 10.38 | 249.03 | -24.27 | 69.74 | 0.4328 | 823.0 | 674.1 | |
| 0.00 | 5.23 | 0.00 | 2.87 | 9.93 | 248.77 | -24.53 | 70.91 | 0.4346 | 758.0 | 648.0 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 8.82 | 248.59 | -24.71 | 73.49 | 0.4327 | 651.0 | 536.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 9.69 | 248.36 | -24.94 | 71.71 | 0.4397 | 854.0 | 700.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.85 | 248.06 | -25.24 | 69.39 | 0.4494 | 644.0 | 539.5 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 10.42 | 247.53 | -25.77 | 70.63 | 0.4552 | 937.0 | 698.8 | |
| 0.00 | 2.66 | 0.00 | 1.47 | 9.70 | 247.43 | -25.88 | 72.22 | 0.4537 | 746.0 | 593.5 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 10.78 | 247.20 | -26.10 | 70.10 | 0.4616 | 682.0 | 561.4 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 10.65 | 247.08 | -26.23 | 70.42 | 0.4629 | 644.0 | 594.9 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 10.64 | 246.30 | -27.00 | 70.91 | 0.4742 | 775.0 | 518.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
