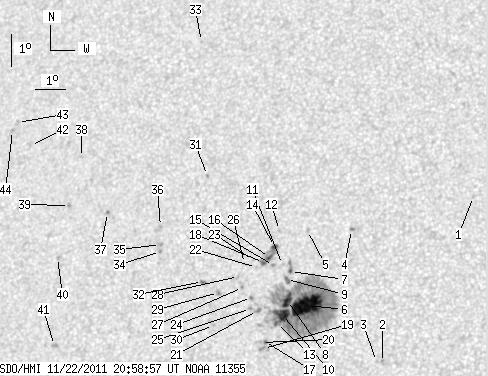

SDO HMI 2011-11-22 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.05 | 359.44 | 37.40 | 195.26 | 14.16 | 252.07 | -21.24 | 58.68 | 0.4126 | -572.8 | -393.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.27 | 258.01 | -15.30 | 43.55 | 0.3672 | -804.0 | -527.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 12.20 | 255.50 | -17.81 | 59.06 | 0.3500 | -716.0 | -674.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 12.23 | 255.30 | -18.00 | 59.24 | 0.3530 | -694.0 | -501.8 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 16.22 | 254.16 | -19.15 | 51.79 | 0.4026 | 957.0 | 827.5 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 16.17 | 252.72 | -20.58 | 53.77 | 0.4204 | 836.0 | 649.2 | |
| 37.69 | 277.30 | 20.34 | 149.77 | 13.89 | 252.92 | -20.39 | 58.33 | 0.3991 | -1374.5 | -492.5 | |
| 1.20 | 4.37 | 0.65 | 2.38 | 14.92 | 252.29 | -21.01 | 56.86 | 0.4156 | -807.1 | -735.1 | |
| 7.97 | -6.00 | 4.32 | -6.00 | 14.04 | 252.28 | -21.02 | 58.74 | 0.4089 | -918.0 | 999999 | |
| 0.00 | 4.03 | 0.00 | 2.19 | 14.67 | 252.19 | -21.12 | 57.49 | 0.4151 | -796.0 | -719.8 | |
| 12.51 | -6.00 | 6.78 | -6.00 | 13.61 | 252.16 | -21.14 | 59.80 | 0.4074 | -960.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 15.13 | 252.01 | -21.30 | 56.75 | 0.4210 | -686.0 | -497.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 16.16 | 251.79 | -21.51 | 54.91 | 0.4322 | 555.0 | 416.5 | |
| 1.63 | -6.00 | 0.88 | -6.00 | 13.34 | 251.99 | -21.31 | 60.59 | 0.4078 | -665.8 | 999999 | |
| 2.48 | 18.93 | 1.36 | 10.37 | 15.67 | 251.68 | -21.62 | 56.01 | 0.4297 | 502.0 | -356.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 15.09 | 251.71 | -21.59 | 57.16 | 0.4247 | -876.0 | -773.3 | |
| 1.80 | -14.00 | 0.99 | -14.00 | 15.33 | 251.56 | -21.75 | 56.84 | 0.4287 | -770.9 | 999999 | |
| 0.34 | 1.37 | 0.19 | 0.74 | 12.79 | 251.65 | -21.66 | 62.16 | 0.4088 | -947.2 | -791.1 | |
| 2.06 | -14.00 | 1.13 | -14.00 | 15.18 | 251.37 | -21.93 | 57.36 | 0.4299 | -902.5 | 999999 | |
| 0.00 | 4.11 | 0.00 | 2.23 | 12.58 | 251.63 | -21.67 | 62.65 | 0.4075 | -739.0 | -641.5 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 12.76 | 251.55 | -21.75 | 62.33 | 0.4099 | -595.0 | -517.3 | |
| 0.00 | 3.26 | 0.00 | 1.77 | 13.72 | 251.33 | -21.97 | 60.45 | 0.4197 | -780.0 | -648.0 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 15.02 | 251.16 | -22.14 | 57.91 | 0.4315 | -748.0 | -510.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 15.24 | 251.04 | -22.27 | 57.61 | 0.4348 | -425.0 | -387.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 14.11 | 251.09 | -22.21 | 59.87 | 0.4257 | -737.0 | -622.2 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 13.78 | 251.09 | -22.21 | 60.57 | 0.4233 | -758.0 | -558.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 15.14 | 250.75 | -22.55 | 58.11 | 0.4379 | -567.0 | -350.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 14.41 | 250.76 | -22.54 | 59.58 | 0.4324 | -881.0 | -745.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 14.74 | 250.59 | -22.71 | 59.08 | 0.4371 | -666.0 | -470.5 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 14.25 | 249.98 | -23.32 | 60.69 | 0.4419 | 895.0 | 691.1 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 13.25 | 249.92 | -23.38 | 62.82 | 0.4361 | 868.0 | 694.6 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 17.81 | 249.16 | -24.14 | 54.68 | 0.4792 | -731.0 | -599.4 | |
| 1.37 | 2.31 | 0.76 | 1.28 | 14.58 | 249.41 | -23.89 | 60.57 | 0.4519 | 873.2 | 818.4 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 21.98 | 248.26 | -25.04 | 48.68 | 0.5248 | -697.0 | -522.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 15.47 | 247.89 | -25.42 | 60.23 | 0.4785 | 938.0 | 774.5 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 15.68 | 247.86 | -25.45 | 59.86 | 0.4804 | 932.0 | 687.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 16.23 | 247.78 | -25.52 | 58.90 | 0.4851 | 812.0 | 654.4 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 16.63 | 245.89 | -27.41 | 59.80 | 0.5125 | 956.0 | 823.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 18.30 | 244.70 | -28.61 | 57.89 | 0.5388 | 678.0 | 546.7 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 16.82 | 244.53 | -28.77 | 60.53 | 0.5314 | 730.0 | 592.9 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 15.23 | 244.36 | -28.94 | 63.43 | 0.5242 | 629.0 | 559.6 | |
| 0.00 | 2.91 | 0.00 | 1.67 | 12.57 | 244.62 | -28.68 | 68.13 | 0.5069 | 770.0 | 710.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 18.65 | 242.80 | -30.50 | 58.79 | 0.5646 | 617.0 | 532.7 | |
| 0.00 | 2.66 | 0.00 | 1.61 | 19.35 | 242.18 | -31.12 | 58.12 | 0.5766 | 641.0 | 457.2 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 19.10 | 242.05 | -31.25 | 58.61 | 0.5766 | 719.0 | 480.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
