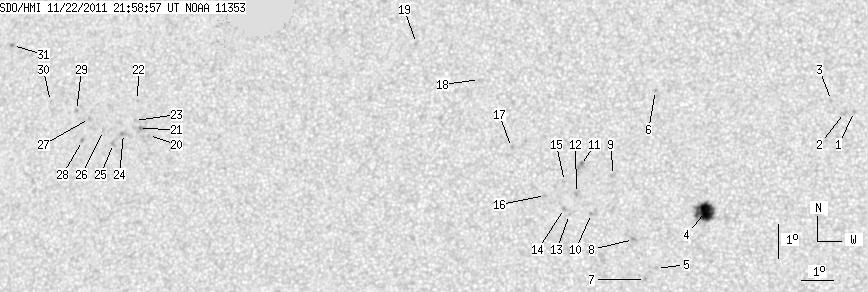

SDO HMI 2011-11-22 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.10 | 80.37 | 11.06 | 41.40 | 8.92 | 260.90 | -11.85 | 52.69 | 0.2431 | -464.0 | -180.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.64 | 10.79 | 271.35 | -1.41 | 8.93 | 0.1560 | -1036.0 | -685.7 | |
| 0.00 | 2.83 | 0.00 | 1.42 | 10.76 | 271.04 | -1.71 | 10.84 | 0.1564 | -444.0 | -620.4 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 11.12 | 270.65 | -2.10 | 12.74 | 0.1638 | -794.0 | -548.9 | |
| 22.10 | 29.99 | 11.06 | 15.01 | 7.79 | 266.90 | -5.85 | 44.80 | 0.1440 | -1189.7 | -641.7 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 6.10 | 265.45 | -7.30 | 60.22 | 0.1462 | -908.0 | -714.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 11.40 | 265.32 | -7.44 | 37.69 | 0.2085 | -906.0 | -742.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 5.77 | 265.13 | -7.62 | 63.22 | 0.1486 | -997.0 | -820.9 | |
| 0.00 | 2.14 | 0.00 | 1.08 | 6.95 | 264.75 | -8.00 | 57.73 | 0.1642 | -1069.0 | -880.8 | |
| 0.00 | 2.06 | 0.00 | 1.04 | 8.85 | 264.10 | -8.65 | 50.99 | 0.1920 | -888.0 | -633.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 7.72 | 263.46 | -9.29 | 57.80 | 0.1898 | -988.0 | -728.3 | |
| 0.00 | 4.37 | 0.00 | 2.21 | 9.15 | 263.10 | -9.66 | 52.84 | 0.2087 | -813.0 | -782.6 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 8.31 | 263.00 | -9.75 | 56.49 | 0.2020 | -1089.0 | -842.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 7.69 | 262.80 | -9.95 | 59.67 | 0.1993 | -966.0 | -715.4 | |
| 0.00 | 1.71 | 0.00 | 0.87 | 7.86 | 262.64 | -10.11 | 59.29 | 0.2032 | -923.0 | -782.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.67 | 262.62 | -10.13 | 56.01 | 0.2107 | -582.0 | -478.8 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 8.25 | 262.06 | -10.70 | 59.08 | 0.2151 | -938.0 | -656.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 9.67 | 260.97 | -11.78 | 56.18 | 0.2433 | -808.0 | -643.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 11.70 | 259.90 | -12.85 | 52.04 | 0.2775 | -841.0 | -701.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 12.77 | 257.88 | -14.87 | 53.02 | 0.3148 | -632.0 | -561.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 9.91 | 249.50 | -23.25 | 70.06 | 0.4154 | 836.0 | 677.8 | |
| 0.00 | 5.57 | 0.00 | 3.04 | 10.12 | 249.16 | -23.59 | 69.84 | 0.4215 | 831.0 | 742.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 10.96 | 249.06 | -23.69 | 68.03 | 0.4272 | 897.0 | 757.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 10.36 | 249.01 | -23.74 | 69.41 | 0.4249 | 811.0 | 577.9 | |
| 0.00 | 2.66 | 0.00 | 1.45 | 9.96 | 248.68 | -24.07 | 70.52 | 0.4279 | 874.0 | 719.6 | |
| 0.00 | 2.40 | 0.00 | 1.32 | 9.66 | 248.37 | -24.38 | 71.40 | 0.4311 | 742.0 | 673.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 10.04 | 248.01 | -24.74 | 70.79 | 0.4382 | 798.0 | 630.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 10.40 | 247.52 | -25.23 | 70.34 | 0.4472 | 865.0 | 655.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 9.74 | 247.34 | -25.41 | 71.87 | 0.4469 | 745.0 | 650.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 10.63 | 247.06 | -25.69 | 70.13 | 0.4549 | 810.0 | 625.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 10.89 | 246.17 | -26.59 | 70.16 | 0.4692 | 688.0 | 589.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 12.55 | 244.69 | -28.06 | 67.78 | 0.4980 | 831.0 | 758.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
