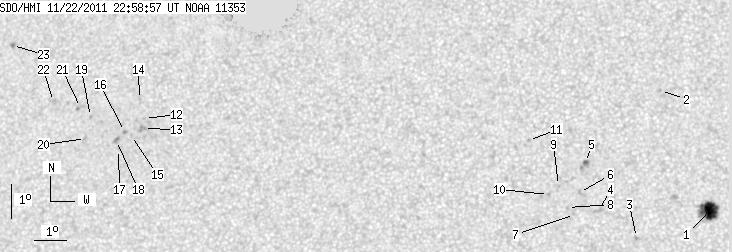

SDO HMI 2011-11-22 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.71 | 74.27 | 11.36 | 38.48 | 8.97 | 259.12 | -13.08 | 54.69 | 0.2589 | -384.7 | -8.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.02 | 29.22 | 11.01 | 14.61 | 7.79 | 266.92 | -5.28 | 41.87 | 0.1373 | -1191.2 | -634.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 11.37 | 265.37 | -6.83 | 35.44 | 0.2019 | -837.0 | -675.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.98 | 264.74 | -7.46 | 55.74 | 0.1567 | -995.0 | -886.9 | |
| 0.00 | 3.60 | 0.00 | 1.81 | 7.78 | 263.58 | -8.62 | 55.59 | 0.1809 | -983.0 | -730.2 | |
| 0.69 | 6.51 | 0.35 | 3.29 | 9.21 | 263.15 | -9.05 | 50.82 | 0.2012 | -878.6 | -759.4 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 8.31 | 262.99 | -9.21 | 54.96 | 0.1943 | -1153.0 | -896.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 7.66 | 262.85 | -9.35 | 58.22 | 0.1902 | -739.0 | -514.4 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 7.86 | 262.64 | -9.56 | 57.88 | 0.1952 | -924.0 | -718.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.52 | 262.35 | -9.85 | 55.87 | 0.2053 | -774.0 | -627.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 8.25 | 262.05 | -10.15 | 57.75 | 0.2071 | -887.0 | -593.6 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 9.85 | 261.39 | -10.80 | 53.25 | 0.2316 | -825.0 | -687.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 10.39 | 249.27 | -22.92 | 68.71 | 0.4130 | 626.0 | 612.6 | |
| 0.00 | 4.54 | 0.00 | 2.47 | 10.09 | 249.26 | -22.93 | 69.41 | 0.4116 | 1016.0 | 829.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 10.96 | 249.06 | -23.13 | 67.58 | 0.4190 | 895.0 | 702.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 9.88 | 248.89 | -23.31 | 70.18 | 0.4162 | 716.0 | 614.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 10.00 | 248.65 | -23.55 | 70.08 | 0.4203 | 890.0 | 798.0 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 9.46 | 248.49 | -23.70 | 71.42 | 0.4202 | 695.0 | 617.2 | |
| 0.00 | 2.74 | 0.00 | 1.50 | 9.72 | 248.41 | -23.79 | 70.86 | 0.4227 | 916.0 | 808.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 10.43 | 247.49 | -24.71 | 69.91 | 0.4395 | 919.0 | 737.9 | |
| 0.00 | 2.14 | 0.00 | 1.18 | 9.77 | 247.38 | -24.82 | 71.43 | 0.4382 | 751.0 | 533.7 | |
| 0.00 | 2.91 | 0.00 | 1.61 | 10.69 | 247.14 | -25.06 | 69.57 | 0.4460 | 540.0 | 567.6 | |
| 0.00 | 3.60 | 0.00 | 2.01 | 10.86 | 246.22 | -25.98 | 69.82 | 0.4602 | 810.0 | 588.3 | |
| 0.00 | 2.40 | 0.00 | 1.36 | 12.52 | 244.66 | -27.54 | 67.49 | 0.4906 | 810.0 | 667.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
