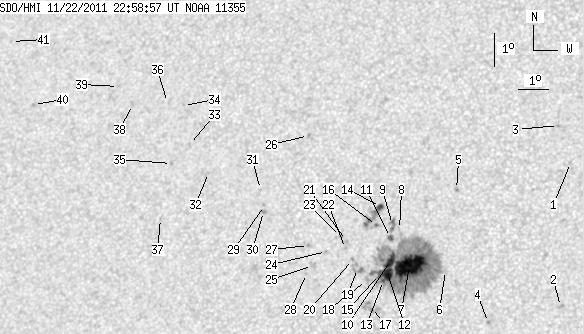

SDO HMI 2011-11-22 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.71 | 356.44 | 36.92 | 192.21 | 14.17 | 252.09 | -20.10 | 57.29 | 0.3974 | -537.1 | -404.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 17.08 | 257.79 | -14.41 | 42.25 | 0.3554 | -732.0 | -664.4 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 12.71 | 257.77 | -14.43 | 52.35 | 0.3084 | -706.0 | -683.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 18.22 | 257.31 | -14.89 | 40.98 | 0.3739 | -784.0 | -649.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 12.20 | 255.53 | -16.66 | 57.40 | 0.3342 | -905.0 | -705.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 16.22 | 254.19 | -18.01 | 50.12 | 0.3885 | 982.0 | 683.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 13.76 | 254.05 | -18.15 | 55.73 | 0.3677 | -104.0 | -109.5 | |
| 42.58 | 268.01 | 22.83 | 143.74 | 13.90 | 252.88 | -19.32 | 56.98 | 0.3847 | -1358.2 | -489.9 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 14.98 | 252.46 | -19.74 | 55.14 | 0.3994 | -190.0 | -187.0 | |
| 0.00 | 6.51 | 0.00 | 3.52 | 15.13 | 252.21 | -19.98 | 55.13 | 0.4039 | -846.0 | -732.7 | |
| 8.31 | -7.00 | 4.48 | -7.00 | 14.04 | 252.25 | -19.95 | 57.44 | 0.3944 | -928.2 | 999999 | |
| 1.20 | 2.91 | 0.65 | 1.57 | 14.74 | 252.19 | -20.01 | 56.00 | 0.4009 | -906.4 | -711.0 | |
| 9.34 | -7.00 | 5.02 | -7.00 | 13.65 | 252.19 | -20.01 | 58.39 | 0.3921 | -1003.0 | 999999 | |
| 1.03 | -7.00 | 0.55 | -7.00 | 13.43 | 252.08 | -20.12 | 59.01 | 0.3920 | -851.1 | 999999 | |
| 2.48 | 15.25 | 1.35 | 8.29 | 15.68 | 251.77 | -20.43 | 54.56 | 0.4143 | 496.4 | -527.4 | |
| 2.74 | -7.00 | 1.48 | -7.00 | 13.61 | 251.93 | -20.26 | 58.77 | 0.3954 | -724.8 | 999999 | |
| 1.03 | 1.37 | 0.56 | 0.74 | 15.10 | 251.69 | -20.50 | 55.85 | 0.4104 | -859.1 | -812.6 | |
| 0.00 | 11.14 | 0.00 | 5.99 | 12.62 | 251.76 | -20.44 | 61.24 | 0.3904 | -698.0 | -619.5 | |
| 0.00 | 2.48 | 0.00 | 1.34 | 13.43 | 251.53 | -20.67 | 59.66 | 0.3996 | 17.0 | -123.7 | |
| 0.00 | 8.57 | 0.00 | 4.64 | 13.79 | 251.20 | -21.00 | 59.23 | 0.4067 | -282.0 | -578.1 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 14.06 | 251.01 | -21.19 | 58.86 | 0.4114 | -693.0 | -555.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 14.63 | 250.76 | -21.44 | 57.93 | 0.4192 | -724.0 | -542.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 14.39 | 250.75 | -21.45 | 58.45 | 0.4174 | -859.0 | -630.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 14.75 | 250.55 | -21.65 | 57.91 | 0.4229 | -776.0 | -609.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 14.29 | 250.13 | -22.06 | 59.32 | 0.4251 | 900.0 | 637.7 | |
| 0.00 | 3.43 | 0.00 | 1.88 | 13.86 | 249.72 | -22.48 | 60.65 | 0.4277 | 669.0 | 643.3 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 17.82 | 249.11 | -23.09 | 53.53 | 0.4662 | -754.0 | -604.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 14.46 | 249.52 | -22.68 | 59.60 | 0.4347 | 951.0 | 734.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 13.62 | 249.54 | -22.65 | 61.34 | 0.4284 | 736.0 | 524.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 15.66 | 247.91 | -24.29 | 58.81 | 0.4649 | 798.0 | 725.7 | |
| 0.00 | 2.66 | 0.00 | 1.48 | 15.48 | 247.90 | -24.30 | 59.18 | 0.4638 | 883.0 | 676.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 16.15 | 247.71 | -24.49 | 58.08 | 0.4711 | 816.0 | 556.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 16.64 | 245.86 | -26.34 | 58.86 | 0.4987 | 948.0 | 710.1 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 17.49 | 245.07 | -27.13 | 58.04 | 0.5147 | 769.0 | 605.3 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 18.69 | 244.66 | -27.54 | 56.36 | 0.5282 | 606.0 | 530.9 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 16.90 | 244.54 | -27.66 | 59.52 | 0.5175 | 734.0 | 582.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.77 | 244.08 | -28.12 | 56.71 | 0.5360 | 646.0 | 646.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 15.21 | 244.41 | -27.79 | 62.61 | 0.5087 | 666.0 | 584.6 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 18.69 | 242.84 | -29.36 | 57.84 | 0.5507 | 798.0 | 605.1 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 19.24 | 242.23 | -29.97 | 57.43 | 0.5619 | 442.0 | 408.2 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 18.63 | 239.23 | -32.97 | 60.47 | 0.5948 | 763.0 | 586.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 20.57 | 237.94 | -34.26 | 58.37 | 0.6213 | 519.0 | 349.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
