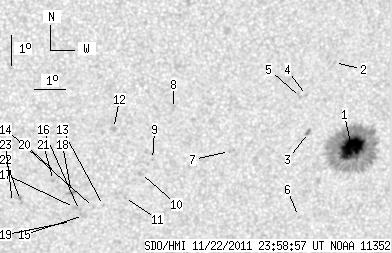

SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.22 | 215.42 | 16.61 | 122.22 | -24.68 | 283.50 | 11.85 | 202.56 | 0.4890 | 321.5 | 252.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.22 | 182.77 | 16.61 | 103.91 | -24.58 | 284.56 | 12.91 | 204.50 | 0.4921 | 1269.6 | 387.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.79 | 283.73 | 12.09 | 205.81 | 0.4484 | 271.0 | 241.2 | |
| 0.00 | 2.83 | 0.00 | 1.59 | -24.07 | 283.08 | 11.43 | 202.44 | 0.4760 | 741.0 | 648.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.86 | 282.91 | 11.26 | 203.24 | 0.4580 | 767.0 | 595.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -22.92 | 282.72 | 11.07 | 202.83 | 0.4577 | 840.0 | 573.0 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -26.88 | 283.02 | 11.37 | 200.06 | 0.5148 | 603.0 | 563.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -24.69 | 280.52 | 8.87 | 197.37 | 0.4714 | -734.0 | -548.8 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -23.26 | 278.60 | 6.95 | 194.64 | 0.4419 | -728.0 | -631.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -24.94 | 278.00 | 6.36 | 192.52 | 0.4651 | -641.0 | -488.1 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -25.40 | 277.63 | 5.98 | 191.59 | 0.4709 | -747.0 | -671.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -26.21 | 277.14 | 5.49 | 190.32 | 0.4815 | -636.0 | -553.4 | |
| 0.00 | 3.08 | 0.00 | 1.70 | -23.91 | 276.68 | 5.03 | 190.42 | 0.4453 | -727.0 | -658.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -26.47 | 276.46 | 4.81 | 188.96 | 0.4838 | -630.0 | -508.7 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -26.54 | 276.13 | 4.48 | 188.34 | 0.4840 | -756.0 | -571.5 | |
| 0.00 | 3.43 | 0.00 | 1.94 | -26.81 | 275.81 | 4.16 | 187.66 | 0.4874 | -618.0 | -547.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -26.64 | 275.67 | 4.02 | 187.46 | 0.4846 | -718.0 | -673.1 | |
| 0.00 | 2.48 | 0.00 | 1.40 | -26.54 | 275.50 | 3.85 | 187.18 | 0.4827 | -940.0 | -637.1 | |
| 0.00 | 3.26 | 0.00 | 1.83 | -26.03 | 275.38 | 3.73 | 187.11 | 0.4748 | -867.0 | -744.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -27.01 | 275.41 | 3.77 | 186.89 | 0.4897 | -437.0 | -450.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -25.40 | 274.87 | 3.22 | 186.31 | 0.4641 | -649.0 | -629.3 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -25.63 | 274.78 | 3.13 | 186.07 | 0.4675 | -891.0 | -696.9 | |
| 0.00 | 2.57 | 0.00 | 1.45 | -26.30 | 273.70 | 2.06 | 183.89 | 0.4764 | -764.0 | -696.2 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -26.36 | 273.44 | 1.79 | 183.38 | 0.4771 | -415.0 | -406.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
