SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.46 | 355.42 | 35.06 | 191.00 | 14.17 | 252.12 | -19.52 | 56.56 | 0.3897 | -570.9 | -422.1 | |
|
previous
or next observation for the same group /

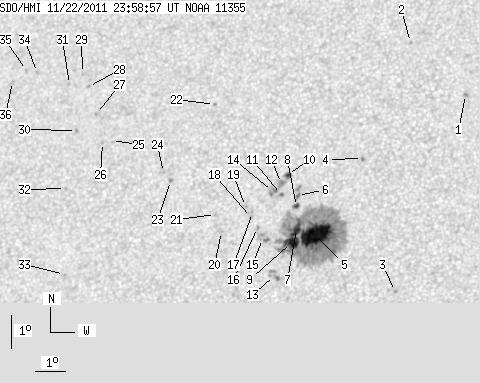

back to the solar disc SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.14 | 18.21 | 257.33 | -14.32 | 39.89 | 0.3679 | -920.0 | -722.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 19.81 | 255.39 | -16.25 | 40.54 | 0.4069 | -771.0 | -596.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 12.20 | 255.55 | -16.10 | 56.53 | 0.3264 | -898.0 | -704.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 16.22 | 254.19 | -17.46 | 49.29 | 0.3818 | 915.0 | 725.5 | |
| 39.07 | 286.20 | 20.88 | 153.01 | 13.89 | 252.87 | -18.77 | 56.26 | 0.3773 | -1370.3 | -484.1 | |
| 0.34 | 5.74 | 0.18 | 3.10 | 15.07 | 252.19 | -19.46 | 54.57 | 0.3965 | -1037.5 | -710.0 | |
| 8.40 | -5.00 | 4.51 | -5.00 | 14.04 | 252.25 | -19.40 | 56.75 | 0.3870 | -900.8 | 999999 | |
| 2.40 | 3.08 | 1.29 | 1.66 | 14.74 | 252.19 | -19.46 | 55.30 | 0.3936 | -780.4 | -659.6 | |
| 11.82 | -5.00 | 6.34 | -5.00 | 13.64 | 252.12 | -19.53 | 57.80 | 0.3855 | -961.6 | 999999 | |
| 2.23 | 3.68 | 1.21 | 2.00 | 15.71 | 251.80 | -19.85 | 53.75 | 0.4071 | 553.8 | 114.0 | |
| 1.20 | 2.48 | 0.65 | 1.34 | 15.09 | 251.66 | -19.98 | 55.20 | 0.4036 | -849.2 | -791.7 | |
| 0.00 | 4.20 | 0.00 | 2.27 | 15.43 | 251.63 | -20.02 | 54.54 | 0.4069 | -319.0 | -412.1 | |
| 0.00 | 7.03 | 0.00 | 3.77 | 12.64 | 251.66 | -19.99 | 60.66 | 0.3843 | -739.0 | -712.1 | |
| 0.00 | 4.97 | 0.00 | 2.69 | 15.18 | 251.36 | -20.29 | 55.39 | 0.4083 | -735.0 | -679.0 | |
| 0.00 | 6.68 | 0.00 | 3.61 | 13.75 | 251.17 | -20.48 | 58.70 | 0.3994 | -516.0 | -594.7 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 14.09 | 250.98 | -20.67 | 58.20 | 0.4046 | -703.0 | -491.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 14.54 | 250.77 | -20.88 | 57.47 | 0.4109 | -714.0 | -635.1 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 14.39 | 250.75 | -20.90 | 57.81 | 0.4100 | -940.0 | -646.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 14.72 | 250.52 | -21.12 | 57.37 | 0.4157 | -716.0 | -544.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 13.95 | 249.81 | -21.84 | 59.78 | 0.4195 | 845.0 | 643.3 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 14.46 | 249.56 | -22.09 | 58.97 | 0.4267 | 887.0 | 751.2 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 17.82 | 249.13 | -22.52 | 52.89 | 0.4592 | -758.0 | -625.7 | |
| 0.00 | 1.97 | 0.00 | 1.10 | 15.48 | 247.95 | -23.70 | 58.58 | 0.4558 | 942.0 | 764.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 15.72 | 247.68 | -23.96 | 58.38 | 0.4611 | 767.0 | 569.6 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 16.67 | 245.78 | -25.86 | 58.38 | 0.4928 | 529.0 | 741.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 16.60 | 245.48 | -26.16 | 58.76 | 0.4962 | 714.0 | 468.5 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 17.49 | 245.14 | -26.51 | 57.49 | 0.5068 | 788.0 | 665.9 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 18.32 | 244.73 | -26.92 | 56.43 | 0.5179 | 821.0 | 685.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.71 | 244.45 | -27.20 | 56.00 | 0.5243 | 680.0 | 557.5 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 16.96 | 244.53 | -27.12 | 58.95 | 0.5110 | 767.0 | 624.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 18.37 | 244.05 | -27.60 | 56.93 | 0.5267 | 103.0 | 192.6 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 15.18 | 244.41 | -27.23 | 62.24 | 0.5012 | 689.0 | 523.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 12.58 | 244.71 | -26.94 | 66.96 | 0.4825 | 840.0 | 665.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 18.72 | 242.85 | -28.79 | 57.33 | 0.5440 | 748.0 | 628.6 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 18.78 | 242.45 | -29.20 | 57.56 | 0.5494 | 619.0 | 429.3 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 18.43 | 242.01 | -29.64 | 58.47 | 0.5526 | 816.0 | 557.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
