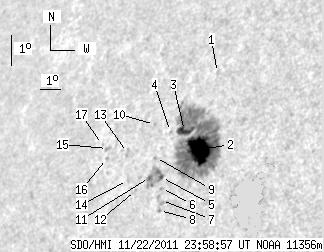

SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.87 | 283.71 | 33.86 | 220.10 | 17.42 | 222.90 | -48.74 | 68.83 | 0.7714 | -542.0 | -168.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.93 | 19.82 | 223.35 | -48.29 | 65.67 | 0.7731 | 352.0 | 255.4 | |
| 33.16 | 240.27 | 25.45 | 185.35 | 17.43 | 223.41 | -48.23 | 68.68 | 0.7662 | -1060.1 | -287.6 | |
| 8.65 | -2.00 | 6.78 | -2.00 | 18.00 | 222.50 | -49.15 | 68.21 | 0.7771 | -586.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 17.95 | 221.84 | -49.81 | 68.44 | 0.7836 | -323.0 | -242.8 | |
| 0.86 | 21.16 | 0.67 | 16.78 | 16.53 | 221.93 | -49.72 | 70.20 | 0.7796 | -174.8 | 375.0 | |
| 0.00 | 1.11 | 0.00 | 0.87 | 16.20 | 222.05 | -49.60 | 70.60 | 0.7777 | -303.0 | -265.4 | |
| 0.00 | 5.48 | 0.00 | 4.29 | 15.83 | 222.17 | -49.48 | 71.03 | 0.7756 | 488.0 | 401.3 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 15.53 | 222.18 | -49.47 | 71.42 | 0.7749 | 710.0 | 628.3 | |
| 0.00 | 1.29 | 0.00 | 1.03 | 17.14 | 221.42 | -50.23 | 69.57 | 0.7861 | 378.0 | 337.7 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 18.15 | 220.98 | -50.67 | 68.42 | 0.7927 | 376.0 | 333.9 | |
| 1.20 | -5.00 | 0.96 | -5.00 | 16.52 | 221.35 | -50.29 | 70.35 | 0.7854 | 571.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 16.11 | 220.82 | -50.83 | 70.99 | 0.7901 | 687.0 | 581.7 | |
| 0.00 | 3.34 | 0.00 | 2.75 | 17.25 | 219.99 | -51.66 | 69.75 | 0.8006 | 695.0 | 557.9 | |
| 0.00 | 1.46 | 0.00 | 1.18 | 16.40 | 220.32 | -51.33 | 70.74 | 0.7957 | 663.0 | 490.7 | |
| 0.00 | 2.74 | 0.00 | 2.31 | 17.35 | 218.93 | -52.71 | 69.87 | 0.8111 | 553.0 | 482.1 | |
| 0.00 | 1.29 | 0.00 | 1.08 | 17.04 | 219.01 | -52.64 | 70.23 | 0.8098 | 518.0 | 434.6 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 17.47 | 218.63 | -53.02 | 69.80 | 0.8142 | 333.0 | 281.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
