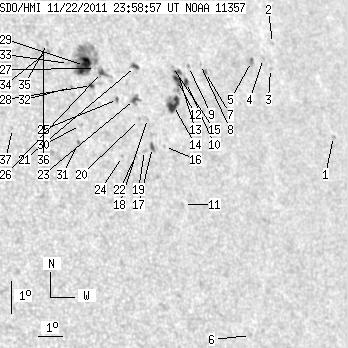

SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.74 | 145.07 | 32.70 | 99.47 | 18.11 | 312.99 | 41.34 | 294.57 | 0.6922 | -154.4 | -13.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-22 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.28 | 16.35 | 321.23 | 49.58 | 289.60 | 0.7778 | 496.0 | 383.1 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 19.27 | 319.42 | 47.77 | 293.80 | 0.7663 | -420.0 | -304.0 | |
| 0.00 | 1.11 | 0.00 | 0.85 | 18.51 | 319.04 | 47.39 | 292.94 | 0.7602 | -448.0 | -366.6 | |
| 0.00 | 1.37 | 0.00 | 1.04 | 18.82 | 318.83 | 47.18 | 293.40 | 0.7589 | -430.0 | -403.9 | |
| 0.00 | 3.77 | 0.00 | 2.82 | 18.74 | 318.25 | 46.60 | 293.48 | 0.7525 | -835.0 | -568.3 | |
| 0.00 | 1.37 | 0.00 | 0.96 | 10.44 | 315.99 | 44.34 | 282.88 | 0.7075 | -457.0 | -405.7 | |
| 0.00 | 1.63 | 0.00 | 1.17 | 18.45 | 316.09 | 44.44 | 293.82 | 0.7284 | -698.0 | -664.3 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 18.70 | 315.95 | 44.30 | 294.20 | 0.7277 | -460.0 | -506.0 | |
| 0.00 | 1.20 | 0.00 | 0.86 | 18.65 | 315.41 | 43.76 | 294.33 | 0.7216 | -567.0 | -471.7 | |
| 2.48 | 4.11 | 1.76 | 2.91 | 18.16 | 315.17 | 43.52 | 293.76 | 0.7173 | -483.8 | -396.9 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 14.44 | 314.02 | 42.38 | 289.01 | 0.6927 | -586.0 | -388.9 | |
| 5.23 | 15.60 | 3.68 | 10.99 | 18.23 | 314.80 | 43.16 | 293.99 | 0.7134 | -888.0 | -587.5 | |
| 3.17 | -12.00 | 2.24 | -12.00 | 18.51 | 314.89 | 43.24 | 294.33 | 0.7153 | -688.9 | 999999 | |
| 9.77 | 15.60 | 6.81 | 10.88 | 17.47 | 314.40 | 42.75 | 293.09 | 0.7063 | -763.1 | -669.4 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 18.67 | 314.72 | 43.08 | 294.60 | 0.7140 | -619.0 | -530.9 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 16.22 | 313.68 | 42.03 | 291.63 | 0.6939 | -404.0 | -345.5 | |
| 2.31 | 3.68 | 1.57 | 2.51 | 16.20 | 313.17 | 41.53 | 291.78 | 0.6879 | -779.2 | -638.1 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 17.09 | 313.20 | 41.56 | 293.02 | 0.6913 | 465.0 | 325.3 | |
| 0.00 | 1.89 | 0.00 | 1.28 | 16.12 | 312.82 | 41.18 | 291.79 | 0.6835 | -807.0 | -657.3 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 17.07 | 312.87 | 41.22 | 293.11 | 0.6873 | -645.0 | -499.3 | |
| 2.57 | 3.17 | 1.77 | 2.18 | 18.70 | 313.17 | 41.52 | 295.26 | 0.6966 | -647.0 | -550.7 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 15.94 | 312.41 | 40.76 | 291.69 | 0.6780 | -642.0 | -543.6 | |
| 2.06 | 6.26 | 1.40 | 4.27 | 17.69 | 312.83 | 41.18 | 293.99 | 0.6890 | 655.5 | 418.2 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 15.95 | 311.89 | 40.24 | 291.90 | 0.6718 | -657.0 | -589.0 | |
| 1.46 | 1.97 | 0.98 | 1.33 | 17.70 | 312.13 | 40.49 | 294.29 | 0.6810 | -649.6 | -579.0 | |
| 2.66 | 6.08 | 1.79 | 4.10 | 18.55 | 311.71 | 40.07 | 295.66 | 0.6794 | 561.2 | 424.1 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 18.67 | 311.50 | 39.86 | 295.93 | 0.6775 | 490.0 | 360.2 | |
| 1.89 | 2.83 | 1.26 | 1.88 | 18.15 | 311.20 | 39.55 | 295.33 | 0.6718 | 662.0 | 472.0 | |
| 14.14 | 52.87 | 9.44 | 35.37 | 18.78 | 311.09 | 39.44 | 296.26 | 0.6730 | 930.4 | 385.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 16.94 | 310.44 | 38.79 | 293.91 | 0.6579 | 373.0 | 361.6 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 16.42 | 310.24 | 38.59 | 293.24 | 0.6535 | 625.0 | 512.2 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 18.11 | 310.38 | 38.73 | 295.63 | 0.6620 | 540.0 | 389.0 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 18.85 | 310.46 | 38.81 | 296.66 | 0.6660 | 317.0 | 270.9 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 19.27 | 309.77 | 38.13 | 297.59 | 0.6599 | -688.0 | -559.6 | |
| 0.00 | 1.71 | 0.00 | 1.13 | 19.49 | 309.79 | 38.15 | 297.89 | 0.6611 | -657.0 | -536.9 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 19.36 | 309.60 | 37.95 | 297.81 | 0.6583 | -669.0 | -484.9 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 16.90 | 307.77 | 36.13 | 295.09 | 0.6252 | 643.0 | 537.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
