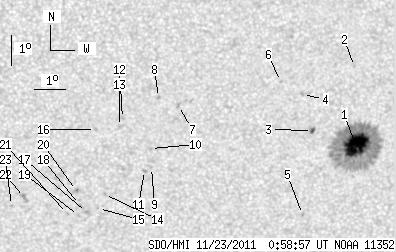

SDO HMI 2011-11-23 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.36 | 208.49 | 19.55 | 118.51 | -24.64 | 283.49 | 12.40 | 203.50 | 0.4913 | 355.1 | 244.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.56 | 176.28 | 18.54 | 100.45 | -24.56 | 284.54 | 13.45 | 205.40 | 0.4951 | 1261.9 | 377.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.00 | 284.25 | 13.15 | 207.51 | 0.4586 | 715.0 | 543.9 | |
| 1.80 | 2.66 | 1.01 | 1.50 | -24.08 | 283.06 | 11.97 | 203.36 | 0.4792 | 825.6 | 689.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -22.90 | 282.62 | 11.53 | 203.69 | 0.4601 | 919.0 | 729.0 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -26.89 | 283.01 | 11.91 | 200.92 | 0.5177 | 726.0 | 558.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -22.47 | 281.87 | 10.77 | 202.71 | 0.4494 | 622.0 | 528.0 | |
| 0.00 | 2.31 | 0.00 | 1.28 | -23.23 | 278.60 | 7.51 | 195.76 | 0.4437 | -802.0 | -591.0 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -22.97 | 277.94 | 6.84 | 194.60 | 0.4369 | -811.0 | -635.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -25.28 | 277.83 | 6.74 | 193.06 | 0.4713 | -790.0 | -600.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -24.65 | 277.77 | 6.67 | 193.28 | 0.4616 | -633.0 | -565.6 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -25.38 | 277.61 | 6.51 | 192.59 | 0.4721 | -816.0 | -687.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -23.65 | 276.80 | 5.71 | 191.91 | 0.4433 | -871.0 | -699.0 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -23.92 | 276.72 | 5.62 | 191.60 | 0.4470 | -802.0 | -613.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -26.18 | 276.33 | 5.23 | 189.85 | 0.4802 | -903.0 | -669.3 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -26.65 | 276.15 | 5.05 | 189.34 | 0.4869 | -660.0 | -586.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -24.01 | 275.94 | 4.84 | 190.00 | 0.4462 | -708.0 | -472.4 | |
| 0.00 | 1.97 | 0.00 | 1.12 | -26.78 | 275.75 | 4.66 | 188.58 | 0.4880 | -714.0 | -588.9 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -26.51 | 275.51 | 4.41 | 188.23 | 0.4833 | -570.0 | -482.2 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -26.88 | 275.49 | 4.40 | 188.07 | 0.4889 | -692.0 | -559.9 | |
| 0.00 | 1.97 | 0.00 | 1.11 | -26.04 | 275.39 | 4.30 | 188.17 | 0.4759 | -1028.0 | -763.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.81 | 275.12 | 4.03 | 187.42 | 0.4871 | -706.0 | -488.2 | |
| 0.00 | 3.68 | 0.00 | 2.07 | -26.27 | 273.68 | 2.59 | 184.89 | 0.4765 | -773.0 | -690.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -26.54 | 273.26 | 2.16 | 184.05 | 0.4801 | -531.0 | -421.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
