SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.25 | 214.09 | 18.96 | 121.96 | -24.67 | 283.49 | 12.94 | 204.39 | 0.4953 | 406.0 | 238.1 | |
|
previous
or next observation for the same group /

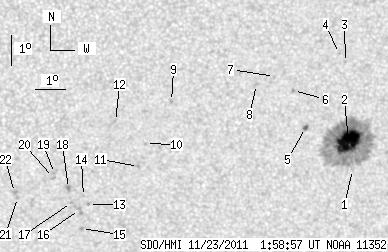

back to the solar disc SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.54 | -25.51 | 284.81 | 14.27 | 205.81 | 0.5130 | -115.0 | -65.3 | |
| 31.11 | 180.15 | 17.75 | 102.88 | -24.57 | 284.57 | 14.02 | 206.32 | 0.4990 | 1266.6 | 369.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -21.98 | 284.19 | 13.65 | 208.40 | 0.4619 | 693.0 | 571.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -21.69 | 283.97 | 13.42 | 208.34 | 0.4563 | 841.0 | 612.3 | |
| 2.14 | 2.31 | 1.21 | 1.31 | -24.10 | 283.08 | 12.53 | 204.33 | 0.4829 | 768.0 | 802.0 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -22.88 | 282.57 | 12.02 | 204.61 | 0.4628 | 861.0 | 682.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -22.42 | 281.91 | 11.36 | 203.85 | 0.4522 | 633.0 | 536.6 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -22.68 | 281.34 | 10.79 | 202.56 | 0.4523 | 738.0 | 495.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.22 | 278.61 | 8.06 | 196.88 | 0.4457 | -880.0 | -725.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -24.59 | 277.84 | 7.29 | 194.50 | 0.4631 | -673.0 | -579.0 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -25.36 | 277.66 | 7.11 | 193.71 | 0.4737 | -870.0 | -636.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.86 | 276.82 | 6.27 | 192.94 | 0.4483 | -751.0 | -603.3 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -26.63 | 276.07 | 5.52 | 190.20 | 0.4877 | -794.0 | -638.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -26.36 | 275.89 | 5.34 | 189.98 | 0.4831 | -831.0 | -665.5 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -27.44 | 275.87 | 5.33 | 189.53 | 0.4993 | -752.0 | -626.9 | |
| 0.00 | 4.89 | 0.00 | 2.77 | -26.79 | 275.78 | 5.23 | 189.61 | 0.4894 | -711.0 | -603.1 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.56 | 275.50 | 4.95 | 189.19 | 0.4852 | -885.0 | -724.1 | |
| 0.00 | 3.09 | 0.00 | 1.74 | -26.09 | 275.38 | 4.83 | 189.15 | 0.4777 | -1021.0 | -713.3 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -25.58 | 274.90 | 4.35 | 188.42 | 0.4689 | -842.0 | -703.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -25.72 | 274.87 | 4.32 | 188.32 | 0.4709 | -623.0 | -621.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -26.38 | 273.70 | 3.15 | 185.93 | 0.4789 | -717.0 | -581.8 | |
| 0.00 | 2.31 | 0.00 | 1.30 | -26.22 | 273.60 | 3.05 | 185.78 | 0.4762 | -895.0 | -748.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
