SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.74 | 80.22 | 10.35 | 41.31 | 9.09 | 259.30 | -11.25 | 188.94 | 0.2399 | -276.7 | -37.1 | |
|
previous
or next observation for the same group /

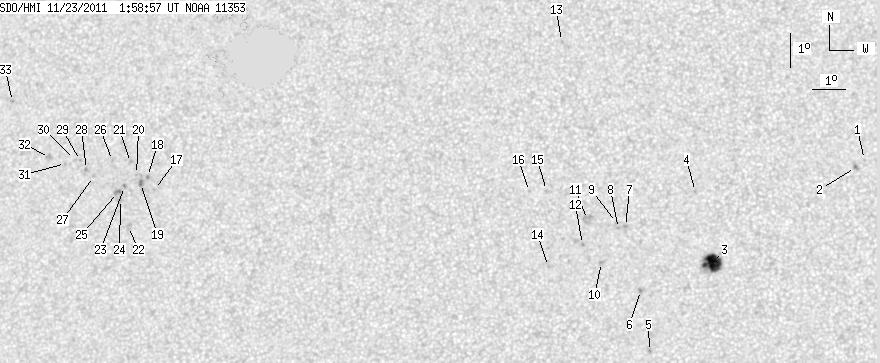

back to the solar disc SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.88 | 271.46 | 0.92 | 354.23 | 0.1570 | -806.0 | -587.2 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 10.64 | 271.19 | 0.64 | 355.82 | 0.1524 | -1010.0 | -876.4 | |
| 20.74 | 27.00 | 10.35 | 13.47 | 7.80 | 266.91 | -3.63 | 31.55 | 0.1206 | -1213.9 | -683.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.92 | 266.38 | -4.17 | 27.26 | 0.1570 | -943.0 | -731.9 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 5.16 | 265.05 | -5.49 | 59.44 | 0.1112 | -942.0 | -771.5 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 6.96 | 264.77 | -5.78 | 48.71 | 0.1337 | -1118.0 | -888.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 8.87 | 264.29 | -6.26 | 41.71 | 0.1627 | -1043.0 | -828.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.81 | 264.08 | -6.47 | 42.90 | 0.1643 | -929.0 | -749.1 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.99 | 264.01 | -6.53 | 42.43 | 0.1673 | -818.0 | -551.1 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 7.79 | 263.58 | -6.96 | 49.59 | 0.1585 | -1086.0 | -835.9 | |
| 0.00 | 6.94 | 0.00 | 3.49 | 9.07 | 263.14 | -7.41 | 45.66 | 0.1789 | -650.0 | -774.1 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.33 | 263.00 | -7.55 | 49.35 | 0.1721 | -1101.0 | -936.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 14.42 | 262.19 | -8.36 | 33.05 | 0.2594 | -731.0 | -497.8 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 7.67 | 261.99 | -8.56 | 55.81 | 0.1792 | -872.0 | -654.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 9.93 | 261.87 | -8.67 | 46.81 | 0.2047 | -800.0 | -613.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.90 | 261.36 | -9.19 | 48.55 | 0.2109 | -825.0 | -646.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 9.86 | 249.67 | -20.88 | 68.26 | 0.3796 | 864.0 | 630.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 10.24 | 249.42 | -21.13 | 67.53 | 0.3855 | 990.0 | 849.1 | |
| 0.00 | 2.40 | 0.00 | 1.29 | 10.03 | 249.21 | -21.34 | 68.23 | 0.3875 | 1103.0 | 979.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 10.30 | 249.06 | -21.49 | 67.71 | 0.3912 | 832.0 | 696.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 10.66 | 248.84 | -21.71 | 67.04 | 0.3965 | 692.0 | 623.9 | |
| 0.00 | 2.83 | 0.00 | 1.52 | 8.74 | 248.90 | -21.64 | 71.65 | 0.3857 | 690.0 | 619.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 9.94 | 248.70 | -21.85 | 68.89 | 0.3947 | 1078.0 | 949.8 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 9.55 | 248.59 | -21.95 | 69.91 | 0.3943 | 938.0 | 825.3 | |
| 0.00 | 3.17 | 0.00 | 1.71 | 9.75 | 248.48 | -22.07 | 69.49 | 0.3970 | 972.0 | 846.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 10.71 | 248.25 | -22.30 | 67.42 | 0.4055 | 825.0 | 674.8 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 10.22 | 247.67 | -22.88 | 69.02 | 0.4116 | 826.0 | 629.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 10.43 | 247.42 | -23.13 | 68.73 | 0.4163 | 938.0 | 669.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 10.70 | 247.20 | -23.34 | 68.29 | 0.4209 | 709.0 | 602.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 10.72 | 247.00 | -23.54 | 68.38 | 0.4240 | 676.0 | 575.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 10.60 | 246.72 | -23.83 | 68.87 | 0.4276 | 674.0 | 553.6 | |
| 0.00 | 3.51 | 0.00 | 1.93 | 10.77 | 246.17 | -24.37 | 68.88 | 0.4364 | 851.0 | 612.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 12.44 | 244.78 | -25.77 | 66.40 | 0.4652 | 862.0 | 704.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
