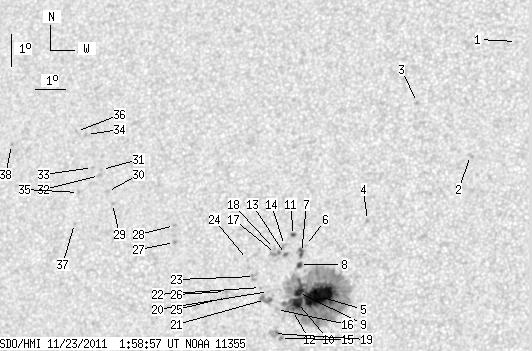

SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.19 | 354.68 | 30.97 | 189.28 | 14.13 | 252.21 | -18.34 | 55.04 | 0.3738 | -578.9 | -427.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.69 | 21.77 | 258.55 | -12.00 | 29.59 | 0.3926 | -628.0 | -454.3 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 18.21 | 257.36 | -13.19 | 37.64 | 0.3565 | -860.0 | -663.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 19.84 | 255.50 | -15.04 | 38.37 | 0.3951 | -847.0 | -724.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 16.19 | 254.22 | -16.33 | 47.49 | 0.3679 | 813.0 | 549.8 | |
| 37.19 | 284.36 | 19.76 | 151.11 | 13.86 | 252.84 | -17.71 | 54.81 | 0.3629 | -1391.1 | -496.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 15.41 | 252.29 | -18.26 | 52.17 | 0.3841 | -696.0 | -522.2 | |
| 3.34 | 5.14 | 1.79 | 2.76 | 15.19 | 252.18 | -18.37 | 52.79 | 0.3835 | -817.7 | -617.8 | |
| 2.49 | 3.94 | 1.33 | 2.11 | 14.83 | 252.15 | -18.40 | 53.63 | 0.3806 | -875.0 | -588.1 | |
| 4.63 | -5.00 | 2.47 | -5.00 | 13.98 | 252.19 | -18.36 | 55.47 | 0.3726 | -965.4 | 999999 | |
| 7.71 | -5.00 | 4.11 | -5.00 | 13.67 | 252.18 | -18.37 | 56.18 | 0.3701 | -1062.0 | 999999 | |
| 1.46 | 2.06 | 0.78 | 1.11 | 15.71 | 251.87 | -18.67 | 52.13 | 0.3922 | 555.3 | 596.1 | |
| 0.77 | -5.00 | 0.41 | -5.00 | 13.43 | 252.04 | -18.51 | 56.94 | 0.3700 | -853.9 | 999999 | |
| 0.60 | 1.63 | 0.32 | 0.88 | 15.12 | 251.67 | -18.88 | 53.65 | 0.3895 | -1052.7 | -830.2 | |
| 0.00 | 2.57 | 0.00 | 1.38 | 15.40 | 251.61 | -18.94 | 53.14 | 0.3927 | -653.0 | -508.2 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 12.58 | 251.72 | -18.83 | 59.37 | 0.3676 | -885.0 | -758.0 | |
| 0.00 | 2.14 | 0.00 | 1.15 | 13.46 | 251.52 | -19.02 | 57.56 | 0.3773 | -564.0 | -369.2 | |
| 0.00 | 3.77 | 0.00 | 2.03 | 15.15 | 251.34 | -19.21 | 54.03 | 0.3940 | -815.0 | -746.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 15.30 | 251.29 | -19.25 | 53.77 | 0.3960 | -306.0 | -286.0 | |
| 0.00 | 5.66 | 0.00 | 3.02 | 12.73 | 251.49 | -19.06 | 59.31 | 0.3721 | -592.0 | -613.0 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 14.00 | 251.22 | -19.33 | 56.72 | 0.3858 | -544.0 | -406.2 | |
| 0.00 | 7.03 | 0.00 | 3.77 | 13.75 | 251.14 | -19.40 | 57.36 | 0.3849 | -648.0 | -626.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 14.12 | 250.95 | -19.60 | 56.80 | 0.3904 | -712.0 | -531.6 | |
| 0.00 | 4.29 | 0.00 | 2.31 | 14.45 | 250.73 | -19.82 | 56.35 | 0.3962 | -370.0 | -586.6 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 14.96 | 250.45 | -20.10 | 55.60 | 0.4041 | -585.0 | -451.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 13.80 | 249.87 | -20.67 | 58.79 | 0.4026 | 813.0 | 643.3 | |
| 0.00 | 2.49 | 0.00 | 1.34 | 13.98 | 249.82 | -20.72 | 58.45 | 0.4047 | 990.0 | 716.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 15.45 | 247.99 | -22.56 | 57.44 | 0.4406 | 1039.0 | 833.3 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 15.97 | 247.93 | -22.62 | 56.48 | 0.4454 | 884.0 | 678.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 16.61 | 245.76 | -24.79 | 57.47 | 0.4786 | 864.0 | 617.8 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 16.98 | 245.53 | -25.01 | 57.01 | 0.4841 | 782.0 | 569.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 17.65 | 245.23 | -25.32 | 56.10 | 0.4930 | 752.0 | 626.4 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 17.46 | 245.19 | -25.36 | 56.46 | 0.4922 | 898.0 | 655.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 17.71 | 244.91 | -25.64 | 56.30 | 0.4975 | 707.0 | 551.3 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 18.72 | 244.54 | -26.01 | 54.89 | 0.5097 | 703.0 | 533.5 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 16.93 | 244.54 | -26.00 | 58.01 | 0.4966 | 738.0 | 488.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 18.81 | 244.18 | -26.37 | 55.08 | 0.5149 | 818.0 | 647.8 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 15.98 | 244.54 | -26.00 | 59.73 | 0.4900 | 682.0 | 539.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.37 | 241.96 | -28.59 | 57.72 | 0.5392 | 794.0 | 646.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
