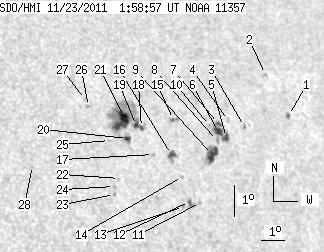

SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.39 | 150.85 | 29.17 | 104.71 | 18.36 | 312.77 | 42.22 | 294.56 | 0.7033 | -193.8 | 58.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 2.23 | 1.18 | 1.71 | 18.80 | 318.38 | 47.83 | 293.19 | 0.7657 | -534.9 | -601.4 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 20.09 | 317.81 | 47.26 | 295.01 | 0.7635 | -530.0 | -449.1 | |
| 0.00 | 1.89 | 0.00 | 1.39 | 18.51 | 316.26 | 45.71 | 293.48 | 0.7424 | -613.0 | -550.7 | |
| 0.00 | 1.80 | 0.00 | 1.31 | 18.71 | 315.61 | 45.07 | 293.96 | 0.7361 | -529.0 | -324.5 | |
| 3.17 | 19.54 | 2.29 | 14.10 | 18.19 | 315.35 | 44.80 | 293.36 | 0.7316 | -568.4 | -632.5 | |
| 5.74 | -5.00 | 4.14 | -5.00 | 18.38 | 315.06 | 44.51 | 293.71 | 0.7290 | -861.2 | 999999 | |
| 2.14 | -5.00 | 1.55 | -5.00 | 18.62 | 315.14 | 44.60 | 294.01 | 0.7307 | -624.0 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.54 | 18.10 | 314.93 | 44.38 | 293.39 | 0.7267 | -661.0 | -561.2 | |
| 10.63 | 16.88 | 7.58 | 12.02 | 17.68 | 314.58 | 44.03 | 292.94 | 0.7215 | -730.3 | -619.2 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 18.57 | 314.73 | 44.18 | 294.09 | 0.7260 | -684.0 | -611.8 | |
| 0.00 | 1.46 | 0.00 | 1.02 | 16.22 | 313.64 | 43.09 | 291.28 | 0.7063 | -542.0 | -461.1 | |
| 0.34 | 3.86 | 0.24 | 2.67 | 16.26 | 313.18 | 42.64 | 291.49 | 0.7012 | -835.2 | -709.7 | |
| 0.00 | 1.37 | 0.00 | 0.94 | 16.11 | 312.89 | 42.35 | 291.38 | 0.6973 | -864.0 | -698.3 | |
| 0.00 | 1.20 | 0.00 | 0.83 | 17.03 | 313.10 | 42.55 | 292.58 | 0.7027 | -649.0 | -517.6 | |
| 0.00 | 3.17 | 0.00 | 2.22 | 18.79 | 313.25 | 42.70 | 294.93 | 0.7103 | -782.0 | -713.0 | |
| 3.94 | 7.63 | 2.73 | 5.29 | 17.72 | 312.83 | 42.29 | 293.62 | 0.7019 | 567.1 | 343.8 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 17.73 | 312.08 | 41.54 | 293.93 | 0.6934 | -721.0 | -554.7 | |
| 1.63 | 71.30 | 1.12 | 48.50 | 18.57 | 311.83 | 41.28 | 295.20 | 0.6935 | 443.4 | 416.0 | |
| 1.97 | -18.00 | 1.35 | -18.00 | 18.64 | 311.64 | 41.09 | 295.37 | 0.6916 | 579.2 | 999999 | |
| 2.66 | 6.26 | 1.80 | 4.24 | 18.25 | 311.15 | 40.61 | 295.02 | 0.6845 | 630.5 | 434.1 | |
| 7.63 | -18.00 | 5.19 | -18.00 | 18.90 | 311.22 | 40.67 | 295.90 | 0.6878 | 917.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 17.03 | 310.50 | 39.95 | 293.57 | 0.6722 | 483.0 | 391.9 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 16.54 | 310.17 | 39.63 | 293.01 | 0.6665 | 586.0 | 516.5 | |
| 0.00 | 1.29 | 0.00 | 0.85 | 16.78 | 310.23 | 39.69 | 293.33 | 0.6682 | 619.0 | 462.9 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 18.20 | 310.40 | 39.86 | 295.28 | 0.6756 | 685.0 | 485.5 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 19.27 | 309.85 | 39.30 | 297.03 | 0.6736 | -487.0 | -416.3 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 19.49 | 309.79 | 39.24 | 297.37 | 0.6739 | -720.0 | -577.1 | |
| 0.00 | 0.34 | 0.00 | 0.22 | 17.49 | 307.17 | 36.62 | 295.76 | 0.6340 | 584.0 | 561.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
