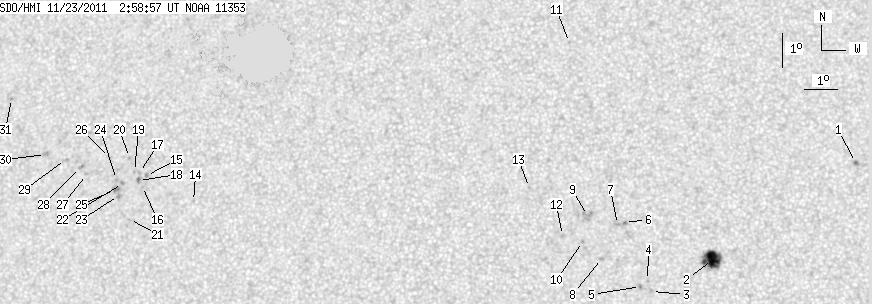

SDO HMI 2011-11-23 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.17 | 77.90 | 10.56 | 40.04 | 9.02 | 259.09 | -10.91 | 184.99 | 0.2344 | -188.2 | 4.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 1.80 | 0.60 | 0.90 | 10.69 | 271.22 | 1.22 | 352.19 | 0.1545 | -1021.6 | -774.3 | |
| 19.97 | 26.91 | 9.96 | 13.42 | 7.79 | 266.93 | -3.06 | 27.39 | 0.1157 | -1224.0 | -751.7 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 6.84 | 265.12 | -4.88 | 44.59 | 0.1209 | -761.0 | -675.1 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 7.16 | 265.00 | -5.00 | 43.44 | 0.1264 | -796.0 | -600.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.98 | 264.79 | -5.21 | 45.60 | 0.1268 | -1091.0 | -949.2 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 8.89 | 264.28 | -5.72 | 39.05 | 0.1570 | -891.0 | -807.0 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 8.83 | 264.07 | -5.93 | 40.30 | 0.1585 | -1002.0 | -783.0 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 7.81 | 263.61 | -6.39 | 47.03 | 0.1514 | -1080.0 | -829.3 | |
| 0.00 | 7.80 | 0.00 | 3.92 | 9.09 | 263.16 | -6.84 | 43.25 | 0.1723 | -943.0 | -781.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.32 | 263.03 | -6.97 | 47.12 | 0.1647 | -1107.0 | -885.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 14.29 | 262.48 | -7.52 | 30.62 | 0.2502 | -832.0 | -624.5 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.49 | 262.42 | -7.58 | 48.69 | 0.1745 | -838.0 | -589.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.92 | 261.39 | -8.61 | 46.61 | 0.2039 | -868.0 | -621.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 9.42 | 251.00 | -19.00 | 67.62 | 0.3488 | 813.0 | 647.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 10.18 | 249.45 | -20.54 | 67.13 | 0.3765 | 1016.0 | 823.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 9.85 | 249.35 | -20.65 | 68.06 | 0.3762 | 879.0 | 651.8 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 10.27 | 249.22 | -20.78 | 67.13 | 0.3805 | 789.0 | 572.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 10.03 | 249.21 | -20.79 | 67.74 | 0.3793 | 1083.0 | 971.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 10.30 | 249.06 | -20.94 | 67.21 | 0.3830 | 827.0 | 682.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 10.71 | 248.87 | -21.13 | 66.37 | 0.3883 | 819.0 | 706.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 8.86 | 248.99 | -21.01 | 70.86 | 0.3766 | 910.0 | 775.5 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 9.93 | 248.70 | -21.30 | 68.42 | 0.3865 | 1188.0 | 975.9 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 9.57 | 248.59 | -21.40 | 69.39 | 0.3862 | 845.0 | 784.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 10.05 | 248.50 | -21.50 | 68.30 | 0.3901 | 857.0 | 795.9 | |
| 0.00 | 3.77 | 0.00 | 2.03 | 9.75 | 248.49 | -21.51 | 69.04 | 0.3887 | 1000.0 | 858.5 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 10.71 | 248.22 | -21.78 | 66.97 | 0.3978 | 912.0 | 718.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 10.19 | 247.51 | -22.49 | 68.78 | 0.4056 | 657.0 | 588.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 10.39 | 247.30 | -22.70 | 68.46 | 0.4098 | 772.0 | 744.3 | |
| 0.00 | 2.06 | 0.00 | 1.12 | 10.63 | 246.79 | -23.21 | 68.32 | 0.4185 | 624.0 | 518.8 | |
| 0.00 | 3.00 | 0.00 | 1.64 | 10.77 | 246.12 | -23.88 | 68.51 | 0.4291 | 695.0 | 634.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 12.43 | 244.84 | -25.16 | 65.93 | 0.4567 | 880.0 | 716.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
