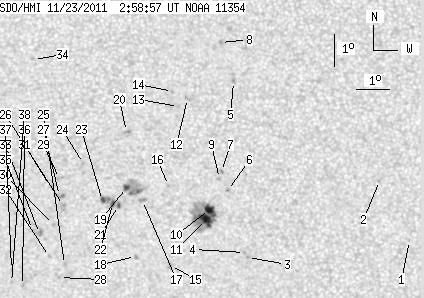

SDO HMI 2011-11-23 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.58 | 131.97 | 12.35 | 69.15 | -16.52 | 266.12 | -3.88 | 168.53 | 0.3261 | 103.9 | 18.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.73 | 273.96 | 3.96 | 191.08 | 0.3443 | 738.0 | 530.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -15.85 | 273.00 | 3.00 | 189.36 | 0.3108 | 547.0 | 591.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.26 | 268.92 | -1.08 | 177.04 | 0.3471 | 902.0 | 720.8 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -18.10 | 268.83 | -1.17 | 176.76 | 0.3446 | 860.0 | 717.7 | |
| 0.00 | 2.23 | 0.00 | 1.14 | -12.80 | 268.53 | -1.47 | 174.36 | 0.2566 | 929.0 | 746.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -16.16 | 268.32 | -1.68 | 174.81 | 0.3132 | 1051.0 | 829.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.57 | 268.14 | -1.86 | 174.06 | 0.3037 | 1221.0 | 908.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -11.61 | 268.14 | -1.86 | 172.26 | 0.2373 | 1031.0 | 818.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.79 | 268.07 | -1.92 | 173.94 | 0.3074 | 674.0 | 604.1 | |
| 4.89 | 50.05 | 2.56 | 26.23 | -16.76 | 267.76 | -2.24 | 173.33 | 0.3240 | 1272.5 | 572.5 | |
| 9.51 | -10.00 | 4.99 | -10.00 | -17.07 | 267.63 | -2.37 | 173.07 | 0.3293 | 1104.7 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.37 | -13.32 | 267.12 | -2.88 | 169.48 | 0.2687 | 886.0 | 697.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.57 | 266.84 | -3.15 | 168.68 | 0.2736 | 741.0 | 560.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.11 | 266.67 | -3.33 | 167.69 | 0.2667 | 891.0 | 770.2 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -18.52 | 266.51 | -3.48 | 170.63 | 0.3556 | 941.0 | 669.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.01 | 266.50 | -3.50 | 169.21 | 0.3149 | 594.0 | 502.4 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -16.48 | 265.69 | -4.31 | 167.14 | 0.3253 | -939.0 | -725.0 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -18.24 | 265.43 | -4.57 | 167.61 | 0.3544 | 800.0 | 657.8 | |
| 2.83 | 21.08 | 1.48 | 11.02 | -16.08 | 265.20 | -4.80 | 165.42 | 0.3207 | -1004.2 | -593.1 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -14.34 | 265.24 | -4.76 | 163.99 | 0.2926 | 730.0 | 675.0 | |
| 1.63 | 12.34 | 0.85 | 6.47 | -16.64 | 264.94 | -5.06 | 165.13 | 0.3308 | -916.8 | -911.1 | |
| 2.49 | -21.00 | 1.30 | -21.00 | -16.58 | 264.76 | -5.24 | 164.56 | 0.3306 | -1085.1 | 999999 | |
| 2.23 | -21.00 | 1.17 | -21.00 | -16.48 | 264.45 | -5.55 | 163.63 | 0.3305 | -961.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.33 | 263.89 | -6.11 | 160.92 | 0.3152 | -888.0 | -696.0 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.50 | 263.19 | -6.81 | 162.14 | 0.3680 | -793.0 | -638.2 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.64 | 263.23 | -6.77 | 160.47 | 0.3392 | -959.0 | -785.6 | |
| 0.00 | 3.60 | 0.00 | 1.89 | -16.33 | 263.12 | -6.88 | 159.84 | 0.3350 | -846.0 | -862.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.91 | 263.02 | -6.98 | 162.08 | 0.3753 | -863.0 | -629.0 | |
| 0.00 | 2.23 | 0.00 | 1.17 | -15.80 | 263.14 | -6.86 | 159.30 | 0.3268 | -778.0 | -697.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.24 | 262.90 | -7.10 | 160.21 | 0.3502 | -776.0 | -681.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.05 | 262.85 | -7.15 | 158.80 | 0.3323 | -804.0 | -628.1 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -18.25 | 262.73 | -7.27 | 160.78 | 0.3666 | -766.0 | -577.8 | |
| 0.00 | 3.77 | 0.00 | 2.00 | -17.52 | 262.45 | -7.55 | 159.36 | 0.3571 | -771.0 | -690.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.14 | 262.45 | -7.55 | 152.13 | 0.2759 | -690.0 | -565.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.40 | 262.23 | -7.76 | 158.70 | 0.3565 | -607.0 | -631.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.17 | 261.84 | -8.16 | 159.55 | 0.3855 | -752.0 | -634.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.66 | 261.51 | -8.48 | 158.31 | 0.3798 | -877.0 | -707.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.08 | 261.49 | -8.51 | 158.68 | 0.3861 | -788.0 | -641.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
