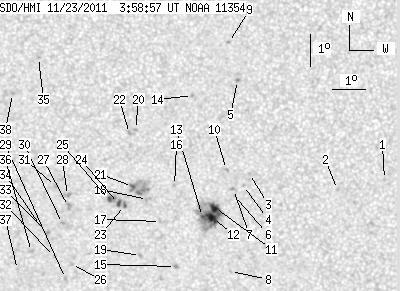

SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.06 | 136.34 | 10.51 | 71.41 | -16.54 | 266.17 | -3.28 | 170.26 | 0.3246 | 111.0 | 18.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.86 | 272.97 | 3.52 | 190.96 | 0.3124 | 693.0 | 600.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.17 | 271.53 | 2.08 | 186.40 | 0.3138 | 859.0 | 653.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -15.67 | 268.82 | -0.63 | 177.98 | 0.3037 | 799.0 | 581.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.04 | 268.63 | -0.82 | 177.45 | 0.3101 | 854.0 | 588.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.80 | 268.46 | -0.99 | 176.21 | 0.2558 | 949.0 | 768.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.35 | 268.35 | -1.10 | 176.64 | 0.3155 | 782.0 | 600.2 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -16.17 | 268.32 | -1.13 | 176.52 | 0.3124 | 1000.0 | 740.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -18.74 | 268.21 | -1.24 | 176.68 | 0.3550 | 591.0 | 453.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.64 | 268.19 | -1.26 | 174.76 | 0.2366 | 1041.0 | 724.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.55 | 268.11 | -1.34 | 175.71 | 0.3023 | 1127.0 | 819.8 | |
| 4.20 | 54.60 | 2.20 | 28.60 | -16.73 | 267.73 | -1.72 | 174.87 | 0.3225 | 1285.8 | 546.0 | |
| 7.37 | -11.00 | 3.86 | -11.00 | -17.07 | 267.67 | -1.78 | 174.78 | 0.3283 | 1164.1 | 999999 | |
| 1.03 | -11.00 | 0.54 | -11.00 | -17.01 | 267.36 | -2.09 | 173.86 | 0.3277 | 897.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -13.26 | 267.09 | -2.36 | 171.30 | 0.2661 | 993.0 | 762.1 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -18.59 | 266.50 | -2.96 | 172.06 | 0.3552 | 922.0 | 794.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.05 | 266.51 | -2.95 | 170.90 | 0.3137 | 813.0 | 583.8 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -17.17 | 266.05 | -3.40 | 170.18 | 0.3333 | -879.0 | -603.4 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -16.48 | 265.66 | -3.79 | 168.65 | 0.3234 | -965.0 | -666.9 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -18.24 | 265.41 | -4.04 | 169.00 | 0.3526 | 852.0 | 644.1 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -14.31 | 265.34 | -4.11 | 166.03 | 0.2893 | 955.0 | 806.1 | |
| 1.54 | 21.34 | 0.81 | 11.14 | -16.08 | 265.21 | -4.24 | 167.04 | 0.3184 | -999.6 | -600.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -14.44 | 265.15 | -4.30 | 165.53 | 0.2920 | 672.0 | 554.9 | |
| 1.29 | 11.31 | 0.67 | 5.93 | -16.67 | 264.95 | -4.50 | 166.72 | 0.3289 | -873.1 | -969.3 | |
| 2.23 | -23.00 | 1.17 | -23.00 | -16.61 | 264.76 | -4.69 | 166.15 | 0.3287 | -1076.2 | 999999 | |
| 2.40 | -23.00 | 1.26 | -23.00 | -16.49 | 264.49 | -4.96 | 165.27 | 0.3278 | -960.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -18.53 | 263.24 | -6.21 | 163.63 | 0.3656 | -811.0 | -579.0 | |
| 0.00 | 3.51 | 0.00 | 1.85 | -16.71 | 263.21 | -6.24 | 161.93 | 0.3373 | -919.0 | -829.5 | |
| 0.00 | 4.11 | 0.00 | 2.16 | -16.37 | 263.19 | -6.26 | 161.54 | 0.3320 | -1159.0 | -857.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.98 | 263.03 | -6.42 | 163.48 | 0.3734 | -764.0 | -610.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.24 | 263.00 | -6.45 | 161.90 | 0.3467 | -833.0 | -680.9 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.09 | 262.83 | -6.63 | 160.26 | 0.3297 | -767.0 | -570.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -18.28 | 262.71 | -6.74 | 162.11 | 0.3642 | -771.0 | -579.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -17.53 | 262.52 | -6.93 | 160.93 | 0.3536 | -998.0 | -835.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.31 | 262.31 | -7.14 | 160.18 | 0.3513 | -891.0 | -750.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.11 | 262.42 | -7.03 | 153.72 | 0.2714 | -940.0 | -719.9 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -18.13 | 262.00 | -7.45 | 160.21 | 0.3656 | -771.0 | -466.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.70 | 261.53 | -7.92 | 159.65 | 0.3769 | -966.0 | -740.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.22 | 261.60 | -7.86 | 152.97 | 0.2942 | -805.0 | -594.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
