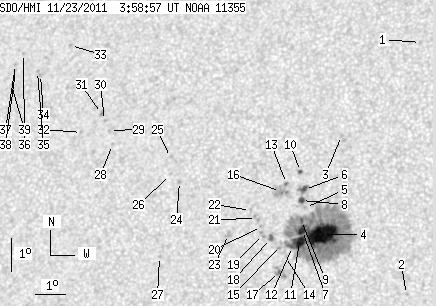

SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.49 | 347.91 | 36.79 | 184.76 | 14.16 | 252.02 | -17.43 | 53.61 | 0.3619 | -595.3 | -400.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | 19.80 | 255.52 | -13.94 | 36.35 | 0.3840 | -893.0 | -649.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 12.10 | 255.62 | -13.83 | 52.76 | 0.2950 | -825.0 | -683.6 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 16.91 | 253.22 | -16.23 | 45.82 | 0.3745 | -870.0 | -573.5 | |
| 40.11 | 276.85 | 21.18 | 146.26 | 13.89 | 252.86 | -16.59 | 53.02 | 0.3486 | -1399.7 | -480.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 14.70 | 252.25 | -17.20 | 52.09 | 0.3641 | -897.0 | -728.6 | |
| 3.17 | 5.14 | 1.69 | 2.74 | 15.25 | 252.17 | -17.28 | 51.00 | 0.3703 | -836.6 | -671.9 | |
| 5.31 | -4.00 | 2.82 | -4.00 | 14.00 | 252.21 | -17.24 | 53.75 | 0.3581 | -1000.3 | 999999 | |
| 2.91 | 3.51 | 1.55 | 1.87 | 14.91 | 252.11 | -17.34 | 51.85 | 0.3680 | -900.3 | -782.3 | |
| 1.63 | -4.00 | 0.86 | -4.00 | 14.31 | 252.16 | -17.30 | 53.14 | 0.3616 | -589.2 | 999999 | |
| 1.11 | 1.46 | 0.60 | 0.78 | 15.79 | 252.00 | -17.45 | 50.10 | 0.3778 | 540.5 | 401.0 | |
| 9.60 | -4.00 | 5.08 | -4.00 | 13.67 | 252.14 | -17.31 | 54.64 | 0.3560 | -1025.4 | 999999 | |
| 0.77 | -4.00 | 0.41 | -4.00 | 13.52 | 251.93 | -17.52 | 55.32 | 0.3575 | -781.6 | 999999 | |
| 1.11 | 1.63 | 0.60 | 0.87 | 15.42 | 251.58 | -17.87 | 51.53 | 0.3795 | -658.4 | -366.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 13.21 | 251.73 | -17.72 | 56.33 | 0.3576 | -699.0 | -449.8 | |
| 0.00 | 3.26 | 0.00 | 1.73 | 13.54 | 251.54 | -17.91 | 55.81 | 0.3630 | -491.0 | -458.3 | |
| 0.00 | 10.03 | 0.00 | 5.36 | 15.18 | 251.41 | -18.04 | 52.31 | 0.3794 | -723.0 | -626.3 | |
| 1.03 | 7.54 | 0.54 | 3.99 | 12.73 | 251.57 | -17.88 | 57.73 | 0.3557 | -751.9 | -588.0 | |
| 2.74 | 3.00 | 1.46 | 1.60 | 13.75 | 251.21 | -18.24 | 55.80 | 0.3693 | -781.3 | -638.2 | |
| 0.00 | 2.49 | 0.00 | 1.33 | 13.87 | 250.94 | -18.51 | 55.89 | 0.3739 | -568.0 | -573.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 14.11 | 250.89 | -18.56 | 55.41 | 0.3767 | -614.0 | -519.5 | |
| 0.00 | 2.66 | 0.00 | 1.42 | 14.35 | 250.71 | -18.75 | 55.12 | 0.3812 | -806.0 | -648.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 14.59 | 250.49 | -18.96 | 54.88 | 0.3861 | -668.0 | -448.4 | |
| 0.00 | 3.69 | 0.00 | 1.98 | 13.86 | 249.84 | -19.61 | 57.35 | 0.3886 | 761.0 | 684.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 15.45 | 248.09 | -21.37 | 56.08 | 0.4250 | 1015.0 | 792.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 16.18 | 247.71 | -21.74 | 55.06 | 0.4359 | 764.0 | 596.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 15.66 | 247.77 | -21.69 | 56.02 | 0.4309 | 658.0 | 562.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 13.17 | 247.66 | -21.79 | 61.36 | 0.4136 | 782.0 | 620.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.55 | 245.72 | -23.73 | 56.51 | 0.4646 | 540.0 | 496.0 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.98 | 245.56 | -23.89 | 55.87 | 0.4699 | 788.0 | 571.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 17.28 | 245.35 | -24.10 | 55.53 | 0.4750 | 790.0 | 626.0 | |
| 0.00 | 2.49 | 0.00 | 1.40 | 17.49 | 245.22 | -24.24 | 55.28 | 0.4783 | 949.0 | 721.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 16.90 | 244.62 | -24.83 | 56.94 | 0.4814 | 519.0 | 510.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 19.58 | 243.82 | -25.63 | 53.06 | 0.5120 | 723.0 | 623.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 18.67 | 242.93 | -26.52 | 55.43 | 0.5159 | 755.0 | 595.4 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 18.76 | 242.81 | -26.64 | 55.39 | 0.5180 | 746.0 | 617.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 19.31 | 242.22 | -27.23 | 55.00 | 0.5293 | 690.0 | 541.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 18.96 | 242.00 | -27.45 | 55.77 | 0.5295 | 738.0 | 530.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.78 | 242.03 | -27.42 | 56.05 | 0.5277 | 606.0 | 475.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 18.34 | 241.97 | -27.49 | 56.83 | 0.5255 | 779.0 | 564.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
