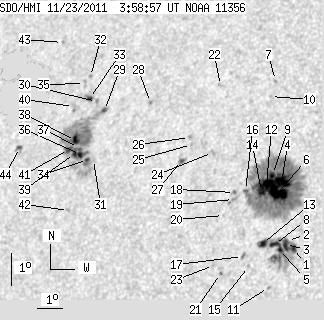

SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.33 | 487.97 | 51.23 | 313.92 | 14.95 | 231.60 | -37.85 | 68.53 | 0.6376 | -488.4 | -159.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 61.11 | 2.14 | 37.44 | 12.92 | 235.22 | -34.23 | 70.29 | 0.5846 | 601.3 | -440.1 | |
| 1.20 | -1.00 | 0.73 | -1.00 | 13.16 | 234.96 | -34.49 | 70.01 | 0.5890 | 176.4 | 999999 | |
| 3.60 | -1.00 | 2.20 | -1.00 | 13.03 | 234.91 | -34.54 | 70.23 | 0.5892 | -689.4 | 999999 | |
| 12.60 | 261.25 | 7.80 | 162.15 | 14.91 | 234.44 | -35.02 | 67.42 | 0.6028 | -1206.0 | -439.7 | |
| 1.46 | -1.00 | 0.89 | -1.00 | 12.88 | 234.71 | -34.74 | 70.57 | 0.5913 | -1001.2 | 999999 | |
| 16.29 | -4.00 | 10.09 | -4.00 | 14.60 | 234.34 | -35.11 | 67.95 | 0.6027 | -1332.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 18.02 | 233.55 | -35.90 | 63.06 | 0.6278 | -708.0 | -606.6 | |
| 3.17 | -1.00 | 1.95 | -1.00 | 13.03 | 234.50 | -34.95 | 70.42 | 0.5946 | -921.4 | 999999 | |
| 1.89 | -4.00 | 1.17 | -4.00 | 15.14 | 234.05 | -35.40 | 67.23 | 0.6087 | -860.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.76 | 17.52 | 233.47 | -35.98 | 63.85 | 0.6264 | -737.0 | -596.5 | |
| 0.00 | 1.46 | 0.00 | 0.89 | 11.73 | 234.48 | -34.97 | 72.56 | 0.5905 | 867.0 | 652.8 | |
| 6.77 | -4.00 | 4.22 | -4.00 | 14.87 | 233.88 | -35.57 | 67.75 | 0.6098 | -954.6 | 999999 | |
| 4.37 | -1.00 | 2.70 | -1.00 | 13.05 | 234.05 | -35.40 | 70.57 | 0.6007 | -776.4 | 999999 | |
| 4.89 | -4.00 | 3.05 | -4.00 | 14.62 | 233.74 | -35.71 | 68.20 | 0.6106 | -823.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 12.35 | 233.64 | -35.81 | 71.87 | 0.6037 | -448.0 | -380.6 | |
| 0.69 | -4.00 | 0.43 | -4.00 | 14.64 | 233.13 | -36.32 | 68.44 | 0.6185 | -616.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.28 | 12.64 | 233.37 | -36.08 | 71.50 | 0.6083 | -639.0 | -503.0 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 14.57 | 232.72 | -36.73 | 68.72 | 0.6235 | -676.0 | -542.6 | |
| 0.00 | 4.20 | 0.00 | 2.65 | 14.36 | 232.72 | -36.73 | 69.05 | 0.6227 | -676.0 | -478.4 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 13.87 | 232.43 | -37.02 | 69.93 | 0.6246 | -432.0 | -323.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 12.12 | 232.62 | -36.83 | 72.61 | 0.6164 | 892.0 | 699.3 | |
| 0.00 | 1.97 | 0.00 | 1.28 | 17.82 | 231.45 | -38.00 | 64.40 | 0.6523 | -525.0 | -475.7 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 12.35 | 232.32 | -37.13 | 72.34 | 0.6211 | 469.0 | 318.7 | |
| 0.00 | 1.71 | 0.00 | 1.10 | 15.77 | 231.62 | -37.83 | 67.36 | 0.6418 | -816.0 | -657.4 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 16.00 | 230.74 | -38.71 | 67.40 | 0.6535 | -709.0 | -617.0 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 16.21 | 230.62 | -38.84 | 67.14 | 0.6558 | -630.0 | -555.6 | |
| 2.06 | 3.86 | 1.34 | 2.52 | 15.50 | 230.46 | -38.99 | 68.24 | 0.6552 | -738.3 | -594.5 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 17.24 | 228.78 | -40.67 | 66.39 | 0.6816 | -724.0 | -593.2 | |
| 1.80 | 117.51 | 1.25 | 82.12 | 16.96 | 226.95 | -42.50 | 67.48 | 0.7019 | -372.2 | 496.2 | |
| 0.00 | 2.06 | 0.00 | 1.44 | 17.23 | 226.53 | -42.92 | 67.26 | 0.7076 | -587.0 | -310.5 | |
| 0.00 | 1.46 | 0.00 | 1.00 | 15.46 | 226.89 | -42.56 | 69.59 | 0.6980 | 767.0 | 593.1 | |
| 0.00 | 1.29 | 0.00 | 0.91 | 17.99 | 226.05 | -43.40 | 66.40 | 0.7155 | -555.0 | -495.0 | |
| 2.06 | 3.43 | 1.44 | 2.41 | 17.31 | 226.21 | -43.24 | 67.26 | 0.7115 | -457.5 | -336.2 | |
| 1.54 | -29.00 | 1.07 | -29.00 | 15.45 | 226.64 | -42.81 | 69.68 | 0.7009 | 892.1 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.06 | 17.77 | 225.86 | -43.59 | 66.77 | 0.7170 | -361.0 | -363.0 | |
| 2.14 | -29.00 | 1.49 | -29.00 | 15.60 | 226.31 | -43.15 | 69.58 | 0.7052 | 1003.8 | 999999 | |
| 0.34 | -29.00 | 0.24 | -29.00 | 15.81 | 226.17 | -43.29 | 69.34 | 0.7074 | 945.2 | 999999 | |
| 3.09 | -29.00 | 2.16 | -29.00 | 16.02 | 225.98 | -43.47 | 69.11 | 0.7102 | 1085.9 | 999999 | |
| 1.20 | -29.00 | 0.84 | -29.00 | 15.62 | 226.04 | -43.41 | 69.63 | 0.7083 | 874.5 | 999999 | |
| 0.00 | 3.51 | 0.00 | 2.49 | 17.05 | 225.60 | -43.85 | 67.82 | 0.7176 | 312.0 | 425.8 | |
| 3.69 | -29.00 | 2.59 | -29.00 | 15.74 | 225.76 | -43.69 | 69.56 | 0.7119 | 554.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.13 | 13.89 | 226.22 | -43.23 | 71.99 | 0.7015 | 710.0 | 515.3 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 19.01 | 224.49 | -44.96 | 65.59 | 0.7360 | -693.0 | -572.6 | |
| 1.97 | 4.29 | 1.44 | 3.12 | 15.75 | 223.62 | -45.83 | 70.18 | 0.7362 | -487.6 | -370.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
