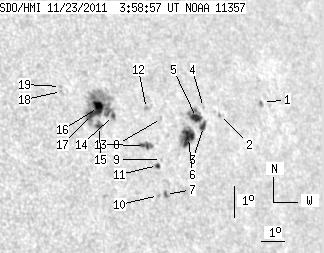

SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.69 | 134.06 | 30.56 | 95.11 | 18.36 | 312.90 | 43.45 | 294.12 | 0.7171 | -201.3 | 23.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 2.31 | 0.47 | 1.82 | 18.88 | 318.56 | 49.10 | 292.94 | 0.7789 | -651.9 | -595.3 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 18.56 | 316.41 | 46.96 | 293.16 | 0.7560 | -608.0 | -473.5 | |
| 3.69 | 19.63 | 2.73 | 14.50 | 18.21 | 315.56 | 46.11 | 292.97 | 0.7459 | -627.4 | -621.3 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 18.79 | 315.77 | 46.31 | 293.67 | 0.7498 | -358.0 | -320.4 | |
| 6.00 | -3.00 | 4.43 | -3.00 | 18.49 | 315.34 | 45.89 | 293.41 | 0.7444 | -853.7 | 999999 | |
| 11.57 | 23.31 | 8.44 | 16.99 | 17.88 | 314.78 | 45.33 | 292.80 | 0.7365 | -780.7 | -678.6 | |
| 1.63 | 3.00 | 1.15 | 2.12 | 16.16 | 313.25 | 43.80 | 290.99 | 0.7144 | -777.1 | -689.0 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 18.49 | 313.79 | 44.34 | 293.94 | 0.7276 | 384.0 | 285.0 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 17.24 | 313.39 | 43.94 | 292.40 | 0.7192 | 189.0 | 72.2 | |
| 0.00 | 1.37 | 0.00 | 0.96 | 16.14 | 312.95 | 43.50 | 291.05 | 0.7108 | -724.0 | -639.2 | |
| 1.46 | 2.40 | 1.03 | 1.70 | 17.06 | 313.17 | 43.72 | 292.23 | 0.7161 | -660.6 | -598.2 | |
| 0.00 | 2.23 | 0.00 | 1.59 | 18.82 | 313.24 | 43.79 | 294.57 | 0.7226 | -809.0 | -696.5 | |
| 3.94 | 7.20 | 2.78 | 5.08 | 17.68 | 312.80 | 43.34 | 293.20 | 0.7139 | 643.0 | 500.9 | |
| 1.63 | 66.77 | 1.13 | 46.20 | 18.63 | 311.76 | 42.31 | 294.88 | 0.7055 | 442.5 | 419.9 | |
| 2.49 | -14.00 | 1.71 | -14.00 | 18.31 | 311.08 | 41.62 | 294.71 | 0.6965 | 675.1 | 999999 | |
| 6.94 | -14.00 | 4.80 | -14.00 | 18.89 | 311.21 | 41.76 | 295.46 | 0.7002 | 940.5 | 999999 | |
| 2.74 | -14.00 | 1.89 | -14.00 | 18.68 | 310.85 | 41.40 | 295.32 | 0.6954 | 935.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 19.42 | 309.83 | 40.38 | 296.77 | 0.6867 | -523.0 | -419.2 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 19.58 | 309.83 | 40.38 | 296.98 | 0.6874 | -622.0 | -485.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
