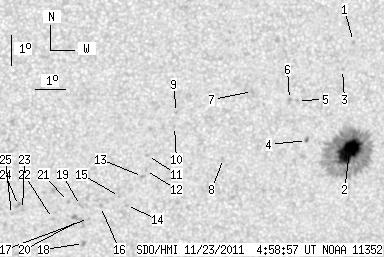

SDO HMI 2011-11-23 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.06 | 208.10 | 20.14 | 119.34 | -24.71 | 283.33 | 14.43 | 206.76 | 0.5053 | 354.1 | 219.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | -20.96 | 284.26 | 15.35 | 212.54 | 0.4616 | 581.0 | 496.8 | |
| 33.77 | 172.03 | 19.41 | 98.92 | -24.55 | 284.54 | 15.64 | 208.89 | 0.5097 | 1256.3 | 372.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -21.86 | 283.99 | 15.09 | 211.00 | 0.4710 | 704.0 | 596.1 | |
| 1.29 | 1.97 | 0.73 | 1.12 | -24.17 | 283.05 | 14.15 | 206.94 | 0.4942 | 717.9 | 677.4 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -22.86 | 282.61 | 13.70 | 207.57 | 0.4736 | 686.0 | 414.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -22.82 | 282.34 | 13.44 | 207.16 | 0.4712 | 800.0 | 691.2 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -22.55 | 281.10 | 12.19 | 205.26 | 0.4590 | 759.0 | 584.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -24.74 | 280.34 | 11.44 | 201.90 | 0.4849 | -658.0 | -493.6 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -23.22 | 278.66 | 9.76 | 200.16 | 0.4538 | -807.0 | -612.4 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -23.68 | 278.63 | 9.73 | 199.73 | 0.4603 | -750.0 | -592.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -24.63 | 277.81 | 8.91 | 197.50 | 0.4701 | -789.0 | -656.8 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -25.13 | 277.78 | 8.88 | 197.10 | 0.4772 | -808.0 | -666.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -25.33 | 277.70 | 8.79 | 196.82 | 0.4797 | -848.0 | -665.1 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.29 | 277.24 | 8.33 | 195.38 | 0.4919 | -619.0 | -458.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -25.99 | 276.98 | 8.08 | 195.12 | 0.4864 | -664.0 | -522.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -26.32 | 276.37 | 7.47 | 193.84 | 0.4890 | -851.0 | -762.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -26.73 | 276.00 | 7.09 | 192.97 | 0.4936 | -530.0 | -478.3 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -27.57 | 275.88 | 6.98 | 192.35 | 0.5057 | -696.0 | -612.5 | |
| 0.00 | 1.97 | 0.00 | 1.12 | -26.29 | 275.71 | 6.80 | 192.67 | 0.4861 | -776.0 | -623.0 | |
| 0.00 | 6.34 | 0.00 | 3.61 | -26.79 | 275.70 | 6.80 | 192.41 | 0.4936 | -679.0 | -638.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -26.15 | 275.30 | 6.39 | 192.00 | 0.4827 | -1031.0 | -761.0 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -26.72 | 274.80 | 5.89 | 190.84 | 0.4897 | -455.0 | -488.9 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -26.41 | 273.78 | 4.88 | 189.12 | 0.4824 | -709.0 | -610.6 | |
| 0.00 | 2.66 | 0.00 | 1.50 | -26.28 | 273.65 | 4.74 | 188.92 | 0.4801 | -922.0 | -698.2 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -26.58 | 273.43 | 4.52 | 188.41 | 0.4841 | -570.0 | -498.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
