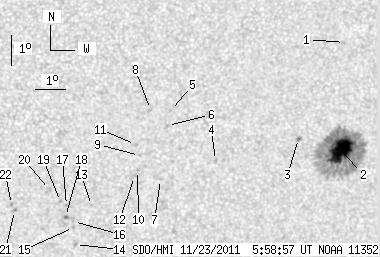

SDO HMI 2011-11-23 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.05 | 200.48 | 18.46 | 115.29 | -24.62 | 283.61 | 15.25 | 208.12 | 0.5092 | 237.2 | 234.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.67 | -21.01 | 284.21 | 15.85 | 213.31 | 0.4663 | 478.0 | 411.6 | |
| 30.34 | 173.57 | 17.49 | 100.09 | -24.53 | 284.54 | 16.18 | 209.72 | 0.5133 | 1273.0 | 367.7 | |
| 1.37 | 1.80 | 0.78 | 1.03 | -24.12 | 283.03 | 14.68 | 207.85 | 0.4971 | 759.3 | 745.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -24.82 | 280.34 | 11.98 | 202.75 | 0.4890 | -593.0 | -530.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.17 | 278.70 | 10.34 | 201.31 | 0.4562 | -831.0 | -689.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -23.66 | 278.64 | 10.28 | 200.78 | 0.4629 | -723.0 | -569.2 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -25.44 | 278.56 | 10.20 | 199.21 | 0.4880 | -728.0 | -535.5 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.13 | 278.04 | 9.69 | 200.11 | 0.4520 | -700.0 | -676.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -24.64 | 277.80 | 9.44 | 198.46 | 0.4727 | -711.0 | -597.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.14 | 277.77 | 9.41 | 198.05 | 0.4797 | -744.0 | -559.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -24.28 | 277.64 | 9.28 | 198.44 | 0.4666 | -299.0 | -399.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -25.34 | 277.69 | 9.33 | 197.76 | 0.4822 | -844.0 | -646.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -26.30 | 276.33 | 7.97 | 194.74 | 0.4904 | -656.0 | -502.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -27.62 | 275.88 | 7.52 | 193.25 | 0.5081 | -702.0 | -572.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -27.04 | 275.77 | 7.42 | 193.37 | 0.4992 | -605.0 | -524.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -26.84 | 275.76 | 7.40 | 193.45 | 0.4962 | -647.0 | -567.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -26.30 | 275.49 | 7.13 | 193.26 | 0.4873 | -910.0 | -712.1 | |
| 0.34 | 1.29 | 0.19 | 0.73 | -26.67 | 275.48 | 7.12 | 193.05 | 0.4927 | -890.5 | -827.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -26.16 | 275.28 | 6.93 | 192.96 | 0.4846 | -947.0 | -722.0 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -25.76 | 274.90 | 6.54 | 192.46 | 0.4772 | -755.0 | -645.8 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -26.46 | 273.77 | 5.41 | 190.08 | 0.4844 | -777.0 | -628.4 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -26.26 | 273.66 | 5.30 | 189.97 | 0.4810 | -981.0 | -859.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
