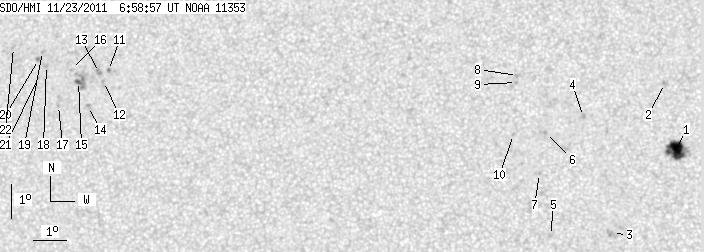

SDO HMI 2011-11-23 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.45 | 82.96 | 11.23 | 42.39 | 8.60 | 258.76 | -9.05 | 37.85 | 0.2114 | -343.1 | 82.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.08 | 31.97 | 10.50 | 15.92 | 7.82 | 266.90 | -0.91 | 8.70 | 0.1050 | -1204.8 | -665.9 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 9.79 | 266.56 | -1.25 | 8.89 | 0.1397 | -876.0 | -528.6 | |
| 0.00 | 6.09 | 0.00 | 3.02 | 5.33 | 265.03 | -2.78 | 38.90 | 0.0774 | -832.0 | -706.9 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 8.80 | 264.14 | -3.67 | 27.75 | 0.1366 | -939.0 | -756.5 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 5.27 | 263.18 | -4.63 | 53.77 | 0.1001 | -792.0 | -697.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 8.32 | 263.00 | -4.81 | 36.50 | 0.1401 | -1089.0 | -909.7 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 7.10 | 262.84 | -4.97 | 43.43 | 0.1258 | -881.0 | -652.1 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 10.02 | 262.14 | -5.68 | 34.54 | 0.1726 | -968.0 | -775.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.81 | 262.11 | -5.70 | 35.38 | 0.1699 | -1003.0 | -762.0 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.26 | 262.04 | -5.77 | 41.85 | 0.1498 | -815.0 | -645.6 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 10.09 | 249.54 | -18.28 | 64.97 | 0.3422 | 1007.0 | 854.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 9.76 | 249.40 | -18.41 | 66.02 | 0.3422 | 833.0 | 677.7 | |
| 0.00 | 2.66 | 0.00 | 1.40 | 10.03 | 249.26 | -18.56 | 65.46 | 0.3460 | 1081.0 | 952.4 | |
| 0.00 | 2.49 | 0.00 | 1.31 | 9.01 | 248.97 | -18.85 | 68.52 | 0.3444 | 953.0 | 746.7 | |
| 1.37 | 13.80 | 0.73 | 7.30 | 9.75 | 248.61 | -19.21 | 66.88 | 0.3541 | 1012.2 | 849.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 10.11 | 248.36 | -19.45 | 66.19 | 0.3599 | 777.0 | 621.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 9.03 | 248.01 | -19.80 | 69.35 | 0.3591 | 709.0 | 569.8 | |
| 0.00 | 2.40 | 0.00 | 1.28 | 10.22 | 247.55 | -20.26 | 66.70 | 0.3727 | 808.0 | 617.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 10.63 | 247.40 | -20.42 | 65.82 | 0.3775 | 797.0 | 684.3 | |
| 0.00 | 2.14 | 0.00 | 1.15 | 10.39 | 247.28 | -20.53 | 66.52 | 0.3777 | 906.0 | 748.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 9.86 | 247.32 | -20.49 | 67.83 | 0.3741 | 731.0 | 558.0 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 10.74 | 246.45 | -21.36 | 66.44 | 0.3921 | 790.0 | 628.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
