SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.34 | 206.56 | 17.57 | 119.34 | -24.73 | 283.23 | 15.97 | 209.09 | 0.5160 | 192.1 | 209.4 | |
|
previous
or next observation for the same group /

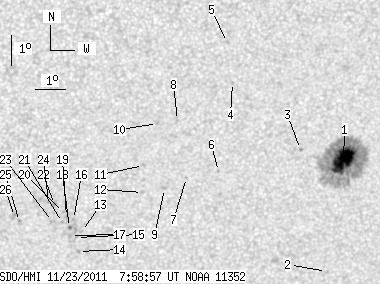

back to the solar disc SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.23 | 172.01 | 16.93 | 99.71 | -24.52 | 284.49 | 17.23 | 211.29 | 0.5209 | 1258.5 | 367.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -28.25 | 284.48 | 17.21 | 207.50 | 0.5668 | 409.0 | 520.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -24.14 | 282.99 | 15.72 | 209.46 | 0.5047 | 788.0 | 693.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -21.93 | 280.48 | 13.21 | 207.75 | 0.4573 | 738.0 | 591.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -20.64 | 280.20 | 12.93 | 208.71 | 0.4378 | 900.0 | 597.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -24.84 | 280.31 | 13.05 | 204.52 | 0.4956 | -799.0 | -610.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -25.03 | 279.26 | 11.99 | 202.61 | 0.4918 | -581.0 | -487.5 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -23.15 | 278.79 | 11.52 | 203.48 | 0.4628 | -721.0 | -503.5 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -25.40 | 278.56 | 11.29 | 201.13 | 0.4929 | -754.0 | -559.6 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -23.25 | 278.14 | 10.87 | 202.22 | 0.4602 | -948.0 | -799.6 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -24.63 | 277.79 | 10.53 | 200.43 | 0.4778 | -751.0 | -581.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -25.52 | 277.84 | 10.57 | 199.80 | 0.4908 | -595.0 | -357.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -26.82 | 275.91 | 8.64 | 195.60 | 0.5005 | -537.0 | -480.6 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -27.50 | 275.86 | 8.59 | 195.12 | 0.5101 | -912.0 | -697.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -27.02 | 275.75 | 8.49 | 195.22 | 0.5028 | -722.0 | -504.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -26.42 | 275.61 | 8.34 | 195.33 | 0.4934 | -838.0 | -657.8 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -26.96 | 275.55 | 8.28 | 194.91 | 0.5010 | -662.0 | -544.9 | |
| 1.11 | 4.80 | 0.64 | 2.74 | -26.69 | 275.49 | 8.23 | 194.97 | 0.4968 | -884.0 | -653.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.31 | 275.37 | 8.10 | 194.97 | 0.4909 | -804.0 | -700.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -26.18 | 275.26 | 7.99 | 194.86 | 0.4885 | -924.0 | -739.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -26.52 | 275.25 | 7.98 | 194.64 | 0.4934 | -858.0 | -648.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -25.91 | 274.94 | 7.67 | 194.45 | 0.4833 | -851.0 | -771.5 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.48 | 274.91 | 7.64 | 194.07 | 0.4916 | -737.0 | -659.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -25.81 | 274.73 | 7.47 | 194.13 | 0.4810 | -765.0 | -669.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -26.48 | 273.81 | 6.54 | 192.12 | 0.4877 | -892.0 | -700.6 | |
| 0.00 | 2.83 | 0.00 | 1.60 | -26.31 | 273.63 | 6.37 | 191.89 | 0.4846 | -938.0 | -719.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
