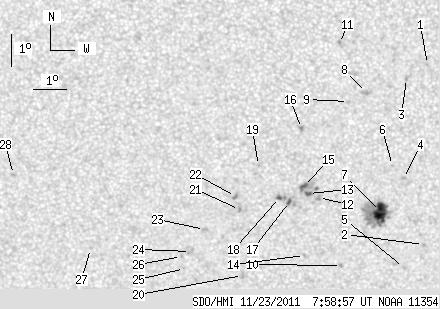

SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.88 | 115.45 | 11.96 | 60.34 | -16.50 | 266.10 | -1.17 | 176.63 | 0.3197 | 206.4 | 60.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.37 | 269.10 | 1.83 | 187.21 | 0.2495 | 785.0 | 602.1 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.95 | 269.02 | 1.75 | 184.90 | 0.3421 | 828.0 | 687.7 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -12.80 | 268.46 | 1.19 | 184.58 | 0.2556 | 869.0 | 703.4 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -15.89 | 268.39 | 1.12 | 183.52 | 0.3072 | 861.0 | 748.5 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.68 | 268.40 | 1.14 | 183.06 | 0.3533 | 665.0 | 550.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -15.48 | 268.05 | 0.78 | 182.51 | 0.3002 | 909.0 | 728.0 | |
| 15.60 | 50.14 | 8.16 | 26.25 | -16.91 | 267.68 | 0.41 | 181.23 | 0.3238 | 1206.9 | 500.7 | |
| 0.00 | 4.37 | 0.00 | 2.24 | -13.23 | 267.25 | -0.02 | 179.93 | 0.2620 | 948.0 | 695.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -13.51 | 266.70 | -0.57 | 177.92 | 0.2669 | 768.0 | 581.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -18.61 | 266.47 | -0.80 | 177.83 | 0.3520 | 931.0 | 735.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -11.73 | 266.43 | -0.84 | 176.53 | 0.2370 | 849.0 | 616.0 | |
| 0.00 | 2.57 | 0.00 | 1.34 | -16.48 | 265.77 | -1.50 | 175.44 | 0.3175 | -876.0 | -648.5 | |
| 2.14 | 16.54 | 1.12 | 8.62 | -16.35 | 265.46 | -1.81 | 174.47 | 0.3159 | -1041.8 | -578.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.30 | 265.31 | -1.95 | 174.64 | 0.3481 | 843.0 | 552.1 | |
| 1.54 | -13.00 | 0.80 | -13.00 | -16.14 | 265.31 | -1.96 | 173.94 | 0.3125 | -1133.8 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -14.34 | 265.26 | -2.01 | 173.08 | 0.2828 | 954.0 | 723.5 | |
| 1.80 | 4.37 | 0.94 | 2.29 | -16.60 | 264.87 | -2.40 | 172.79 | 0.3211 | -1031.3 | -811.4 | |
| 1.80 | 3.77 | 0.94 | 1.97 | -16.48 | 264.56 | -2.71 | 171.82 | 0.3198 | -942.7 | -983.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.49 | 263.93 | -3.34 | 169.36 | 0.3052 | -838.0 | -665.5 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -18.93 | 263.36 | -3.90 | 169.73 | 0.3628 | -789.0 | -703.6 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -16.86 | 263.32 | -3.95 | 168.40 | 0.3295 | -946.0 | -872.8 | |
| 0.00 | 2.74 | 0.00 | 1.43 | -16.45 | 263.20 | -4.07 | 167.80 | 0.3233 | -1124.0 | -897.1 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -17.49 | 262.21 | -5.05 | 165.78 | 0.3436 | -788.0 | -658.4 | |
| 0.00 | 2.40 | 0.00 | 1.27 | -18.18 | 261.76 | -5.51 | 165.10 | 0.3565 | -614.0 | -631.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.72 | 261.55 | -5.72 | 164.99 | 0.3658 | -760.0 | -537.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.34 | 261.47 | -5.80 | 164.49 | 0.3602 | -705.0 | -445.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.10 | 258.62 | -8.65 | 157.29 | 0.3718 | -716.0 | -564.5 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -15.80 | 256.32 | -10.94 | 148.93 | 0.3556 | -756.0 | -556.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
