SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.14 | 336.93 | 37.26 | 177.02 | 14.15 | 252.03 | -15.24 | 49.93 | 0.3339 | -633.6 | -386.8 | |
|
previous
or next observation for the same group /

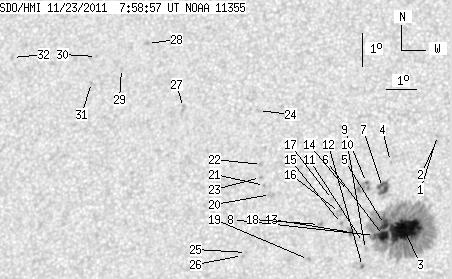

back to the solar disc SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.59 | 16.75 | 253.64 | -13.62 | 41.24 | 0.3437 | -806.0 | -603.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 16.56 | 253.63 | -13.64 | 41.65 | 0.3417 | -920.0 | -761.9 | |
| 44.82 | 270.91 | 23.43 | 141.68 | 13.88 | 252.80 | -14.47 | 49.29 | 0.3215 | -1370.3 | -479.1 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 15.94 | 252.21 | -15.06 | 45.70 | 0.3507 | 790.0 | 655.5 | |
| 4.63 | -3.00 | 2.43 | -3.00 | 14.02 | 252.16 | -15.11 | 50.12 | 0.3311 | -1010.1 | 999999 | |
| 7.97 | -3.00 | 4.18 | -3.00 | 13.69 | 252.15 | -15.12 | 50.95 | 0.3278 | -1077.7 | 999999 | |
| 8.83 | 12.26 | 4.65 | 6.46 | 15.14 | 252.01 | -15.26 | 47.78 | 0.3445 | -932.9 | -702.5 | |
| 0.86 | -3.00 | 0.45 | -3.00 | 13.69 | 251.86 | -15.41 | 51.46 | 0.3315 | -572.8 | 999999 | |
| 1.29 | 9.86 | 0.68 | 5.21 | 15.29 | 251.49 | -15.78 | 48.38 | 0.3524 | -578.5 | -557.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 13.26 | 251.61 | -15.66 | 52.95 | 0.3307 | -723.0 | -599.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 13.47 | 251.53 | -15.74 | 52.56 | 0.3337 | -661.0 | -548.3 | |
| 1.11 | 1.89 | 0.58 | 0.99 | 12.75 | 251.55 | -15.72 | 54.35 | 0.3267 | -752.0 | -546.7 | |
| 1.63 | 4.29 | 0.86 | 2.26 | 13.77 | 251.13 | -16.14 | 52.50 | 0.3418 | -716.3 | -679.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 15.01 | 250.94 | -16.33 | 49.94 | 0.3564 | -692.0 | -576.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 14.04 | 250.79 | -16.48 | 52.41 | 0.3488 | -786.0 | -647.0 | |
| 0.00 | 4.29 | 0.00 | 2.27 | 14.37 | 250.70 | -16.57 | 51.78 | 0.3531 | -672.0 | -621.8 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 14.77 | 250.45 | -16.82 | 51.29 | 0.3602 | -601.0 | -418.5 | |
| 0.00 | 2.06 | 0.00 | 1.09 | 14.00 | 250.09 | -17.18 | 53.59 | 0.3576 | 968.0 | 815.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 12.94 | 249.82 | -17.45 | 56.52 | 0.3519 | 943.0 | 824.1 | |
| 0.00 | 3.94 | 0.00 | 2.12 | 14.90 | 248.44 | -18.83 | 53.97 | 0.3873 | 642.0 | 632.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 15.17 | 248.22 | -19.05 | 53.69 | 0.3926 | 705.0 | 630.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 15.81 | 248.06 | -19.21 | 52.56 | 0.4004 | 436.0 | 503.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 15.41 | 248.07 | -19.20 | 53.38 | 0.3967 | 914.0 | 768.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.46 | 247.79 | -19.48 | 49.65 | 0.4192 | 684.0 | 642.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 13.14 | 247.82 | -19.45 | 58.74 | 0.3810 | 834.0 | 666.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 13.04 | 247.70 | -19.57 | 59.10 | 0.3820 | 767.0 | 668.2 | |
| 0.00 | 2.83 | 0.00 | 1.57 | 17.52 | 245.29 | -21.98 | 52.70 | 0.4505 | 793.0 | 701.5 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 19.49 | 243.80 | -23.47 | 50.92 | 0.4857 | 762.0 | 577.3 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 18.70 | 243.02 | -24.24 | 53.10 | 0.4883 | 788.0 | 643.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 19.06 | 242.11 | -25.16 | 53.42 | 0.5025 | 702.0 | 571.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 18.26 | 242.06 | -25.21 | 54.85 | 0.4967 | 688.0 | 603.1 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 18.99 | 239.17 | -28.10 | 56.24 | 0.5378 | 674.0 | 529.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
