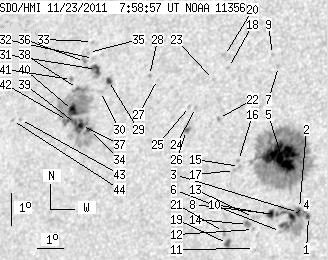

SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.56 | 506.66 | 55.73 | 317.80 | 15.06 | 231.42 | -35.85 | 67.44 | 0.6130 | -505.5 | -150.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 57.17 | 0.91 | 34.11 | 13.00 | 235.50 | -31.77 | 68.95 | 0.5519 | 653.6 | -447.4 | |
| 0.94 | -1.00 | 0.56 | -1.00 | 13.23 | 235.14 | -32.13 | 68.72 | 0.5578 | 202.5 | 999999 | |
| 2.74 | -1.00 | 1.63 | -1.00 | 13.11 | 235.12 | -32.15 | 68.94 | 0.5575 | -690.7 | 999999 | |
| 2.66 | -1.00 | 1.59 | -1.00 | 12.99 | 234.89 | -32.38 | 69.27 | 0.5601 | -950.0 | 999999 | |
| 49.62 | 256.17 | 30.02 | 154.94 | 14.79 | 234.24 | -33.03 | 66.56 | 0.5767 | -1151.2 | -431.3 | |
| 0.00 | 1.46 | 0.00 | 0.87 | 12.53 | 234.56 | -32.71 | 70.22 | 0.5628 | -70.0 | -133.2 | |
| 0.00 | 1.71 | 0.00 | 1.06 | 17.54 | 233.60 | -33.67 | 62.51 | 0.5982 | -745.0 | -592.2 | |
| 0.51 | -1.00 | 0.31 | -1.00 | 13.04 | 234.34 | -32.93 | 69.45 | 0.5678 | -817.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 17.90 | 233.29 | -33.97 | 62.13 | 0.6038 | -659.0 | -522.5 | |
| 4.11 | -1.00 | 2.48 | -1.00 | 13.03 | 234.12 | -33.15 | 69.56 | 0.5707 | -742.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 12.00 | 233.69 | -33.58 | 71.51 | 0.5727 | -431.0 | -425.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 12.57 | 233.57 | -33.70 | 70.59 | 0.5764 | -518.0 | -472.0 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 12.93 | 233.51 | -33.75 | 70.01 | 0.5785 | -628.0 | -571.9 | |
| 0.00 | 4.11 | 0.00 | 2.50 | 12.72 | 233.33 | -33.94 | 70.46 | 0.5802 | -626.0 | -498.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 14.46 | 232.74 | -34.52 | 67.86 | 0.5947 | -763.0 | -567.9 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 14.64 | 232.67 | -34.59 | 67.60 | 0.5964 | -563.0 | -478.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 14.34 | 232.58 | -34.69 | 68.13 | 0.5964 | -442.0 | -418.4 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 17.47 | 231.72 | -35.55 | 63.66 | 0.6211 | -672.0 | -544.3 | |
| 3.43 | 3.77 | 2.09 | 2.30 | 12.13 | 232.68 | -34.59 | 71.70 | 0.5868 | 864.0 | 724.2 | |
| 0.00 | 2.31 | 0.00 | 1.47 | 17.84 | 231.48 | -35.78 | 63.23 | 0.6257 | -625.0 | -519.8 | |
| 0.00 | 3.00 | 0.00 | 1.84 | 12.49 | 232.48 | -34.79 | 71.19 | 0.5907 | 837.0 | 571.7 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 15.91 | 231.68 | -35.59 | 66.09 | 0.6145 | -784.0 | -693.9 | |
| 0.00 | 1.46 | 0.00 | 0.92 | 17.10 | 231.23 | -36.04 | 64.49 | 0.6253 | -611.0 | -418.4 | |
| 0.00 | 1.46 | 0.00 | 0.92 | 16.23 | 230.73 | -36.54 | 66.05 | 0.6277 | -692.0 | -583.4 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 16.25 | 230.50 | -36.77 | 66.12 | 0.6308 | -538.0 | -399.9 | |
| 1.71 | 4.63 | 1.09 | 2.94 | 15.52 | 230.54 | -36.73 | 67.22 | 0.6273 | -746.2 | -563.6 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 17.05 | 229.06 | -38.21 | 65.59 | 0.6517 | -540.0 | -500.7 | |
| 0.00 | 1.63 | 0.00 | 1.07 | 17.17 | 228.72 | -38.55 | 65.57 | 0.6563 | -725.0 | -597.1 | |
| 2.49 | 3.60 | 1.66 | 2.41 | 16.99 | 227.12 | -40.15 | 66.52 | 0.6747 | -460.4 | -241.0 | |
| 0.00 | 2.23 | 0.00 | 1.49 | 16.64 | 226.88 | -40.39 | 67.11 | 0.6763 | 685.0 | 415.1 | |
| 5.49 | 9.26 | 3.71 | 6.26 | 17.31 | 226.54 | -40.73 | 66.29 | 0.6827 | -546.8 | 4.0 | |
| 0.00 | 1.71 | 0.00 | 1.16 | 17.65 | 226.32 | -40.94 | 65.91 | 0.6864 | -511.0 | -308.1 | |
| 0.00 | 1.37 | 0.00 | 0.94 | 18.17 | 226.13 | -41.13 | 65.26 | 0.6906 | -462.0 | -378.5 | |
| 2.06 | 128.04 | 1.38 | 86.51 | 15.47 | 226.72 | -40.55 | 68.84 | 0.6742 | 892.6 | 462.3 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 17.83 | 226.07 | -41.20 | 65.76 | 0.6901 | -540.0 | -457.5 | |
| 0.00 | 5.74 | 0.00 | 3.92 | 17.55 | 225.98 | -41.29 | 66.18 | 0.6901 | -503.0 | -283.5 | |
| 2.23 | -34.00 | 1.50 | -34.00 | 15.59 | 226.37 | -40.90 | 68.80 | 0.6788 | 1007.7 | 999999 | |
| 1.37 | -34.00 | 0.93 | -34.00 | 16.71 | 225.92 | -41.35 | 67.37 | 0.6879 | 797.6 | 999999 | |
| 1.20 | -34.00 | 0.81 | -34.00 | 15.65 | 226.11 | -41.16 | 68.81 | 0.6821 | 857.6 | 999999 | |
| 6.77 | -34.00 | 4.59 | -34.00 | 16.04 | 225.89 | -41.38 | 68.34 | 0.6860 | 985.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.17 | 16.98 | 225.59 | -41.67 | 67.12 | 0.6926 | 789.0 | 648.2 | |
| 0.69 | -34.00 | 0.47 | -34.00 | 15.73 | 225.76 | -41.51 | 68.82 | 0.6865 | 643.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.66 | 15.72 | 223.79 | -43.47 | 69.49 | 0.7095 | -486.0 | -397.5 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 15.68 | 223.46 | -43.81 | 69.65 | 0.7132 | -455.0 | -353.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
