SDO HMI 2011-11-23 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.29 | 521.81 | 59.05 | 324.36 | 15.00 | 231.61 | -35.11 | 67.18 | 0.6033 | -420.2 | -158.6 | |
|
previous
or next observation for the same group /

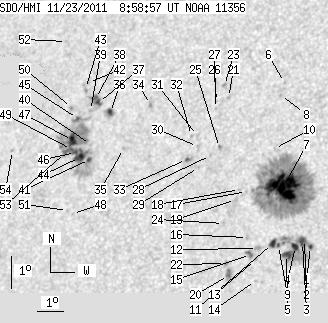

back to the solar disc SDO HMI 2011-11-23 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 49.02 | 1.01 | 29.04 | 13.00 | 235.49 | -31.23 | 68.66 | 0.5446 | 561.2 | -403.9 | |
| 1.37 | -1.00 | 0.81 | -1.00 | 13.21 | 235.25 | -31.47 | 68.42 | 0.5488 | 321.2 | 999999 | |
| 3.51 | -1.00 | 2.08 | -1.00 | 13.11 | 235.19 | -31.53 | 68.61 | 0.5492 | -593.1 | 999999 | |
| 3.69 | -1.00 | 2.19 | -1.00 | 12.99 | 234.96 | -31.77 | 68.95 | 0.5518 | -953.6 | 999999 | |
| 5.06 | -1.00 | 3.00 | -1.00 | 12.74 | 234.67 | -32.05 | 69.52 | 0.5547 | -749.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 17.97 | 233.67 | -33.05 | 61.45 | 0.5928 | -704.0 | -575.9 | |
| 44.48 | 270.89 | 26.75 | 162.89 | 14.80 | 234.24 | -32.48 | 66.25 | 0.5694 | -1142.8 | -421.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | 17.57 | 233.61 | -33.11 | 62.12 | 0.5914 | -824.0 | -682.2 | |
| 1.11 | 6.86 | 0.66 | 4.10 | 13.01 | 234.34 | -32.38 | 69.22 | 0.5602 | -731.2 | -623.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 15.95 | 233.71 | -33.01 | 64.66 | 0.5819 | -576.0 | -334.9 | |
| 3.77 | -9.00 | 2.26 | -9.00 | 13.07 | 234.12 | -32.60 | 69.24 | 0.5635 | -759.1 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.55 | 12.91 | 233.60 | -33.12 | 69.76 | 0.5699 | -722.0 | -574.0 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 12.57 | 233.58 | -33.15 | 70.33 | 0.5689 | -622.0 | -471.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 11.94 | 233.67 | -33.06 | 71.37 | 0.5654 | -662.0 | -507.5 | |
| 2.83 | 4.20 | 1.71 | 2.53 | 12.72 | 233.37 | -33.35 | 70.18 | 0.5723 | -566.8 | -401.5 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 13.23 | 233.18 | -33.54 | 69.41 | 0.5768 | -280.0 | -214.5 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 14.62 | 232.92 | -33.81 | 67.24 | 0.5861 | -419.0 | -372.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 14.68 | 232.65 | -34.07 | 67.28 | 0.5898 | -631.0 | -464.3 | |
| 0.00 | 2.57 | 0.00 | 1.57 | 14.37 | 232.55 | -34.17 | 67.82 | 0.5897 | -603.0 | -417.8 | |
| 0.00 | 6.08 | 0.00 | 3.69 | 12.07 | 232.66 | -34.06 | 71.57 | 0.5795 | 992.0 | 786.8 | |
| 0.00 | 1.46 | 0.00 | 0.91 | 17.48 | 231.68 | -35.05 | 63.38 | 0.6149 | -717.0 | -513.1 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 12.43 | 232.50 | -34.22 | 71.04 | 0.5829 | 906.0 | 704.2 | |
| 0.00 | 2.49 | 0.00 | 1.56 | 17.84 | 231.44 | -35.28 | 62.95 | 0.6196 | -634.0 | -546.2 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 13.64 | 232.24 | -34.49 | 69.17 | 0.5910 | -391.0 | -252.1 | |
| 0.00 | 2.06 | 0.00 | 1.28 | 15.94 | 231.66 | -35.06 | 65.77 | 0.6080 | -829.0 | -671.4 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 17.35 | 231.25 | -35.47 | 63.81 | 0.6196 | -488.0 | -403.6 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 17.13 | 231.26 | -35.46 | 64.13 | 0.6185 | -620.0 | -487.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 15.69 | 231.37 | -35.35 | 66.30 | 0.6106 | -677.0 | -561.7 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 15.32 | 230.99 | -35.73 | 67.07 | 0.6138 | -633.0 | -516.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 15.96 | 230.82 | -35.90 | 66.16 | 0.6186 | -709.0 | -573.0 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 16.29 | 230.75 | -35.97 | 65.67 | 0.6210 | -615.0 | -462.6 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 16.29 | 230.53 | -36.20 | 65.79 | 0.6238 | -496.0 | -359.5 | |
| 1.20 | 3.34 | 0.76 | 2.11 | 15.55 | 230.49 | -36.23 | 66.94 | 0.6212 | -719.6 | -651.6 | |
| 0.00 | 1.97 | 0.00 | 1.28 | 17.21 | 228.72 | -38.00 | 65.27 | 0.6498 | -746.0 | -594.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 15.84 | 227.98 | -38.74 | 67.60 | 0.6536 | 692.0 | 555.7 | |
| 2.83 | 5.83 | 1.88 | 3.87 | 16.93 | 227.20 | -39.53 | 66.34 | 0.6671 | -502.7 | -13.2 | |
| 2.49 | 12.51 | 1.66 | 8.39 | 17.23 | 226.64 | -40.09 | 66.15 | 0.6749 | -484.1 | -102.0 | |
| 1.11 | -37.00 | 0.75 | -37.00 | 17.35 | 226.48 | -40.24 | 66.04 | 0.6771 | -562.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.92 | 16.97 | 226.38 | -40.35 | 66.61 | 0.6770 | 321.0 | 336.2 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 15.94 | 226.64 | -40.09 | 67.99 | 0.6702 | 407.0 | 362.5 | |
| 1.71 | 118.52 | 1.14 | 79.46 | 15.48 | 226.70 | -40.02 | 68.63 | 0.6678 | 929.7 | 467.2 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 17.83 | 226.06 | -40.66 | 65.53 | 0.6838 | -589.0 | -421.8 | |
| 0.00 | 3.00 | 0.00 | 2.03 | 17.64 | 225.99 | -40.73 | 65.82 | 0.6840 | -375.0 | -324.8 | |
| 5.06 | -41.00 | 3.38 | -41.00 | 15.53 | 226.29 | -40.43 | 68.71 | 0.6730 | 868.7 | 999999 | |
| 1.71 | -41.00 | 1.16 | -41.00 | 16.72 | 225.91 | -40.81 | 67.15 | 0.6816 | 854.0 | 999999 | |
| 1.71 | -41.00 | 1.15 | -41.00 | 15.68 | 226.09 | -40.63 | 68.57 | 0.6759 | 805.0 | 999999 | |
| 7.20 | -41.00 | 4.85 | -41.00 | 16.04 | 225.88 | -40.84 | 68.13 | 0.6796 | 933.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 13.83 | 226.39 | -40.33 | 71.15 | 0.6664 | 659.0 | 484.0 | |
| 0.51 | -41.00 | 0.35 | -41.00 | 15.77 | 225.91 | -40.82 | 68.51 | 0.6784 | 732.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 17.05 | 225.58 | -41.15 | 66.82 | 0.6867 | 765.0 | 674.6 | |
| 0.00 | 0.43 | 0.00 | 0.28 | 13.92 | 226.17 | -40.55 | 71.10 | 0.6694 | 469.0 | 511.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | 19.08 | 224.78 | -41.94 | 64.33 | 0.7032 | -716.0 | -570.5 | |
| 2.23 | -41.00 | 1.50 | -41.00 | 15.67 | 225.68 | -41.04 | 68.73 | 0.6807 | 537.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 15.69 | 223.48 | -43.25 | 69.46 | 0.7068 | -487.0 | -376.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
