SDO HMI 2011-11-23 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.81 | 164.02 | 31.62 | 123.41 | 18.55 | 313.46 | 46.74 | 293.30 | 0.7534 | -182.7 | -58.2 | |
|
previous
or next observation for the same group /

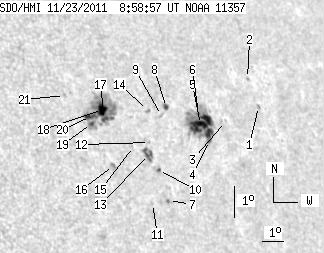

back to the solar disc SDO HMI 2011-11-23 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.50 | 18.94 | 318.72 | 52.00 | 292.27 | 0.8077 | -593.0 | -523.0 | |
| 0.00 | 1.03 | 0.00 | 0.86 | 19.82 | 318.56 | 51.83 | 293.38 | 0.8081 | -512.0 | -491.8 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 18.52 | 316.89 | 50.17 | 292.22 | 0.7889 | -294.0 | -320.7 | |
| 0.34 | 66.84 | 0.27 | 52.30 | 17.95 | 315.90 | 49.17 | 291.78 | 0.7775 | -689.5 | -516.6 | |
| 20.74 | -4.00 | 16.23 | -4.00 | 18.45 | 315.66 | 48.94 | 292.48 | 0.7763 | -870.8 | 999999 | |
| 0.94 | -4.00 | 0.74 | -4.00 | 18.80 | 315.69 | 48.97 | 292.90 | 0.7775 | -694.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 16.16 | 313.38 | 46.66 | 290.17 | 0.7465 | -741.0 | -677.2 | |
| 1.97 | 2.83 | 1.51 | 2.16 | 19.02 | 314.27 | 47.55 | 293.60 | 0.7635 | -578.7 | -503.2 | |
| 0.00 | 2.23 | 0.00 | 1.69 | 18.77 | 313.95 | 47.22 | 293.39 | 0.7595 | 152.0 | -30.1 | |
| 0.43 | 1.20 | 0.32 | 0.89 | 17.09 | 313.22 | 46.50 | 291.42 | 0.7472 | -610.6 | -601.8 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 16.09 | 312.64 | 45.92 | 290.28 | 0.7382 | -690.0 | -518.6 | |
| 0.00 | 1.03 | 0.00 | 0.76 | 17.96 | 313.11 | 46.38 | 292.59 | 0.7483 | 408.0 | 315.1 | |
| 0.00 | 8.57 | 0.00 | 6.34 | 17.59 | 312.94 | 46.21 | 292.16 | 0.7454 | 740.0 | 504.6 | |
| 0.00 | 1.80 | 0.00 | 1.35 | 18.94 | 313.36 | 46.64 | 293.79 | 0.7539 | -702.0 | -614.8 | |
| 0.00 | 0.34 | 0.00 | 0.25 | 17.85 | 312.35 | 45.63 | 292.69 | 0.7398 | 535.0 | 470.5 | |
| 0.00 | 2.74 | 0.00 | 1.97 | 17.29 | 311.29 | 44.56 | 292.29 | 0.7265 | 594.0 | 410.5 | |
| 2.74 | 69.84 | 1.99 | 50.58 | 18.71 | 311.35 | 44.63 | 294.16 | 0.7316 | 603.2 | 330.7 | |
| 7.37 | -17.00 | 5.34 | -17.00 | 19.02 | 311.37 | 44.64 | 294.56 | 0.7328 | 910.8 | 999999 | |
| 1.54 | -17.00 | 1.10 | -17.00 | 18.60 | 310.74 | 44.02 | 294.23 | 0.7246 | 841.5 | 999999 | |
| 5.74 | -17.00 | 4.12 | -17.00 | 18.81 | 310.77 | 44.05 | 294.50 | 0.7256 | 842.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.97 | 19.49 | 309.86 | 43.14 | 295.74 | 0.7180 | -490.0 | -404.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
