SDO HMI 2011-11-23 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.23 | 514.87 | 55.76 | 317.38 | 14.94 | 231.71 | -34.46 | 66.96 | 0.5949 | -449.1 | -179.8 | |
|
previous
or next observation for the same group /

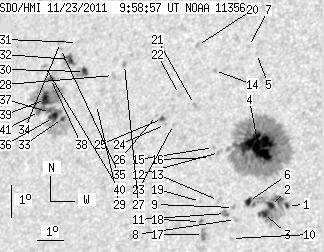

back to the solar disc SDO HMI 2011-11-23 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 60.93 | 1.15 | 35.92 | 13.00 | 235.55 | -30.63 | 68.32 | 0.5364 | 537.0 | -400.0 | |
| 3.34 | -1.00 | 1.97 | -1.00 | 12.99 | 234.95 | -31.23 | 68.66 | 0.5446 | -994.9 | 999999 | |
| 5.74 | -1.00 | 3.39 | -1.00 | 12.75 | 234.73 | -31.45 | 69.20 | 0.5465 | -777.0 | 999999 | |
| 45.93 | 267.61 | 27.46 | 159.90 | 14.77 | 234.24 | -31.93 | 65.98 | 0.5621 | -1128.6 | -438.0 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 17.61 | 233.65 | -32.53 | 61.70 | 0.5843 | -788.0 | -656.5 | |
| 3.51 | -1.00 | 2.09 | -1.00 | 13.10 | 234.14 | -32.03 | 68.89 | 0.5560 | -698.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.73 | 17.82 | 233.31 | -32.87 | 61.58 | 0.5897 | -618.0 | -468.8 | |
| 0.00 | 1.89 | 0.00 | 1.12 | 12.55 | 233.76 | -32.42 | 70.03 | 0.5590 | -751.0 | -553.7 | |
| 0.00 | 1.97 | 0.00 | 1.18 | 12.91 | 233.63 | -32.55 | 69.47 | 0.5621 | -713.0 | -551.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 11.98 | 233.69 | -32.49 | 71.05 | 0.5577 | -632.0 | -421.6 | |
| 0.00 | 4.37 | 0.00 | 2.62 | 12.72 | 233.37 | -32.81 | 69.91 | 0.5649 | -720.0 | -536.5 | |
| 0.00 | 2.66 | 0.00 | 1.61 | 14.56 | 232.86 | -33.32 | 67.08 | 0.5794 | -634.0 | -554.1 | |
| 0.00 | 1.89 | 0.00 | 1.13 | 13.11 | 233.06 | -33.12 | 69.40 | 0.5707 | -132.0 | -135.8 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 17.06 | 232.20 | -33.98 | 63.43 | 0.5996 | -733.0 | -620.5 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 14.71 | 232.61 | -33.56 | 66.96 | 0.5833 | -444.0 | -296.0 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 14.41 | 232.56 | -33.62 | 67.49 | 0.5827 | -554.0 | -489.1 | |
| 0.00 | 5.91 | 0.00 | 3.56 | 12.08 | 232.66 | -33.51 | 71.33 | 0.5721 | 1002.0 | 778.4 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 12.47 | 232.50 | -33.68 | 70.74 | 0.5758 | 860.0 | 717.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 13.07 | 232.41 | -33.77 | 69.77 | 0.5793 | 636.0 | 428.2 | |
| 0.00 | 2.06 | 0.00 | 1.29 | 17.82 | 231.40 | -34.78 | 62.71 | 0.6134 | -582.0 | -533.7 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 16.01 | 231.67 | -34.51 | 65.37 | 0.6014 | -787.0 | -653.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 16.30 | 231.04 | -35.14 | 65.24 | 0.6106 | -608.0 | -506.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 15.38 | 231.00 | -35.18 | 66.69 | 0.6071 | -687.0 | -508.4 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 15.38 | 230.70 | -35.48 | 66.85 | 0.6109 | -700.0 | -626.3 | |
| 2.06 | 2.74 | 1.29 | 1.72 | 15.56 | 230.55 | -35.63 | 66.64 | 0.6136 | -740.6 | -549.5 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 15.65 | 230.30 | -35.87 | 66.62 | 0.6170 | -466.0 | -367.1 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 17.18 | 228.73 | -37.44 | 65.04 | 0.6430 | -741.0 | -609.4 | |
| 0.00 | 2.66 | 0.00 | 1.72 | 16.84 | 228.38 | -37.79 | 65.71 | 0.6458 | -679.0 | -564.5 | |
| 0.00 | 1.29 | 0.00 | 0.83 | 15.94 | 227.92 | -38.25 | 67.25 | 0.6479 | 657.0 | 519.1 | |
| 3.17 | 10.03 | 2.09 | 6.61 | 16.94 | 227.21 | -38.97 | 66.09 | 0.6604 | -478.5 | 235.4 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 17.82 | 226.70 | -39.47 | 65.04 | 0.6700 | -467.0 | -450.6 | |
| 4.88 | 12.34 | 3.25 | 8.21 | 17.29 | 226.56 | -39.62 | 65.85 | 0.6696 | -525.5 | -44.0 | |
| 1.37 | 105.23 | 0.90 | 69.94 | 15.48 | 226.68 | -39.50 | 68.42 | 0.6615 | 922.2 | 451.3 | |
| 0.00 | 2.57 | 0.00 | 1.73 | 17.81 | 226.02 | -40.16 | 65.35 | 0.6780 | -352.0 | -321.8 | |
| 0.00 | 1.80 | 0.00 | 1.21 | 17.62 | 226.07 | -40.11 | 65.59 | 0.6767 | -513.0 | -400.5 | |
| 5.66 | -33.00 | 3.75 | -33.00 | 15.51 | 226.31 | -39.86 | 68.52 | 0.6661 | 837.7 | 999999 | |
| 0.43 | -33.00 | 0.28 | -33.00 | 15.66 | 226.16 | -40.02 | 68.37 | 0.6685 | 815.8 | 999999 | |
| 2.66 | 5.83 | 1.78 | 3.90 | 16.69 | 225.90 | -40.27 | 66.98 | 0.6752 | 868.6 | 629.4 | |
| 6.94 | -33.00 | 4.64 | -33.00 | 16.05 | 225.86 | -40.32 | 67.91 | 0.6734 | 944.8 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.50 | 17.09 | 225.55 | -40.62 | 66.56 | 0.6807 | 772.0 | 636.3 | |
| 2.57 | -33.00 | 1.72 | -33.00 | 15.68 | 225.71 | -40.47 | 68.50 | 0.6740 | 525.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
