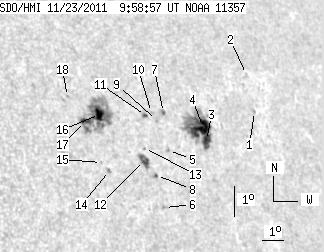

SDO HMI 2011-11-23 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.53 | 161.19 | 31.01 | 122.58 | 18.58 | 313.59 | 47.41 | 293.13 | 0.7605 | -68.8 | -83.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.45 | 18.95 | 318.79 | 52.62 | 292.14 | 0.8136 | -637.0 | -462.3 | |
| 0.00 | 0.94 | 0.00 | 0.81 | 20.11 | 318.92 | 52.74 | 293.50 | 0.8172 | -340.0 | -291.8 | |
| 5.66 | 63.92 | 4.50 | 50.72 | 18.12 | 316.03 | 49.86 | 291.81 | 0.7848 | -556.6 | -590.3 | |
| 12.51 | -3.00 | 9.97 | -3.00 | 18.52 | 316.05 | 49.87 | 292.31 | 0.7859 | -783.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.98 | 17.85 | 314.13 | 47.95 | 292.00 | 0.7646 | 485.0 | 383.1 | |
| 0.00 | 1.46 | 0.00 | 1.09 | 16.12 | 313.36 | 47.18 | 289.97 | 0.7521 | -792.0 | -627.4 | |
| 0.51 | 1.71 | 0.40 | 1.32 | 19.03 | 314.33 | 48.15 | 293.43 | 0.7698 | -702.2 | -580.7 | |
| 1.29 | 2.40 | 0.96 | 1.80 | 17.10 | 313.31 | 47.13 | 291.26 | 0.7540 | -592.8 | -424.8 | |
| 0.00 | 1.29 | 0.00 | 0.98 | 18.79 | 313.91 | 47.73 | 293.25 | 0.7649 | -108.0 | 22.1 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 19.04 | 313.77 | 47.60 | 293.62 | 0.7641 | -502.0 | -427.9 | |
| 1.37 | 1.97 | 1.04 | 1.50 | 18.95 | 313.46 | 47.28 | 293.60 | 0.7606 | -567.2 | -532.4 | |
| 7.88 | 8.74 | 5.89 | 6.53 | 17.57 | 312.92 | 46.75 | 291.99 | 0.7511 | 523.2 | 459.4 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 17.94 | 313.05 | 46.87 | 292.42 | 0.7535 | 304.0 | 294.5 | |
| 0.00 | 1.29 | 0.00 | 0.93 | 17.30 | 311.27 | 45.09 | 292.14 | 0.7323 | 617.0 | 482.7 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 17.55 | 310.99 | 44.82 | 292.57 | 0.7301 | 554.0 | 480.2 | |
| 7.11 | 70.95 | 5.21 | 51.87 | 19.03 | 311.40 | 45.22 | 294.38 | 0.7391 | 874.8 | 352.6 | |
| 4.20 | -16.00 | 3.04 | -16.00 | 18.83 | 310.71 | 44.53 | 294.36 | 0.7309 | 858.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 19.62 | 310.18 | 44.01 | 295.59 | 0.7279 | -268.0 | -218.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
