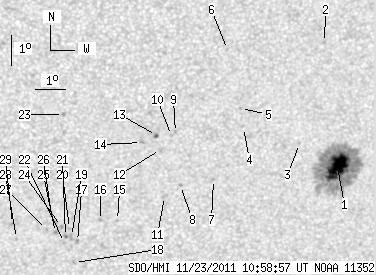

SDO HMI 2011-11-23 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.13 | 204.85 | 17.01 | 119.19 | -24.56 | 283.19 | 17.56 | 211.59 | 0.5255 | 135.4 | 195.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.62 | 168.10 | 16.72 | 98.29 | -24.45 | 284.45 | 18.82 | 213.61 | 0.5326 | 1223.5 | 364.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -20.41 | 283.46 | 17.83 | 217.23 | 0.4763 | 736.0 | 565.9 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.67 | 283.04 | 17.41 | 212.52 | 0.5119 | 713.0 | 518.2 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -23.13 | 281.09 | 15.46 | 210.17 | 0.4897 | 523.0 | 543.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -22.51 | 280.92 | 15.29 | 210.60 | 0.4804 | 801.0 | 575.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.60 | 280.28 | 14.65 | 211.84 | 0.4507 | 741.0 | 579.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -24.83 | 280.29 | 14.66 | 207.11 | 0.5059 | -777.0 | -656.6 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -25.02 | 279.20 | 13.57 | 205.21 | 0.5012 | -720.0 | -582.3 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -23.27 | 278.84 | 13.21 | 206.33 | 0.4753 | -752.0 | -603.5 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -23.37 | 278.72 | 13.09 | 206.03 | 0.4757 | -628.0 | -477.0 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -25.39 | 278.70 | 13.07 | 204.07 | 0.5029 | -661.0 | -478.7 | |
| 0.00 | 2.06 | 0.00 | 1.16 | -23.83 | 278.40 | 12.77 | 205.03 | 0.4798 | -613.0 | -490.2 | |
| 0.51 | 1.37 | 0.29 | 0.77 | -23.37 | 278.22 | 12.59 | 205.18 | 0.4724 | -907.7 | -832.5 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -23.59 | 277.75 | 12.12 | 204.14 | 0.4724 | -860.0 | -730.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -26.18 | 277.20 | 11.57 | 200.97 | 0.5050 | -699.0 | -545.9 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -26.17 | 276.63 | 11.00 | 200.03 | 0.5020 | -818.0 | -666.4 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -26.88 | 275.92 | 10.29 | 198.34 | 0.5083 | -582.0 | -507.6 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -27.59 | 275.89 | 10.26 | 197.80 | 0.5182 | -770.0 | -621.4 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -26.71 | 275.70 | 10.07 | 198.10 | 0.5049 | -778.0 | -678.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.44 | 275.61 | 9.98 | 198.14 | 0.5006 | -656.0 | -583.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.70 | 275.50 | 9.87 | 197.77 | 0.5039 | -870.0 | -857.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -26.91 | 275.48 | 9.85 | 197.60 | 0.5067 | -708.0 | -617.3 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -22.66 | 275.12 | 9.49 | 200.13 | 0.4437 | -856.0 | -673.8 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -26.37 | 275.34 | 9.71 | 197.72 | 0.4984 | -961.0 | -780.7 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -26.57 | 275.15 | 9.52 | 197.27 | 0.5004 | -784.0 | -655.1 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -26.00 | 274.97 | 9.34 | 197.35 | 0.4913 | -817.0 | -697.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -26.46 | 274.84 | 9.21 | 196.81 | 0.4975 | -813.0 | -661.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.76 | 273.86 | 8.23 | 194.94 | 0.4978 | -683.0 | -544.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -26.26 | 273.69 | 8.06 | 194.94 | 0.4897 | -899.0 | -712.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
