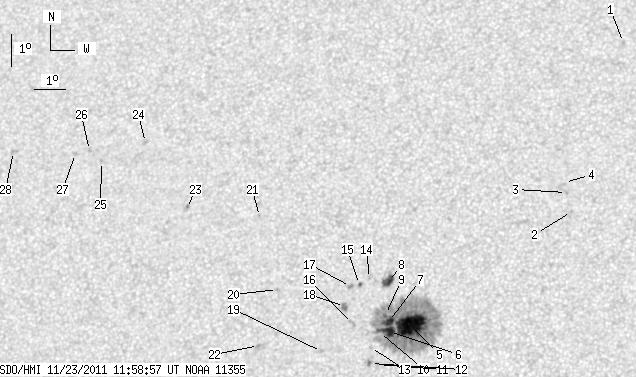

SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.77 | 323.25 | 33.61 | 168.28 | 14.17 | 252.03 | -13.05 | 45.48 | 0.3076 | -763.6 | -414.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.55 | 22.62 | 259.06 | -6.03 | 15.30 | 0.3690 | -825.0 | -620.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 17.34 | 257.63 | -7.45 | 24.87 | 0.2956 | -864.0 | -727.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 17.93 | 257.45 | -7.63 | 24.53 | 0.3057 | -834.0 | -578.2 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 18.24 | 257.38 | -7.71 | 24.31 | 0.3108 | -564.0 | -572.2 | |
| 40.26 | 275.00 | 20.86 | 142.55 | 13.84 | 252.78 | -12.30 | 44.83 | 0.2948 | -1363.7 | -471.9 | |
| 7.80 | -5.00 | 4.05 | -5.00 | 13.66 | 252.13 | -12.95 | 46.72 | 0.3005 | -1048.9 | 999999 | |
| 5.91 | -5.00 | 3.07 | -5.00 | 13.96 | 252.09 | -13.00 | 46.08 | 0.3044 | -1003.9 | 999999 | |
| 8.48 | 10.71 | 4.43 | 5.59 | 15.17 | 252.01 | -13.07 | 43.39 | 0.3192 | -999.1 | -572.5 | |
| 0.43 | -5.00 | 0.22 | -5.00 | 14.17 | 251.98 | -13.10 | 45.79 | 0.3081 | -605.4 | 999999 | |
| 0.43 | -5.00 | 0.22 | -5.00 | 13.62 | 251.82 | -13.26 | 47.46 | 0.3039 | -555.4 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 12.66 | 251.81 | -13.27 | 49.99 | 0.2937 | -909.0 | -700.4 | |
| 0.26 | 2.14 | 0.13 | 1.11 | 12.69 | 251.59 | -13.49 | 50.36 | 0.2969 | -727.3 | -766.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 13.17 | 251.57 | -13.52 | 49.15 | 0.3022 | -816.0 | -499.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 15.26 | 251.41 | -13.68 | 44.46 | 0.3271 | -699.0 | -523.4 | |
| 1.20 | 1.54 | 0.63 | 0.81 | 15.07 | 251.10 | -13.98 | 45.48 | 0.3286 | -786.9 | -746.5 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 13.89 | 250.96 | -14.12 | 48.55 | 0.3174 | -735.0 | -675.6 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 15.01 | 250.82 | -14.26 | 46.18 | 0.3312 | -917.0 | -710.9 | |
| 0.00 | 4.45 | 0.00 | 2.33 | 14.40 | 250.68 | -14.41 | 47.87 | 0.3264 | -858.0 | -780.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 13.04 | 250.04 | -15.04 | 52.40 | 0.3206 | 908.0 | 709.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 14.90 | 248.51 | -16.57 | 50.55 | 0.3585 | 920.0 | 742.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 17.12 | 247.74 | -17.35 | 47.13 | 0.3905 | 734.0 | 675.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 13.20 | 248.03 | -17.05 | 55.27 | 0.3488 | 847.0 | 672.2 | |
| 0.00 | 2.23 | 0.00 | 1.22 | 17.35 | 245.33 | -19.76 | 50.22 | 0.4217 | 853.0 | 627.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 19.37 | 243.71 | -21.38 | 48.64 | 0.4601 | 737.0 | 521.7 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 18.76 | 242.30 | -22.78 | 51.37 | 0.4712 | 749.0 | 555.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 19.10 | 241.85 | -23.24 | 51.30 | 0.4797 | 773.0 | 583.3 | |
| 0.00 | 2.40 | 0.00 | 1.36 | 19.00 | 241.38 | -23.70 | 51.98 | 0.4844 | 642.0 | 496.0 | |
| 0.00 | 3.43 | 0.00 | 1.97 | 19.03 | 239.24 | -25.85 | 54.12 | 0.5107 | 568.0 | 521.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
