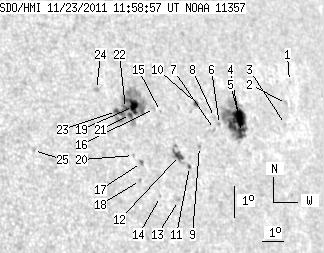

SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.97 | 162.61 | 30.65 | 126.65 | 18.55 | 313.78 | 48.70 | 292.73 | 0.7736 | -114.9 | -93.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.45 | 19.62 | 319.39 | 54.30 | 292.56 | 0.8305 | -453.0 | -415.0 | |
| 0.00 | 1.20 | 0.00 | 1.04 | 18.95 | 318.90 | 53.81 | 291.87 | 0.8247 | -427.0 | -453.1 | |
| 0.00 | 1.11 | 0.00 | 0.96 | 18.31 | 318.55 | 53.46 | 291.17 | 0.8202 | -431.0 | -338.7 | |
| 5.14 | 66.14 | 4.20 | 53.96 | 18.11 | 316.21 | 51.13 | 291.49 | 0.7975 | -662.8 | -526.3 | |
| 14.39 | -4.00 | 11.80 | -4.00 | 18.58 | 316.30 | 51.22 | 292.03 | 0.7994 | -734.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.03 | 18.39 | 315.23 | 50.15 | 292.07 | 0.7884 | -688.0 | -616.7 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 18.24 | 314.93 | 49.85 | 291.97 | 0.7850 | -546.0 | -449.4 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 18.61 | 315.08 | 49.99 | 292.39 | 0.7874 | -660.0 | -631.8 | |
| 0.00 | 1.29 | 0.00 | 1.00 | 17.73 | 314.02 | 48.93 | 291.58 | 0.7745 | 351.0 | 259.9 | |
| 1.54 | 2.57 | 1.22 | 2.03 | 19.06 | 314.38 | 49.30 | 293.14 | 0.7816 | -646.4 | -549.9 | |
| 0.60 | 1.54 | 0.46 | 1.18 | 17.13 | 313.33 | 48.25 | 291.00 | 0.7659 | -576.4 | -498.4 | |
| 4.54 | 10.71 | 3.46 | 8.17 | 17.48 | 312.98 | 47.90 | 291.54 | 0.7632 | 544.7 | 335.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 16.11 | 312.48 | 47.40 | 289.90 | 0.7544 | -765.0 | -672.5 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 16.25 | 311.71 | 46.62 | 290.30 | 0.7464 | -538.0 | -504.1 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 18.85 | 312.60 | 47.51 | 293.40 | 0.7628 | 298.0 | 237.6 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 18.95 | 312.36 | 47.27 | 293.61 | 0.7606 | 299.0 | 232.5 | |
| 0.00 | 1.80 | 0.00 | 1.33 | 17.30 | 311.19 | 46.10 | 291.84 | 0.7435 | 595.0 | 466.6 | |
| 0.00 | 1.37 | 0.00 | 1.00 | 16.75 | 310.97 | 45.88 | 291.18 | 0.7396 | 543.0 | 387.5 | |
| 8.22 | 64.34 | 6.15 | 47.98 | 19.03 | 311.42 | 46.34 | 294.01 | 0.7510 | 808.4 | 301.3 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 17.53 | 310.90 | 45.82 | 292.22 | 0.7410 | 539.0 | 466.0 | |
| 1.46 | -19.00 | 1.08 | -19.00 | 18.79 | 311.20 | 46.12 | 293.77 | 0.7479 | 717.8 | 999999 | |
| 1.20 | -19.00 | 0.89 | -19.00 | 18.98 | 311.04 | 45.96 | 294.07 | 0.7468 | 810.4 | 999999 | |
| 1.88 | -19.00 | 1.39 | -19.00 | 18.90 | 310.60 | 45.52 | 294.11 | 0.7419 | 788.6 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.69 | 19.60 | 309.96 | 44.88 | 295.24 | 0.7372 | -510.0 | -346.4 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 17.77 | 306.66 | 41.58 | 294.03 | 0.6943 | 551.0 | 446.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
