SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.79 | 83.96 | 21.59 | 133.24 | 19.01 | 193.81 | -71.27 | 70.58 | 0.9507 | -322.8 | -130.9 | |
|
previous
or next observation for the same group /

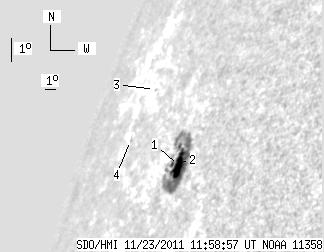

back to the solar disc SDO HMI 2011-11-23 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 82.41 | 19.38 | 129.77 | 18.98 | 194.03 | -71.05 | 70.60 | 0.9497 | -463.4 | -146.2 | |
| 1.37 | -1.00 | 2.21 | -1.00 | 18.99 | 193.42 | -71.66 | 70.63 | 0.9528 | 314.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 1.49 | 21.20 | 188.39 | -76.69 | 68.66 | 0.9751 | 318.0 | 364.1 | |
| 0.00 | 0.86 | 0.00 | 1.98 | 19.57 | 187.63 | -77.45 | 70.37 | 0.9775 | 352.0 | 332.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
