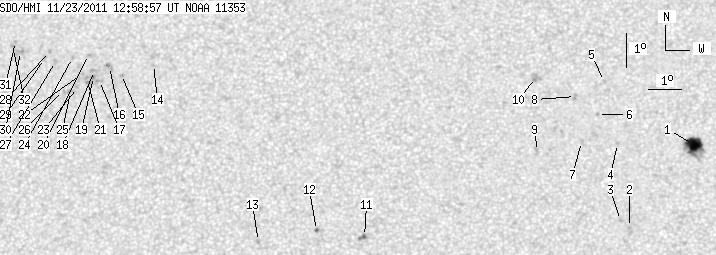

SDO HMI 2011-11-23 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.50 | 90.97 | 9.23 | 46.22 | 8.77 | 257.74 | -6.79 | 213.23 | 0.2007 | -66.4 | 51.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.53 | 29.64 | 8.24 | 14.77 | 7.92 | 266.94 | 2.40 | 338.49 | 0.1138 | -1197.0 | -668.8 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 5.45 | 265.02 | 0.49 | 352.27 | 0.0634 | -1015.0 | -814.4 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 5.66 | 264.76 | 0.22 | 356.68 | 0.0665 | -881.0 | -685.5 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 7.95 | 264.67 | 0.13 | 358.76 | 0.1064 | -909.0 | -692.2 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.79 | 264.28 | -0.26 | 1.84 | 0.1386 | -768.0 | -598.0 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 8.81 | 264.07 | -0.47 | 3.80 | 0.1217 | -968.0 | -723.6 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 8.01 | 263.59 | -0.94 | 8.67 | 0.1087 | -827.0 | -620.5 | |
| 0.00 | 2.06 | 0.00 | 1.03 | 9.35 | 263.41 | -1.13 | 8.48 | 0.1322 | -895.0 | -741.2 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 7.71 | 262.28 | -2.26 | 20.98 | 0.1095 | -885.0 | -629.9 | |
| 0.00 | 6.00 | 0.00 | 3.00 | 9.91 | 262.21 | -2.33 | 15.97 | 0.1463 | -766.0 | -776.0 | |
| 1.54 | 3.17 | 0.77 | 1.59 | 5.17 | 257.13 | -7.40 | 65.73 | 0.1414 | -989.4 | -807.9 | |
| 0.43 | 1.11 | 0.22 | 0.56 | 5.34 | 255.69 | -8.85 | 68.29 | 0.1656 | 980.8 | 892.3 | |
| 0.00 | 1.88 | 0.00 | 0.95 | 5.01 | 253.95 | -10.59 | 73.20 | 0.1921 | -911.0 | -584.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 10.25 | 250.58 | -13.96 | 58.28 | 0.2803 | 568.0 | 649.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 9.94 | 249.60 | -14.93 | 60.86 | 0.2920 | 859.0 | 794.1 | |
| 0.00 | 4.03 | 0.00 | 2.09 | 10.18 | 249.22 | -15.32 | 60.75 | 0.2994 | 906.0 | 780.9 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 9.76 | 248.92 | -15.61 | 62.44 | 0.3005 | 927.0 | 819.0 | |
| 0.00 | 3.43 | 0.00 | 1.78 | 10.05 | 248.75 | -15.78 | 61.80 | 0.3052 | 943.0 | 722.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 9.88 | 248.73 | -15.80 | 62.36 | 0.3042 | 1138.0 | 988.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 10.53 | 248.54 | -15.99 | 60.73 | 0.3120 | 724.0 | 654.0 | |
| 0.00 | 3.60 | 0.00 | 1.87 | 9.75 | 248.55 | -15.99 | 62.98 | 0.3061 | 659.0 | 843.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 9.96 | 248.38 | -16.15 | 62.60 | 0.3100 | 857.0 | 706.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 9.54 | 248.25 | -16.29 | 64.01 | 0.3091 | 753.0 | 624.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 10.44 | 248.04 | -16.49 | 61.70 | 0.3185 | 834.0 | 569.2 | |
| 0.00 | 2.91 | 0.00 | 1.52 | 9.42 | 248.03 | -16.50 | 64.65 | 0.3114 | 908.0 | 717.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 9.45 | 247.81 | -16.72 | 64.85 | 0.3150 | 681.0 | 512.9 | |
| 0.00 | 2.23 | 0.00 | 1.17 | 10.31 | 247.52 | -17.02 | 62.76 | 0.3253 | 878.0 | 694.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 10.61 | 247.31 | -17.22 | 62.21 | 0.3305 | 942.0 | 721.4 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 10.40 | 247.17 | -17.37 | 62.97 | 0.3311 | 826.0 | 585.6 | |
| 0.00 | 2.31 | 0.00 | 1.22 | 10.60 | 246.39 | -18.14 | 63.37 | 0.3439 | 835.0 | 837.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 10.90 | 246.22 | -18.32 | 62.80 | 0.3485 | 738.0 | 618.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 10.78 | 246.13 | -18.41 | 63.22 | 0.3490 | 674.0 | 551.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
