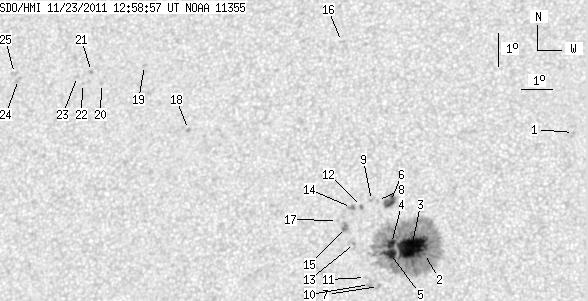

SDO HMI 2011-11-23 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.16 | 342.48 | 30.11 | 177.96 | 14.12 | 252.04 | -12.50 | 44.31 | 0.3003 | -833.0 | -413.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 17.37 | 257.65 | -6.89 | 23.16 | 0.2923 | -939.0 | -709.0 | |
| 0.94 | 298.09 | 0.49 | 154.23 | 13.66 | 253.18 | -11.36 | 43.02 | 0.2817 | -1269.9 | -445.8 | |
| 37.69 | -2.00 | 19.49 | -2.00 | 13.84 | 252.76 | -11.77 | 43.58 | 0.2886 | -1379.1 | 999999 | |
| 5.14 | -2.00 | 2.66 | -2.00 | 13.96 | 252.13 | -12.40 | 44.75 | 0.2974 | -1028.6 | 999999 | |
| 8.48 | -2.00 | 4.39 | -2.00 | 13.66 | 252.12 | -12.42 | 45.54 | 0.2941 | -1066.8 | 999999 | |
| 5.91 | 9.59 | 3.08 | 5.00 | 15.23 | 252.03 | -12.51 | 42.02 | 0.3135 | -1031.4 | -793.4 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 12.66 | 251.80 | -12.74 | 48.85 | 0.2870 | -898.0 | -665.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 15.26 | 251.62 | -12.92 | 42.86 | 0.3185 | -671.0 | -505.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 15.26 | 251.43 | -13.11 | 43.26 | 0.3206 | -691.0 | -534.6 | |
| 0.00 | 3.00 | 0.00 | 1.55 | 12.72 | 251.52 | -13.02 | 49.30 | 0.2912 | -689.0 | -625.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 12.93 | 251.38 | -13.16 | 49.03 | 0.2951 | -396.0 | -320.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 15.08 | 251.13 | -13.41 | 44.31 | 0.3219 | -882.0 | -785.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.95 | 250.98 | -13.56 | 47.26 | 0.3112 | -823.0 | -719.7 | |
| 0.00 | 3.68 | 0.00 | 1.93 | 15.04 | 250.81 | -13.72 | 45.03 | 0.3252 | -884.0 | -656.2 | |
| 0.00 | 4.03 | 0.00 | 2.10 | 14.43 | 250.66 | -13.87 | 46.74 | 0.3202 | -830.0 | -780.8 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 20.15 | 250.09 | -14.45 | 36.68 | 0.3939 | -721.0 | -591.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 14.65 | 250.40 | -14.14 | 46.77 | 0.3257 | -550.0 | -335.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 17.38 | 245.37 | -19.17 | 49.34 | 0.4148 | 982.0 | 819.1 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 19.34 | 243.67 | -20.86 | 48.03 | 0.4539 | 624.0 | 538.1 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 18.77 | 242.30 | -22.23 | 50.73 | 0.4647 | 634.0 | 452.4 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 19.13 | 241.91 | -22.63 | 50.54 | 0.4727 | 821.0 | 687.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 18.76 | 241.66 | -22.88 | 51.49 | 0.4724 | 686.0 | 574.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 18.97 | 241.46 | -23.08 | 51.34 | 0.4767 | 638.0 | 502.9 | |
| 0.00 | 2.66 | 0.00 | 1.52 | 18.85 | 239.45 | -25.08 | 53.67 | 0.5000 | 761.0 | 602.5 | |
| 0.00 | 2.83 | 0.00 | 1.62 | 19.04 | 239.28 | -25.25 | 53.53 | 0.5036 | 617.0 | 536.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
