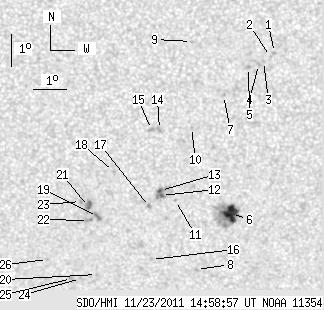

SDO HMI 2011-11-23 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.79 | 96.79 | 8.81 | 50.59 | -16.41 | 266.31 | 2.87 | 188.84 | 0.3202 | 233.4 | 63.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.00 | 268.87 | 5.43 | 201.13 | 0.2580 | 851.0 | 734.4 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -12.13 | 268.75 | 5.31 | 200.54 | 0.2592 | 818.0 | 787.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -12.28 | 268.54 | 5.10 | 199.59 | 0.2604 | 775.0 | 477.7 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.37 | 268.39 | 4.95 | 198.94 | 0.2610 | 856.0 | 694.6 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -12.46 | 268.09 | 4.65 | 197.75 | 0.2609 | 863.0 | 717.0 | |
| 13.79 | 47.36 | 7.24 | 24.85 | -16.97 | 267.66 | 4.22 | 192.31 | 0.3318 | 1209.2 | 473.2 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.31 | 267.34 | 3.90 | 194.21 | 0.2713 | 783.0 | 633.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -18.73 | 266.60 | 3.17 | 188.46 | 0.3571 | 834.0 | 611.2 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -11.66 | 266.35 | 2.91 | 192.01 | 0.2402 | 696.0 | 492.5 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -14.30 | 266.38 | 2.94 | 190.13 | 0.2840 | 845.0 | 655.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.56 | 265.92 | 2.48 | 187.48 | 0.3202 | -734.0 | -470.4 | |
| 1.37 | 7.54 | 0.72 | 3.93 | -16.40 | 265.48 | 2.05 | 186.24 | 0.3167 | -1070.2 | -826.5 | |
| 1.63 | -12.00 | 0.85 | -12.00 | -16.25 | 265.45 | 2.01 | 186.19 | 0.3141 | -1006.5 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.55 | -14.36 | 265.40 | 1.97 | 186.78 | 0.2826 | 919.0 | 570.0 | |
| 0.00 | 2.74 | 0.00 | 1.41 | -14.36 | 265.16 | 1.72 | 185.95 | 0.2821 | 956.0 | 677.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.41 | 265.19 | 1.76 | 184.80 | 0.3493 | 774.0 | 556.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -16.74 | 265.12 | 1.68 | 185.03 | 0.3218 | -920.0 | -792.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -15.65 | 264.00 | 0.56 | 181.80 | 0.3025 | -853.0 | -641.6 | |
| 0.00 | 4.20 | 0.00 | 2.20 | -17.06 | 263.51 | 0.07 | 180.21 | 0.3257 | -1006.0 | -882.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -18.88 | 263.48 | 0.04 | 180.11 | 0.3558 | -660.0 | -530.8 | |
| 0.00 | 6.17 | 0.00 | 3.22 | -16.74 | 263.23 | -0.21 | 179.38 | 0.3206 | -1174.0 | -945.7 | |
| 0.00 | 2.91 | 0.00 | 1.53 | -17.18 | 263.23 | -0.21 | 179.40 | 0.3278 | -953.0 | -822.7 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.59 | 262.98 | -0.45 | 178.63 | 0.3180 | -830.0 | -693.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -19.01 | 262.98 | -0.46 | 178.78 | 0.3580 | -789.0 | -591.9 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -19.01 | 262.70 | -0.74 | 178.04 | 0.3581 | -983.0 | -784.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.41 | 261.95 | -1.49 | 175.94 | 0.3489 | -772.0 | -595.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
