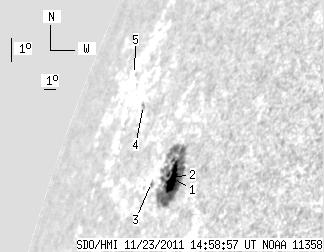

SDO HMI 2011-11-23 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.59 | 103.80 | 22.42 | 151.97 | 19.00 | 193.91 | -69.53 | 70.44 | 0.9413 | -479.6 | -99.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.90 | 100.28 | 21.42 | 145.39 | 18.93 | 194.14 | -69.30 | 70.50 | 0.9402 | -580.2 | -115.7 | |
| 0.69 | -1.00 | 1.00 | -1.00 | 18.95 | 193.85 | -69.59 | 70.50 | 0.9418 | -66.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.87 | 18.75 | 192.34 | -71.09 | 70.84 | 0.9498 | -242.0 | -184.0 | |
| 0.00 | 1.63 | 0.00 | 3.14 | 21.07 | 188.70 | -74.73 | 68.68 | 0.9675 | 494.0 | 441.8 | |
| 0.00 | 0.69 | 0.00 | 1.57 | 21.97 | 186.02 | -77.42 | 67.91 | 0.9778 | 52.0 | 158.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
