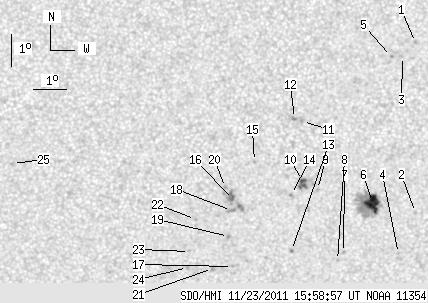

SDO HMI 2011-11-23 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.52 | 99.43 | 8.67 | 52.09 | -16.79 | 265.78 | 2.90 | 188.62 | 0.3274 | 155.4 | -88.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.66 | -12.01 | 268.84 | 5.95 | 202.94 | 0.2614 | 879.0 | 715.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.26 | 268.98 | 6.10 | 197.21 | 0.3443 | 566.0 | 501.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.43 | 268.45 | 5.57 | 200.99 | 0.2656 | 840.0 | 681.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.55 | 268.49 | 5.61 | 194.88 | 0.3623 | 813.0 | 660.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -12.43 | 268.12 | 5.23 | 199.83 | 0.2636 | 953.0 | 772.0 | |
| 14.04 | 45.39 | 7.37 | 23.83 | -16.94 | 267.64 | 4.75 | 193.81 | 0.3333 | 1211.7 | 495.5 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -18.51 | 266.77 | 3.89 | 190.46 | 0.3555 | 885.0 | 610.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.76 | 266.59 | 3.70 | 189.85 | 0.3590 | 924.0 | 636.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.53 | 265.92 | 3.04 | 189.15 | 0.3210 | -631.0 | -499.7 | |
| 2.48 | 10.45 | 1.30 | 5.45 | -16.25 | 265.46 | 2.57 | 187.89 | 0.3152 | -972.6 | -723.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.42 | 265.43 | 2.55 | 188.73 | 0.2850 | 872.0 | 748.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -14.33 | 265.19 | 2.30 | 187.95 | 0.2828 | 826.0 | 716.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.44 | 265.14 | 2.26 | 186.15 | 0.3506 | 780.0 | 690.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -16.69 | 265.12 | 2.24 | 186.71 | 0.3217 | -924.0 | -829.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.66 | 263.97 | 1.09 | 183.48 | 0.3030 | -851.0 | -602.7 | |
| 0.00 | 14.04 | 0.00 | 7.34 | -16.84 | 263.33 | 0.45 | 181.33 | 0.3222 | -1008.0 | -870.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.95 | 263.31 | 0.42 | 181.12 | 0.3569 | -870.0 | -625.6 | |
| 0.00 | 3.17 | 0.00 | 1.66 | -17.18 | 263.27 | 0.38 | 181.13 | 0.3279 | -950.0 | -813.2 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -18.00 | 263.18 | 0.29 | 180.82 | 0.3413 | -936.0 | -691.1 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -16.47 | 263.08 | 0.20 | 180.60 | 0.3159 | -953.0 | -771.2 | |
| 0.00 | 2.40 | 0.00 | 1.27 | -19.01 | 262.68 | -0.21 | 179.45 | 0.3579 | -880.0 | -652.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.47 | 262.15 | -0.73 | 177.89 | 0.3327 | -743.0 | -572.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.47 | 261.96 | -0.92 | 177.48 | 0.3494 | -798.0 | -593.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.98 | 261.90 | -0.99 | 177.38 | 0.3578 | -828.0 | -586.6 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -15.73 | 256.52 | -6.36 | 160.55 | 0.3218 | -710.0 | -609.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
