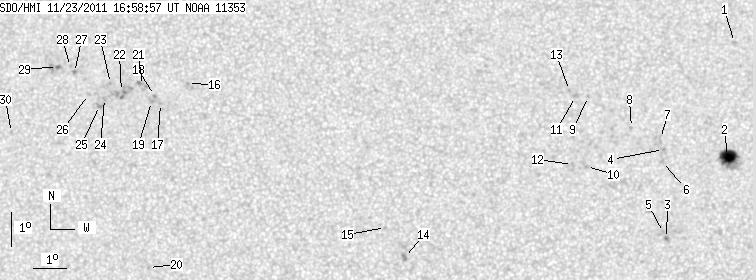

SDO HMI 2011-11-23 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.21 | 96.89 | 8.63 | 49.12 | 8.76 | 257.51 | -4.82 | 197.11 | 0.1955 | -272.4 | 88.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.86 | 11.36 | 267.18 | 4.85 | 333.38 | 0.1856 | -835.0 | -550.5 | |
| 15.93 | 30.40 | 7.96 | 15.19 | 7.96 | 266.92 | 4.59 | 323.32 | 0.1332 | -1221.0 | -625.8 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 5.53 | 265.08 | 2.75 | 323.30 | 0.0802 | -1150.0 | -890.0 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 8.17 | 265.01 | 2.67 | 337.23 | 0.1198 | -1010.0 | -750.2 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 5.71 | 264.99 | 2.66 | 325.48 | 0.0818 | -822.0 | -693.1 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 7.82 | 264.97 | 2.64 | 336.26 | 0.1139 | -987.0 | -755.1 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 8.50 | 264.92 | 2.58 | 338.91 | 0.1245 | -339.0 | -585.4 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.83 | 264.05 | 1.72 | 346.27 | 0.1255 | -813.0 | -634.9 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.75 | 262.77 | 0.43 | 356.90 | 0.1382 | -898.0 | -678.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.67 | 262.70 | 0.37 | 356.38 | 0.1018 | -954.0 | -750.4 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 9.75 | 262.38 | 0.04 | 359.70 | 0.1380 | -1055.0 | -765.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 7.73 | 262.29 | -0.05 | 0.46 | 0.1027 | -946.0 | -729.3 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 9.93 | 262.20 | -0.14 | 0.97 | 0.1411 | -1011.0 | -743.9 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 4.96 | 257.29 | -5.04 | 58.25 | 0.1035 | -1140.0 | -852.8 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 5.85 | 256.72 | -5.62 | 54.41 | 0.1203 | -766.0 | -520.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 10.10 | 250.64 | -11.70 | 54.19 | 0.2473 | 941.0 | 788.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.50 | 249.83 | -12.50 | 57.95 | 0.2531 | 964.0 | 806.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 9.74 | 249.64 | -12.70 | 57.53 | 0.2579 | 1000.0 | 858.5 | |
| 0.00 | 2.31 | 0.00 | 1.18 | 9.56 | 249.55 | -12.78 | 58.30 | 0.2576 | 1004.0 | 780.5 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 4.63 | 249.60 | -12.74 | 77.42 | 0.2262 | 843.0 | 629.4 | |
| 0.00 | 5.31 | 0.00 | 2.73 | 10.04 | 249.25 | -13.08 | 57.31 | 0.2660 | 381.0 | 775.7 | |
| 0.00 | 11.90 | 0.00 | 6.13 | 9.85 | 248.61 | -13.72 | 59.09 | 0.2736 | 834.0 | 869.8 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 10.09 | 248.26 | -14.07 | 58.96 | 0.2806 | 836.0 | 662.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 9.64 | 248.10 | -14.24 | 60.66 | 0.2794 | 846.0 | 747.5 | |
| 0.00 | 4.02 | 0.00 | 2.08 | 9.43 | 247.95 | -14.38 | 61.57 | 0.2799 | 922.0 | 738.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 9.75 | 247.60 | -14.74 | 61.11 | 0.2877 | 698.0 | 472.2 | |
| 0.00 | 1.97 | 0.00 | 1.02 | 10.41 | 247.13 | -15.21 | 59.87 | 0.2996 | 995.0 | 837.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 10.59 | 246.99 | -15.34 | 59.56 | 0.3030 | 839.0 | 653.5 | |
| 1.28 | 7.02 | 0.67 | 3.66 | 10.58 | 246.59 | -15.75 | 60.19 | 0.3088 | 928.0 | 753.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 8.60 | 245.25 | -17.09 | 67.77 | 0.3152 | 741.0 | 616.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
