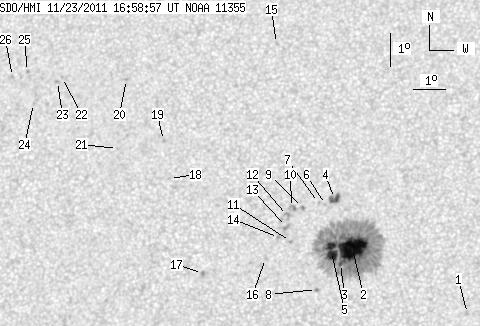

SDO HMI 2011-11-23 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.20 | 339.85 | 30.95 | 175.00 | 14.03 | 252.17 | -10.16 | 38.83 | 0.2733 | -722.9 | -407.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.08 | 11.90 | 256.32 | -6.01 | 30.44 | 0.2033 | -787.0 | -606.6 | |
| 38.36 | 297.64 | 19.70 | 152.88 | 13.84 | 252.73 | -9.60 | 37.89 | 0.2648 | -1410.3 | -449.1 | |
| 1.20 | -2.00 | 0.62 | -2.00 | 13.39 | 252.38 | -9.95 | 40.00 | 0.2627 | -809.5 | 999999 | |
| 6.17 | 6.85 | 3.19 | 3.54 | 15.36 | 252.11 | -10.23 | 36.21 | 0.2912 | -937.9 | -722.4 | |
| 14.47 | -2.00 | 7.44 | -2.00 | 13.75 | 252.09 | -10.24 | 39.91 | 0.2705 | -1103.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 15.17 | 251.83 | -10.50 | 37.31 | 0.2915 | -895.0 | -695.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 15.23 | 251.61 | -10.72 | 37.75 | 0.2945 | -732.0 | -565.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 12.60 | 251.68 | -10.66 | 44.00 | 0.2610 | -965.0 | -819.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 15.08 | 251.12 | -11.21 | 39.32 | 0.2976 | -957.0 | -800.6 | |
| 0.00 | 4.02 | 0.00 | 2.09 | 15.08 | 250.78 | -11.56 | 40.16 | 0.3013 | -527.0 | -669.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 14.05 | 250.80 | -11.53 | 42.49 | 0.2884 | -853.0 | -660.8 | |
| 0.00 | 3.60 | 0.00 | 1.87 | 14.83 | 250.67 | -11.67 | 40.97 | 0.2995 | -831.0 | -685.2 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 14.50 | 250.65 | -11.68 | 41.77 | 0.2955 | -959.0 | -801.1 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 14.16 | 250.42 | -11.91 | 43.12 | 0.2941 | 880.0 | 667.2 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 20.12 | 249.96 | -12.37 | 32.65 | 0.3745 | -740.0 | -571.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 13.53 | 250.05 | -12.28 | 45.55 | 0.2911 | 760.0 | 544.0 | |
| 0.00 | 2.23 | 0.00 | 1.16 | 13.06 | 248.11 | -14.23 | 50.81 | 0.3102 | 1012.0 | 828.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 15.93 | 246.87 | -15.47 | 46.40 | 0.3557 | 788.0 | 588.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.09 | 246.58 | -15.76 | 44.53 | 0.3717 | 852.0 | 704.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 18.96 | 245.20 | -17.14 | 43.33 | 0.4078 | 818.0 | 636.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 16.83 | 245.12 | -17.22 | 47.48 | 0.3860 | 581.0 | 491.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 19.00 | 243.08 | -19.25 | 46.44 | 0.4320 | 728.0 | 662.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 18.88 | 242.93 | -19.40 | 46.88 | 0.4325 | 839.0 | 621.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 18.19 | 242.22 | -20.11 | 49.10 | 0.4341 | 784.0 | 637.2 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 19.18 | 241.90 | -20.44 | 47.75 | 0.4474 | 707.0 | 619.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 19.02 | 241.41 | -20.92 | 48.66 | 0.4515 | 707.0 | 613.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
