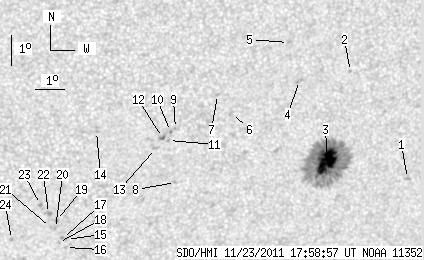

SDO HMI 2011-11-23 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.66 | 191.36 | 14.77 | 113.98 | -24.40 | 283.38 | 21.60 | 217.15 | 0.5567 | 254.9 | 274.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.16 | -25.01 | 287.36 | 25.58 | 221.07 | 0.5979 | 758.0 | 626.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -21.47 | 284.66 | 22.88 | 222.59 | 0.5368 | 646.0 | 479.8 | |
| 24.66 | 157.64 | 14.77 | 94.45 | -24.40 | 284.38 | 22.60 | 218.49 | 0.5645 | 1248.7 | 409.6 | |
| 0.00 | 2.31 | 0.00 | 1.34 | -21.74 | 282.95 | 21.17 | 220.11 | 0.5228 | 682.0 | 662.1 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -20.51 | 282.39 | 20.61 | 221.05 | 0.5041 | 637.0 | 474.8 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -22.78 | 280.79 | 19.01 | 215.87 | 0.5146 | 628.0 | 536.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -22.16 | 280.23 | 18.45 | 215.86 | 0.5023 | 825.0 | 693.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -25.03 | 279.21 | 17.43 | 211.04 | 0.5284 | -539.0 | -451.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -23.25 | 278.96 | 17.18 | 212.68 | 0.5047 | -811.0 | -550.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.35 | 278.80 | 17.02 | 212.34 | 0.5046 | -817.0 | -753.0 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -23.64 | 278.78 | 17.00 | 211.95 | 0.5080 | -612.0 | -530.4 | |
| 0.00 | 3.08 | 0.00 | 1.77 | -23.54 | 278.56 | 16.78 | 211.75 | 0.5050 | -829.0 | -738.5 | |
| 0.00 | 1.88 | 0.00 | 1.08 | -23.90 | 278.37 | 16.59 | 211.06 | 0.5080 | -687.0 | -597.0 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -23.32 | 276.32 | 14.54 | 208.50 | 0.4851 | -850.0 | -618.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -26.91 | 275.74 | 13.96 | 204.12 | 0.5285 | -627.0 | -502.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -27.18 | 275.74 | 13.96 | 203.88 | 0.5321 | -645.0 | -460.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -26.87 | 275.60 | 13.82 | 203.94 | 0.5272 | -923.0 | -723.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -27.01 | 275.48 | 13.70 | 203.64 | 0.5282 | -741.0 | -566.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -26.27 | 275.32 | 13.54 | 204.04 | 0.5174 | -870.0 | -812.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -26.53 | 275.32 | 13.54 | 203.80 | 0.5209 | -750.0 | -629.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.50 | 275.14 | 13.36 | 203.56 | 0.5194 | -733.0 | -564.5 | |
| 0.00 | 2.91 | 0.00 | 1.68 | -26.03 | 275.02 | 13.24 | 203.78 | 0.5124 | -903.0 | -742.3 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -25.72 | 274.71 | 12.93 | 203.56 | 0.5064 | -893.0 | -797.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.89 | 273.86 | 12.08 | 201.23 | 0.5175 | -763.0 | -601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
