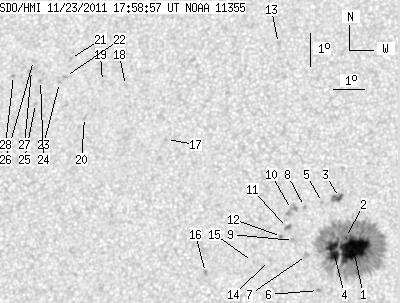

SDO HMI 2011-11-23 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.76 | 343.22 | 29.12 | 176.72 | 14.16 | 251.90 | -9.88 | 37.61 | 0.2720 | -606.0 | -389.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.87 | 292.76 | 19.93 | 150.15 | 13.82 | 252.71 | -9.07 | 36.42 | 0.2591 | -1424.3 | -452.4 | |
| 0.94 | -1.00 | 0.48 | -1.00 | 14.18 | 252.45 | -9.34 | 36.35 | 0.2666 | -805.5 | 999999 | |
| 2.91 | 7.11 | 1.50 | 3.67 | 15.39 | 252.21 | -9.58 | 34.38 | 0.2853 | -933.5 | -832.4 | |
| 14.04 | -1.00 | 7.21 | -1.00 | 13.78 | 252.09 | -9.69 | 38.30 | 0.2650 | -1091.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 15.24 | 251.68 | -10.10 | 36.12 | 0.2883 | -633.0 | -579.9 | |
| 0.00 | 2.06 | 0.00 | 1.05 | 12.57 | 251.68 | -10.10 | 42.57 | 0.2543 | -948.0 | -722.8 | |
| 0.00 | 2.91 | 0.00 | 1.50 | 13.63 | 251.26 | -10.52 | 40.95 | 0.2719 | -780.0 | -539.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 15.11 | 251.13 | -10.65 | 37.84 | 0.2922 | -903.0 | -761.6 | |
| 0.00 | 2.74 | 0.00 | 1.41 | 14.08 | 250.84 | -10.94 | 40.95 | 0.2822 | -764.0 | -547.0 | |
| 0.00 | 7.79 | 0.00 | 4.04 | 15.02 | 250.73 | -11.05 | 39.06 | 0.2952 | -606.0 | -691.1 | |
| 0.00 | 2.83 | 0.00 | 1.46 | 14.47 | 250.63 | -11.15 | 40.54 | 0.2894 | -986.0 | -799.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 14.20 | 250.46 | -11.32 | 41.61 | 0.2879 | 859.0 | 629.8 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.12 | 249.99 | -11.79 | 31.44 | 0.3696 | -860.0 | -639.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 13.47 | 250.12 | -11.66 | 44.23 | 0.2830 | 795.0 | 600.2 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 13.43 | 249.60 | -12.19 | 45.56 | 0.2889 | 655.0 | 656.0 | |
| 0.00 | 2.23 | 0.00 | 1.16 | 13.09 | 248.15 | -13.63 | 49.56 | 0.3030 | 1062.0 | 832.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 17.13 | 246.63 | -15.15 | 43.37 | 0.3653 | 831.0 | 709.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 18.78 | 245.15 | -16.63 | 42.83 | 0.4003 | 867.0 | 649.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.89 | 244.39 | -17.39 | 43.85 | 0.4100 | 815.0 | 557.0 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 17.78 | 243.92 | -17.86 | 46.65 | 0.4035 | 746.0 | 596.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.60 | 243.25 | -18.53 | 44.35 | 0.4301 | 602.0 | 468.9 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 19.04 | 243.15 | -18.63 | 45.48 | 0.4253 | 852.0 | 707.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 18.85 | 242.98 | -18.80 | 46.07 | 0.4254 | 849.0 | 672.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 18.91 | 242.34 | -19.44 | 46.87 | 0.4332 | 814.0 | 676.0 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 18.19 | 242.26 | -19.52 | 48.28 | 0.4271 | 802.0 | 603.9 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 19.52 | 242.03 | -19.75 | 46.22 | 0.4430 | 633.0 | 566.8 | |
| 0.00 | 2.74 | 0.00 | 1.51 | 19.21 | 242.01 | -19.78 | 46.80 | 0.4402 | 605.0 | 569.1 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 19.05 | 241.43 | -20.36 | 47.86 | 0.4453 | 748.0 | 530.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
