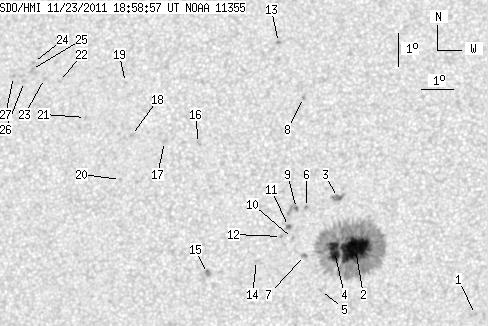

SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.42 | 337.97 | 33.50 | 173.70 | 14.12 | 251.98 | -9.25 | 35.89 | 0.2652 | -698.4 | -361.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.87 | 256.46 | -4.77 | 25.07 | 0.1929 | -898.0 | -742.5 | |
| 47.69 | 289.67 | 24.41 | 148.34 | 13.81 | 252.74 | -8.49 | 34.64 | 0.2533 | -1398.7 | -427.4 | |
| 0.00 | 6.51 | 0.00 | 3.36 | 15.39 | 252.12 | -9.11 | 33.08 | 0.2809 | -954.0 | -876.7 | |
| 16.10 | -2.00 | 8.25 | -2.00 | 13.75 | 252.10 | -9.13 | 36.75 | 0.2589 | -1114.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.57 | 251.71 | -9.52 | 40.90 | 0.2476 | -983.0 | -785.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.08 | 251.17 | -10.06 | 36.35 | 0.2858 | -877.0 | -762.8 | |
| 0.00 | 2.65 | 0.00 | 1.36 | 13.62 | 251.17 | -10.05 | 39.69 | 0.2669 | -889.0 | -678.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.45 | 250.89 | -10.34 | 30.76 | 0.3343 | -832.0 | -680.1 | |
| 1.03 | 6.76 | 0.53 | 3.50 | 15.05 | 250.86 | -10.37 | 37.24 | 0.2885 | -731.9 | -665.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 14.13 | 250.78 | -10.45 | 39.52 | 0.2776 | -784.0 | -561.5 | |
| 0.60 | 2.48 | 0.31 | 1.28 | 14.50 | 250.64 | -10.59 | 39.04 | 0.2837 | -1055.6 | -775.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 14.19 | 250.44 | -10.79 | 40.28 | 0.2821 | 757.0 | 581.3 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 20.15 | 249.98 | -11.25 | 30.22 | 0.3655 | -942.0 | -697.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 13.46 | 249.69 | -11.53 | 43.93 | 0.2815 | 849.0 | 712.2 | |
| 0.00 | 3.08 | 0.00 | 1.60 | 13.06 | 248.19 | -13.04 | 48.40 | 0.2952 | 1003.0 | 886.9 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 17.01 | 247.66 | -13.57 | 40.55 | 0.3467 | 808.0 | 656.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 17.06 | 246.57 | -14.66 | 42.58 | 0.3592 | 866.0 | 662.0 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 17.24 | 245.49 | -15.74 | 44.20 | 0.3732 | 980.0 | 790.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.87 | 245.15 | -16.08 | 41.74 | 0.3954 | 817.0 | 655.2 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 15.89 | 245.25 | -15.97 | 47.37 | 0.3614 | 755.0 | 489.9 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 17.78 | 243.95 | -17.28 | 45.73 | 0.3967 | 806.0 | 642.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 18.88 | 242.98 | -18.24 | 45.19 | 0.4194 | 889.0 | 733.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 18.97 | 242.48 | -18.75 | 45.78 | 0.4260 | 883.0 | 700.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.46 | 242.05 | -19.17 | 45.52 | 0.4359 | 669.0 | 540.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 19.24 | 242.01 | -19.21 | 45.95 | 0.4341 | 708.0 | 689.9 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 18.87 | 241.83 | -19.40 | 46.88 | 0.4324 | 532.0 | 500.1 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 19.02 | 241.44 | -19.78 | 47.14 | 0.4384 | 787.0 | 603.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
