SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.93 | 500.50 | 51.01 | 291.90 | 15.01 | 231.97 | -29.26 | 63.72 | 0.5271 | -482.2 | -192.6 | |
|
previous
or next observation for the same group /

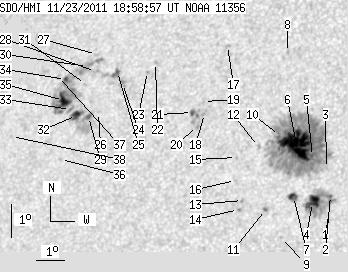

back to the solar disc SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 51.55 | 0.67 | 28.93 | 13.08 | 235.64 | -25.59 | 64.83 | 0.4668 | -537.5 | -383.0 | |
| 0.86 | -1.00 | 0.48 | -1.00 | 13.26 | 235.62 | -25.61 | 64.48 | 0.4682 | 433.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.87 | 14.08 | 235.39 | -25.84 | 63.07 | 0.4762 | -368.0 | -369.1 | |
| 11.73 | -1.00 | 6.60 | -1.00 | 13.04 | 235.03 | -26.20 | 65.36 | 0.4751 | -1027.4 | 999999 | |
| 0.60 | 284.54 | 0.34 | 161.99 | 14.43 | 234.86 | -26.36 | 62.80 | 0.4855 | -1213.3 | -443.3 | |
| 45.90 | -5.00 | 26.14 | -5.00 | 14.82 | 234.27 | -26.96 | 62.55 | 0.4960 | -1253.1 | 999999 | |
| 5.22 | 6.42 | 2.96 | 3.63 | 13.22 | 234.37 | -26.86 | 65.51 | 0.4854 | -900.7 | -683.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 17.59 | 233.53 | -27.69 | 58.19 | 0.5234 | -814.0 | -608.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 11.98 | 234.10 | -27.13 | 68.12 | 0.4827 | 769.0 | 610.2 | |
| 0.34 | -5.00 | 0.20 | -5.00 | 15.05 | 233.65 | -27.58 | 62.59 | 0.5057 | -423.0 | 999999 | |
| 1.28 | 1.80 | 0.73 | 1.02 | 12.81 | 233.46 | -27.77 | 66.92 | 0.4959 | -724.0 | -744.8 | |
| 0.00 | 1.97 | 0.00 | 1.13 | 14.71 | 232.97 | -28.26 | 63.72 | 0.5129 | -684.0 | -434.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 13.07 | 232.63 | -28.60 | 66.96 | 0.5087 | 299.0 | 284.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 12.80 | 232.53 | -28.70 | 67.53 | 0.5088 | 975.0 | 819.8 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 14.37 | 232.25 | -28.98 | 64.83 | 0.5207 | -508.0 | -364.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 13.67 | 232.31 | -28.92 | 66.06 | 0.5162 | -702.0 | -494.6 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 17.78 | 231.37 | -29.86 | 59.58 | 0.5519 | -642.0 | -562.5 | |
| 0.00 | 1.97 | 0.00 | 1.16 | 15.68 | 230.92 | -30.31 | 63.41 | 0.5456 | -770.0 | -733.8 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 16.05 | 230.82 | -30.41 | 62.85 | 0.5488 | -673.0 | -570.6 | |
| 0.00 | 2.74 | 0.00 | 1.62 | 15.32 | 230.73 | -30.50 | 64.16 | 0.5461 | -847.0 | -640.4 | |
| 2.40 | 8.22 | 1.42 | 4.87 | 15.71 | 230.48 | -30.75 | 63.65 | 0.5514 | -659.2 | -679.1 | |
| 0.00 | 1.37 | 0.00 | 0.83 | 17.21 | 228.87 | -32.36 | 62.19 | 0.5803 | -745.0 | -601.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | 16.93 | 228.63 | -32.60 | 62.79 | 0.5818 | -722.0 | -652.5 | |
| 0.00 | 4.28 | 0.00 | 2.62 | 16.55 | 227.78 | -33.45 | 63.90 | 0.5906 | -505.0 | -427.8 | |
| 1.28 | 8.05 | 0.79 | 4.96 | 16.91 | 227.52 | -33.71 | 63.48 | 0.5957 | -700.3 | 55.6 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 15.65 | 227.06 | -34.17 | 65.73 | 0.5955 | 251.0 | 212.3 | |
| 0.00 | 1.37 | 0.00 | 0.85 | 17.42 | 226.63 | -34.60 | 63.19 | 0.6094 | -489.0 | -376.3 | |
| 0.00 | 3.00 | 0.00 | 1.86 | 16.90 | 226.70 | -34.53 | 63.96 | 0.6059 | 547.0 | 408.7 | |
| 2.40 | 30.14 | 1.48 | 18.65 | 15.52 | 226.71 | -34.51 | 66.12 | 0.5993 | 916.2 | 374.2 | |
| 0.00 | 14.73 | 0.00 | 9.19 | 17.05 | 226.37 | -34.86 | 63.91 | 0.6108 | 401.0 | 316.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 16.50 | 226.41 | -34.82 | 64.74 | 0.6077 | 877.0 | 680.4 | |
| 6.42 | -29.00 | 3.99 | -29.00 | 15.55 | 226.26 | -34.97 | 66.31 | 0.6052 | 896.8 | 999999 | |
| 0.00 | 3.51 | 0.00 | 2.19 | 15.72 | 226.00 | -35.23 | 66.16 | 0.6094 | 855.0 | 700.4 | |
| 1.54 | 57.54 | 0.97 | 36.07 | 16.64 | 225.62 | -35.61 | 64.94 | 0.6182 | 922.6 | 592.6 | |
| 6.76 | -34.00 | 4.24 | -34.00 | 15.99 | 225.68 | -35.55 | 65.90 | 0.6146 | 1002.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 14.20 | 225.91 | -35.32 | 68.61 | 0.6042 | 699.0 | 472.4 | |
| 0.00 | 1.88 | 0.00 | 1.19 | 16.72 | 225.33 | -35.89 | 64.95 | 0.6221 | 501.0 | 412.4 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 14.86 | 223.92 | -37.31 | 68.44 | 0.6322 | 671.0 | 552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
