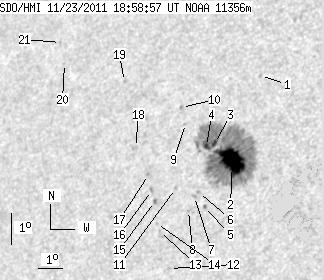

SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.87 | 283.32 | 29.19 | 185.20 | 17.42 | 223.08 | -38.14 | 64.98 | 0.6526 | -556.4 | -264.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-23 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.73 | 20.04 | 223.85 | -37.38 | 60.84 | 0.6555 | 567.0 | 334.5 | |
| 39.05 | 259.88 | 25.33 | 169.33 | 17.39 | 223.43 | -37.79 | 64.87 | 0.6483 | -1173.2 | -326.2 | |
| 1.97 | -2.00 | 1.30 | -2.00 | 17.90 | 222.59 | -38.64 | 64.52 | 0.6605 | -730.3 | 999999 | |
| 2.74 | -2.00 | 1.81 | -2.00 | 17.80 | 222.30 | -38.93 | 64.79 | 0.6636 | -747.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.84 | 15.97 | 222.67 | -38.56 | 67.31 | 0.6519 | -515.0 | -479.3 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 16.39 | 222.33 | -38.90 | 66.83 | 0.6576 | -96.0 | -109.3 | |
| 0.00 | 1.71 | 0.00 | 1.12 | 16.26 | 222.20 | -39.03 | 67.07 | 0.6587 | -510.0 | -230.4 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 15.83 | 222.07 | -39.16 | 67.75 | 0.6588 | 653.0 | 534.4 | |
| 0.00 | 0.69 | 0.00 | 0.46 | 18.50 | 221.26 | -39.97 | 64.27 | 0.6786 | -366.0 | -321.2 | |
| 0.00 | 1.28 | 0.00 | 0.87 | 18.99 | 220.96 | -40.27 | 63.72 | 0.6841 | 504.0 | 515.6 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 16.49 | 221.39 | -39.84 | 67.07 | 0.6694 | 648.0 | 509.8 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 14.06 | 221.70 | -39.53 | 70.51 | 0.6573 | 609.0 | 523.6 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 15.17 | 221.06 | -40.17 | 69.10 | 0.6688 | 488.0 | 380.4 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 15.41 | 220.88 | -40.35 | 68.82 | 0.6717 | 561.0 | 448.3 | |
| 1.11 | 1.71 | 0.75 | 1.15 | 16.08 | 220.64 | -40.59 | 67.95 | 0.6769 | 804.2 | 728.9 | |
| 0.00 | 2.31 | 0.00 | 1.56 | 16.41 | 220.43 | -40.80 | 67.56 | 0.6805 | 783.0 | 670.1 | |
| 0.00 | 1.28 | 0.00 | 0.87 | 16.90 | 220.18 | -41.05 | 66.96 | 0.6851 | 748.0 | 666.9 | |
| 0.00 | 2.48 | 0.00 | 1.71 | 17.72 | 219.42 | -41.81 | 66.12 | 0.6969 | 232.0 | 343.1 | |
| 0.00 | 1.20 | 0.00 | 0.85 | 19.74 | 218.32 | -42.91 | 63.80 | 0.7165 | 605.0 | 482.2 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 20.24 | 215.49 | -45.74 | 64.21 | 0.7486 | 432.0 | 418.7 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 20.89 | 215.05 | -46.18 | 63.54 | 0.7553 | 375.0 | 363.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
